Delta Electronics ASDA-A2 Series User Manual

Chapter 3 Connections and Wiring
3-8 Revision January 2011

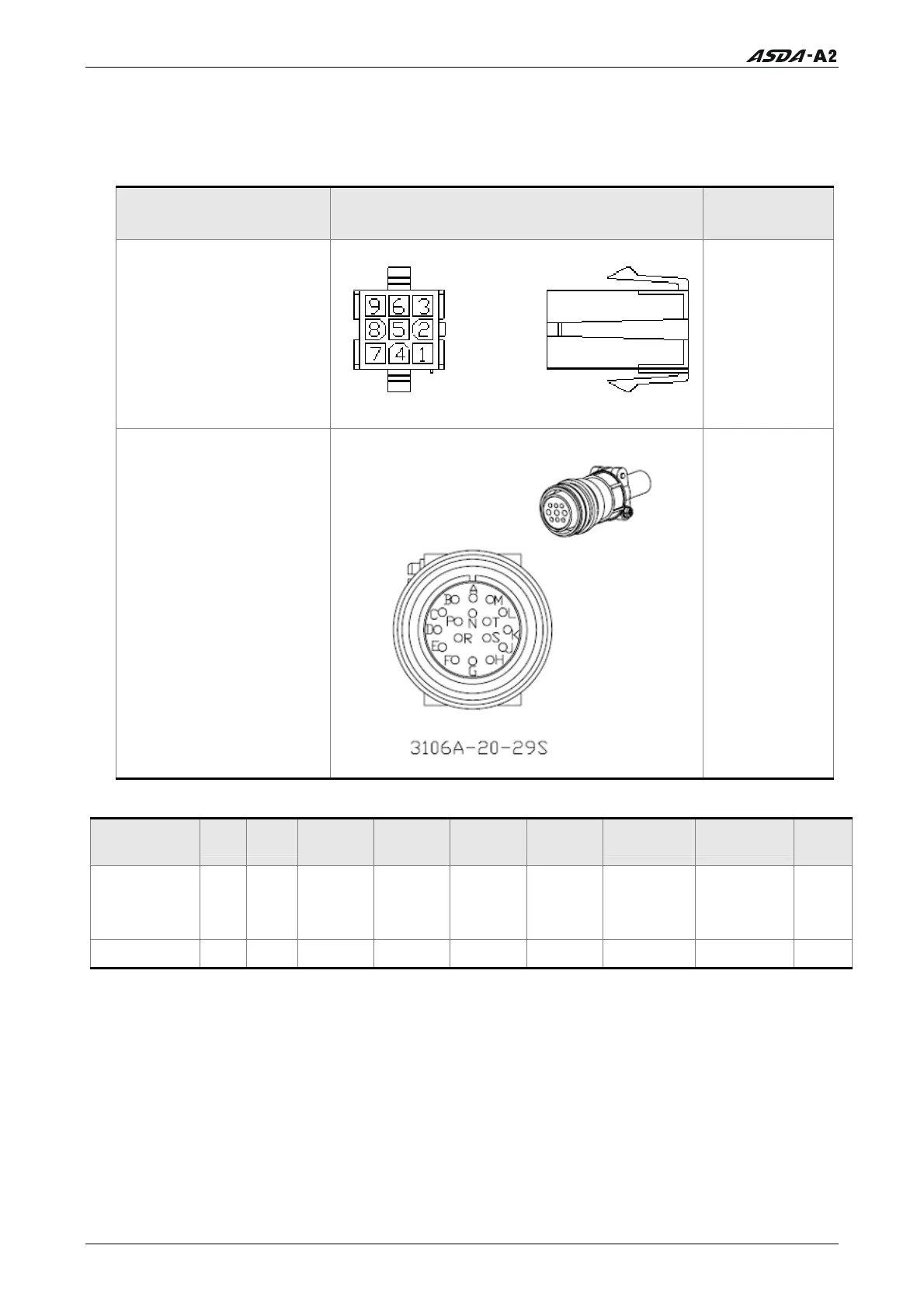

3.1.5 Encoder Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to section
1.2 for model explanation.)
Motor Model Name Encoder Connector
Terminal
Identification
ECMA-C10401S (100W)
ECMA-C10602S (200W)
ECMA-C10604S (400W)
ECMA-C108047 (400W)
ECMA-C10807S (750W)
HOUSING：AMP (1-172161-9)
A
ECMA-G11303S (300W)
ECMA-E11305S (500W)
ECMA-G11306S (600W)
ECMA-G11309S (900W)
ECMA-C11010S (1000W)
ECMA-E11310S (1000W)
ECMA-E11315S (1500W)
ECMA-C11020S (2000W)
ECMA-E11320S (2000W)
ECMA-E11820S (2000W)
ECMA-E11830S (3000W)
ECMA-F11830S (3000W)
ECMA-F11845S (4500W)
ECMA-F118553 (5500W)
ECMA- F118753 (7500W)
B
Terminal
Identification
T+ T-
Reserved Reserved Reserved Reserved
DC+5V GND
BRAID
SHELD
A
1
(Blue)
4
(Blue/
Black)
- - - -
7
(Red &
Red/White)
8
(Black &
Black/White)
9
B A B - - - - S R L
