Delta Electronics ASDA-A2 Series

Chapter 11 Specifications
Revision January 2011 11-29

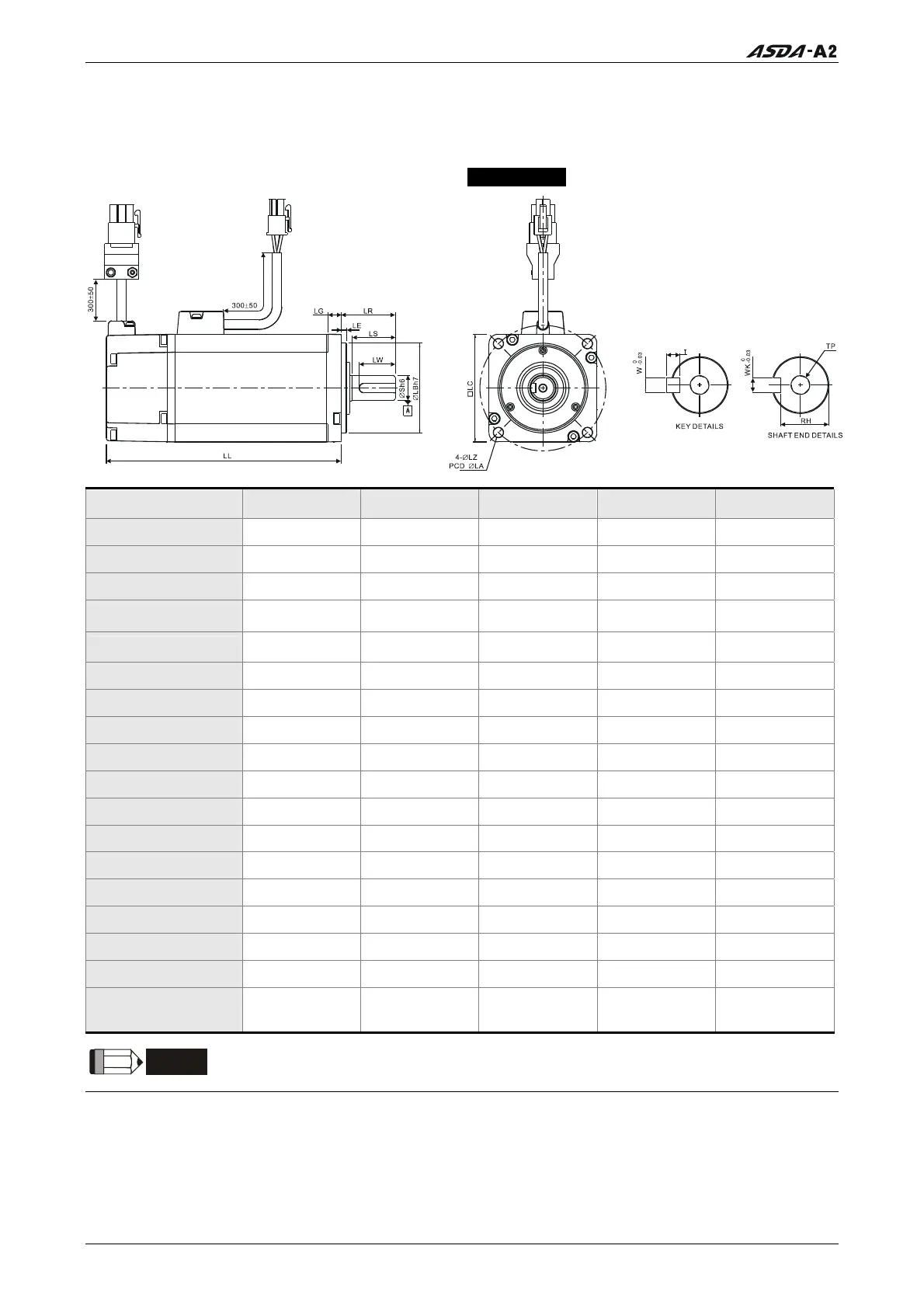

11.6 Dimensions of Servo Motors (ECMA Series)
11.6.1 220V Series
Motor Frame Size: 80mm and below Models - 220V series
Model
C10401□S C10602□S C10604□S C10804□S C10807□S
LC 40 60 60 80 80
LZ 4.5 5.5 5.5 6.6 6.6
LA 46 70 70 90 90
S
)
(
.
8
0
0090


)
(
.
14
0
0110


)
(
.
14
0
0110


)
(
.
14
0
0110


)
(
.
19
0
0130


LB
)
(
.
30
0
0210


)
(
.
50
0
0250


)
(
.
50
0
0250


)
(
.
70
0
0300


)
(
.
70
0
0300


LL (without brake) 100.6 105.5 130.7 112.3 138.3
LL (with brake) 136.6 141.6 166.8 152.8 178
LS (without oil seal) 20 27 27 27 32
LS (with oil seal) 20 24 24 24.5 29.5
LR 25 30 30 30 35
LE 2.5 3 3 3 3
LG 5 7.5 7.5 8 8
LW 16 20 20 20 25
RH 6.2 11 11 11 15.5
WK 3 5 5 5 6
W 3 5 5 5 6
T 3 5 5 5 6
TP
M3
Depth 8
M4
Depth 15
M4
Depth 15
M4
Depth 15
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
