Chapter 11 Specifications
11-30 Revision January 2011

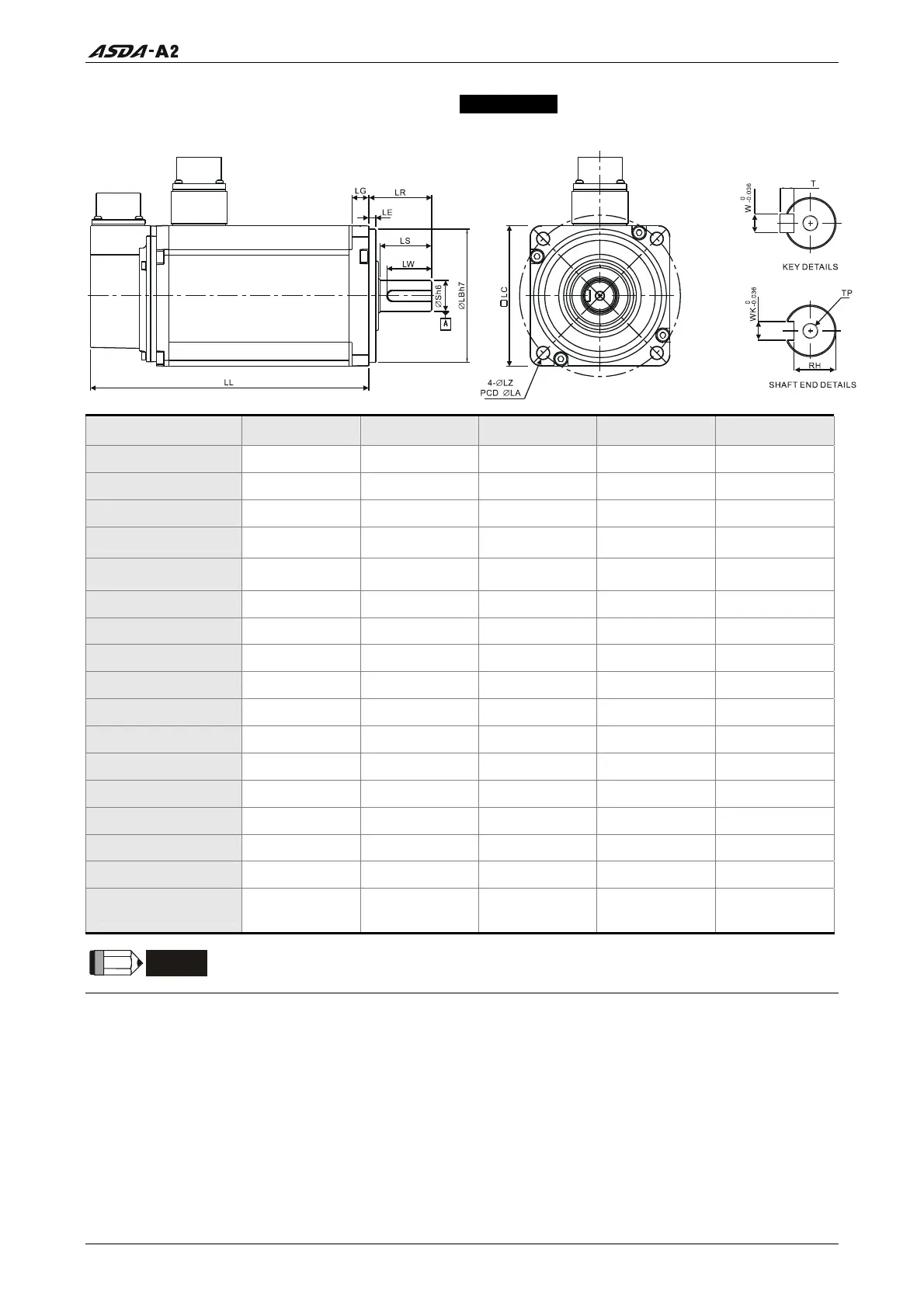

Motor Frame Size: 100mm~130mm Models - 220V series
Model
G11303□S E11305□S G11306□S G11309□S
C11010ES
LC 130 130 130 130 100
LZ 9 9 9 9 9
LA 145 145 145 145 115
S
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
LB
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
95
0
0350
LL (without brake) 147.5 147.5 147.5 163.5 153.3
LL (with brake) 183.5 183.5 183.5 198 192.5
LS 47 47 47 47 37
LR 55 55 55 55 45
LE 6 6 6 6 5
LG 11.5 11.5 11.5 11.5 12
LW 36 36 36 36 32
RH 18 18 18 18 18
WK 8 8 8 8 8
W 8 8 8 8 8
T 7 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
