Chapter 11 Specifications
Revision January 2011 11-31

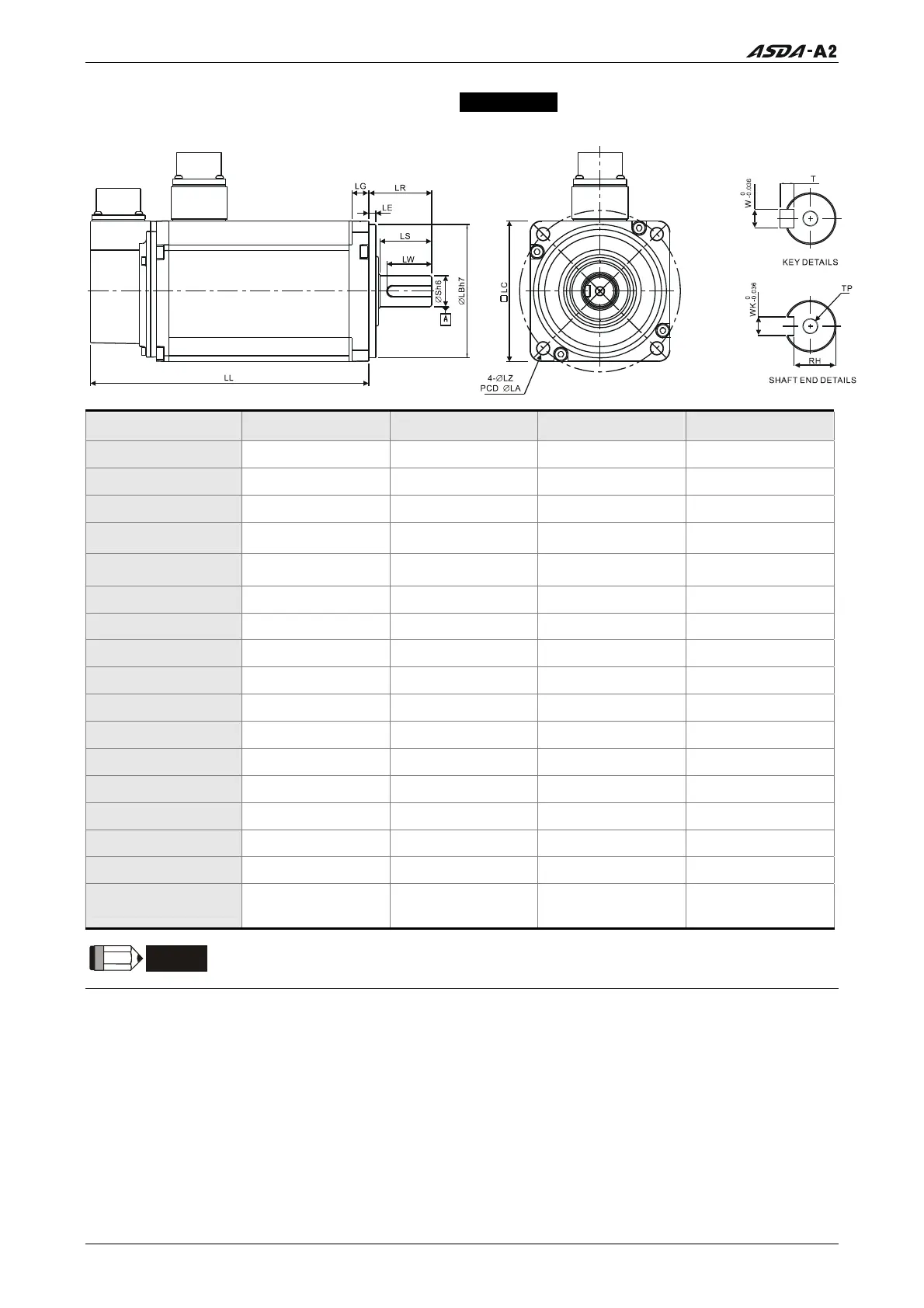

Motor Frame Size: 100mm~130mm Models - 220V series
Model
E11310□S E11315□S C11020□S E11320□S
LC 130 130 100 130
LZ 9 9 9 9
LA 145 145 115 145
S
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
LB
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
95
0
0350
)
(
.
110
0
0350
LL (without brake) 147.5 167.5 199 187.5
LL (with brake) 183.5 202 226 216
LS 47 47 37 47
LR 55 55 45 55
LE 6 6 5 6
LG 11.5 11.5 12 11.5
LW 36 36 32 36
RH 18 18 18 18
WK 8 8 8 8
W 8 8 8 8
T 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
