Chapter 11 Specifications
11-32 Revision January 2011

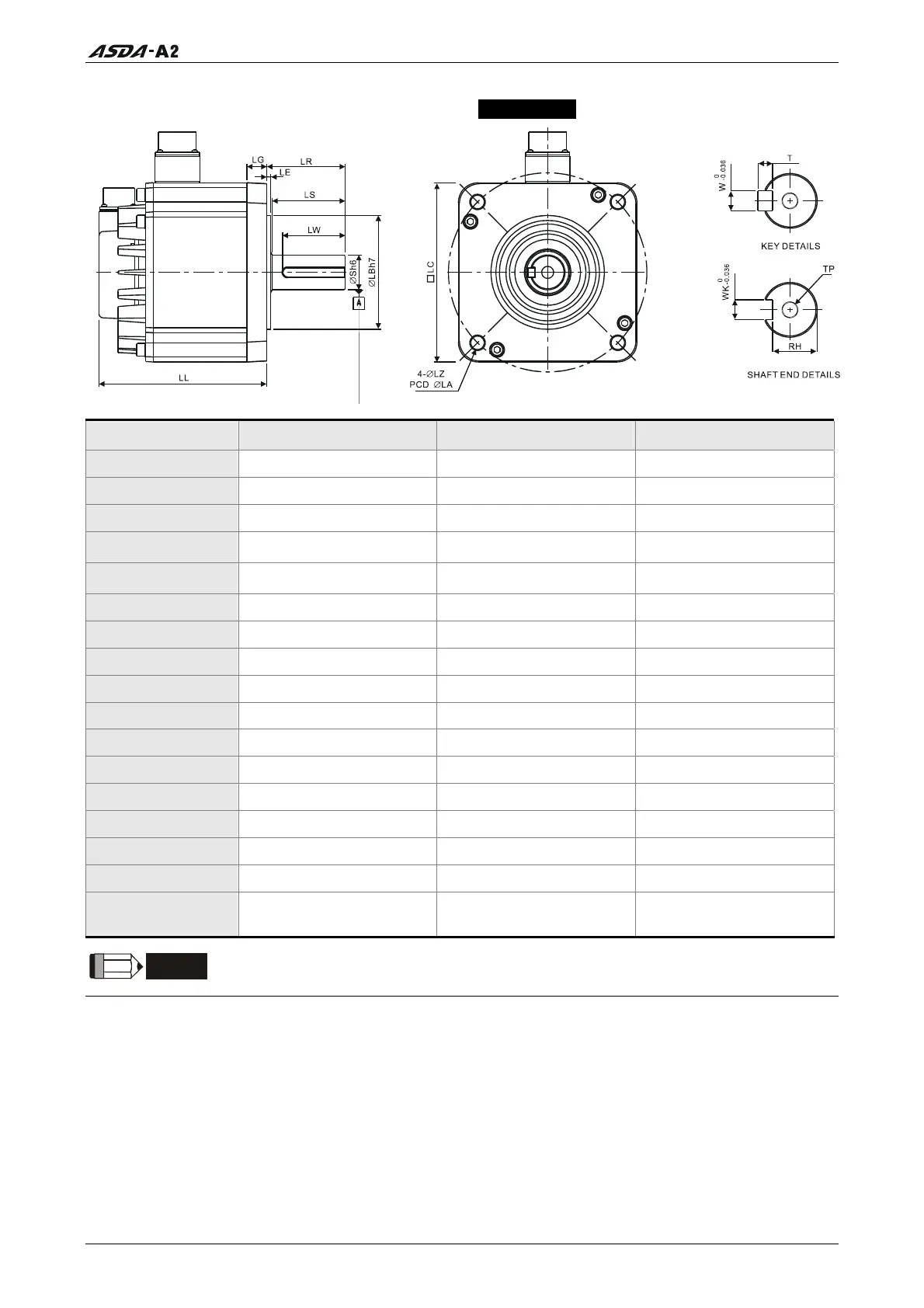

Motor Frame Size: 180mm and above Models - 220V series
Model
E11820□S E11830□S F11830□S
LC 180 180 180
LZ 13.5 13.5 13.5
LA 200 200 200
S
)
(
.
35
0
0160
)
(
.
35
0
0160
)
(
.
35
0
0160
LB
)
(.
.
3114
0
0350
)
(.
.
3114
0
0350
)
(.
.
3114
0
0350
LL (without brake) 169 202.1 202.1
LL (with brake) 203.1 235.3 235.3
LS 73 73 73
LR 79 79 79
LE 4 4 4
LG 20 20 20
LW 63 63 63
RH 30 30 30
WK 10 10 10
W 10 10 10
T 8 8 8
TP
M12
Depth 25
M12
Depth 25
M12
Depth 25
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
