Chapter 11 Specifications
Revision January 2011 11-33

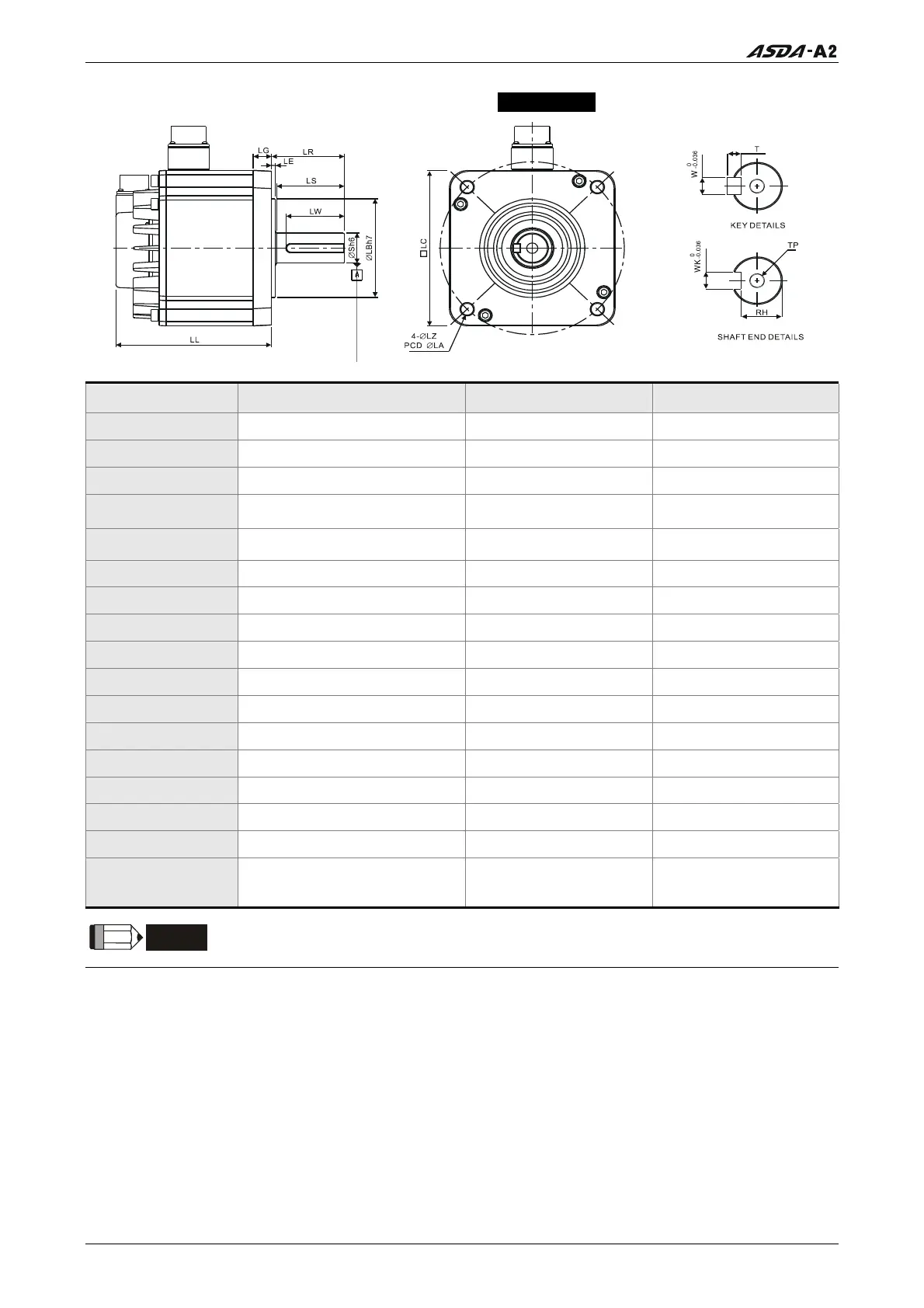

Motor Frame Size: F1845mm and above Models - 220V series
Model
F11845□S F11855□3 F11875□3
LC 180 180 180
LZ 13.5 13.5 13.5
LA 200 200 200
S
)
(
.
35
0
0160
)
(
.
42
0
0160
)
(
.
42
0
0160
LB
)
(.
.
3114
0
0350
)
(.
.
3114
0
0350
)
(.
.
3114
0
0350
LL (without brake) 235.3 279.7 342.0
LL (with brake) 279.3 311.7 376.1
LS 73 108.5 113
LR 79 113 73
LE 4 4 4
LG 20 20 20
LW 63 90 90
RH 30 37 37
WK 10 12 12
W 10 12 12
T 8 8 8
TP
M12
Depth25
M16
Depth32
M16
Depth32
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
