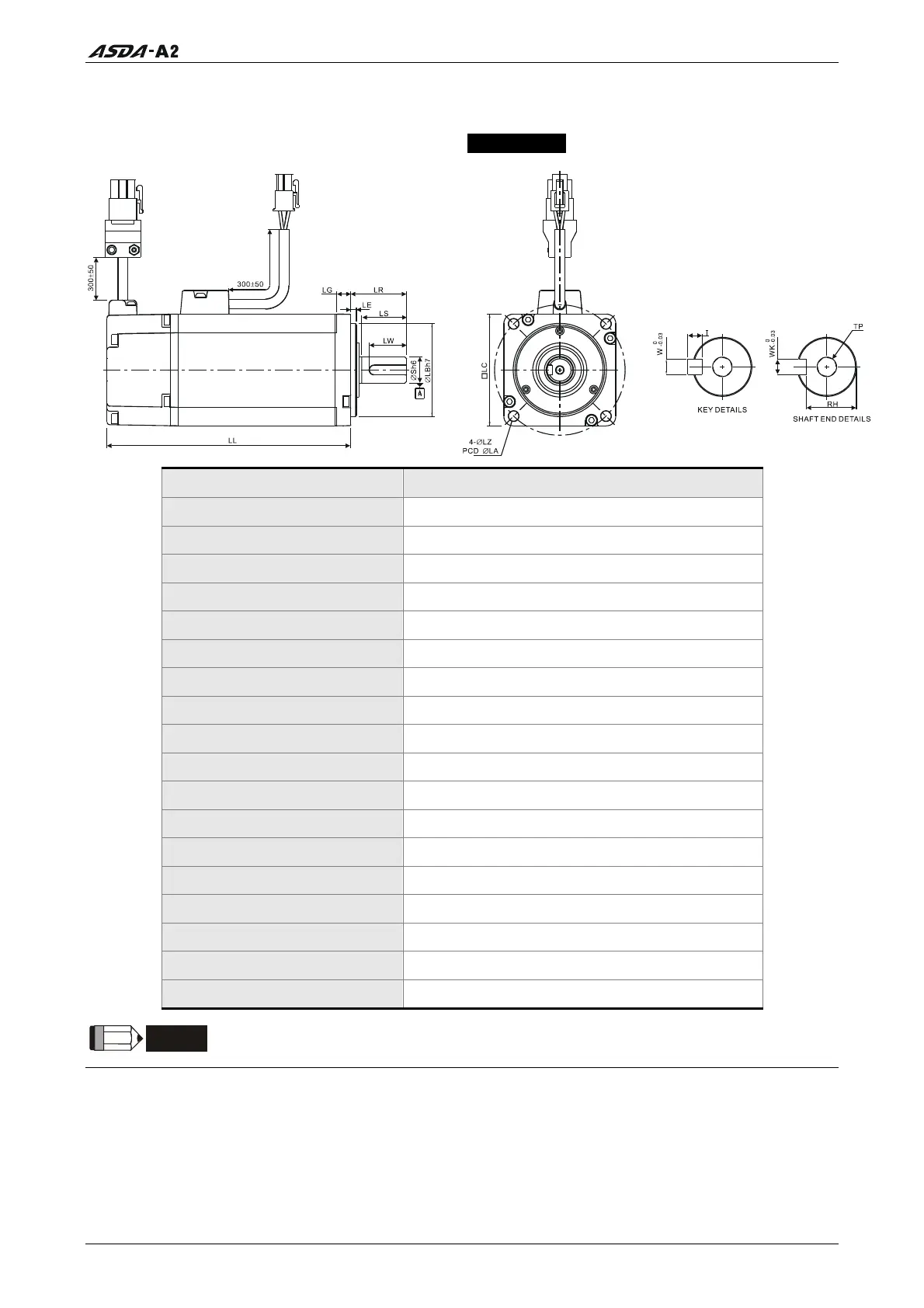

11.6.2 400V Series
Motor Frame Size: 80mm and below Models - 400V series
Model
J10807S
LC 80
LZ 6.6
LA 90
S
)
(
.
19
0
0130
LB
)
(
.
70
0
0300
LL (Without Brake) 138.3
LL (With Brake) 178
LS (Without Oil Seal) 32
LS (With Oil Seal) 29.5
LR 35
LE 3
LG 8
LW 25
RH 15.5
WK 6
W 6
T 6
TP M6, Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
