Chapter 11 Specifications
Revision January 2011 11-35

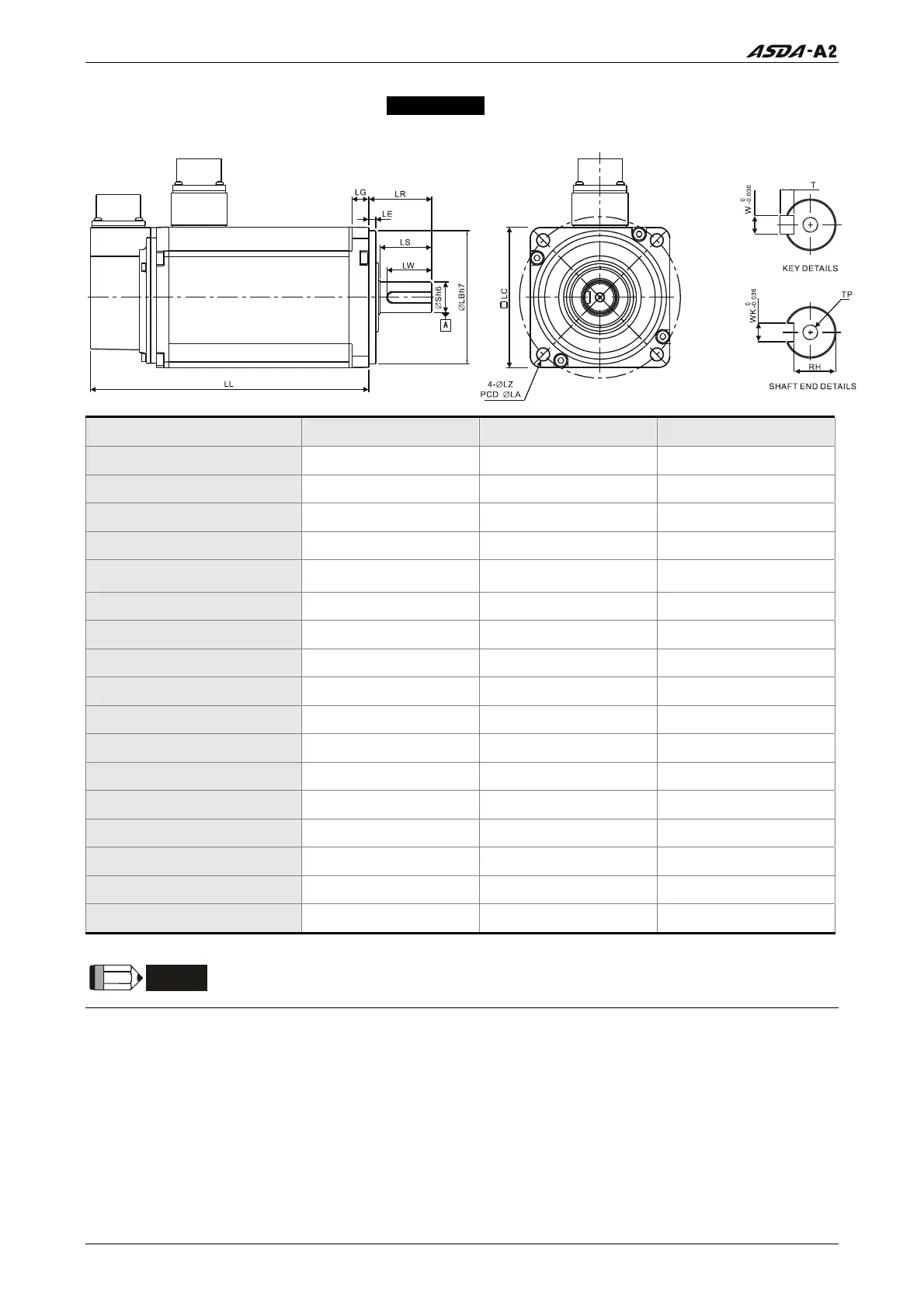

Motor Frame Size: 130mm Models - 400V series
Model
K11310S K11315S K11320S
LC 130 130 130
LZ 9 9 9
LA 145 145 145
S
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
LB
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
110
0
0350
LL (Without Brake) 147.5 167.5 187.5
LL (With Brake) 183.5 202 216
LS 47 47 47
LR 55 55 55
LE 6 6 6
LG 11.5 11.5 11.5
LW 36 36 36
RH 18 18 18
WK 8 8 8
W 8 8 8
T 7 7 7
TP M6, Depth 20 M6, Depth 20 M6, Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
