Delta Electronics ASDA-A2 Series

Chapter 11 Specifications
11-36 Revision January 2011

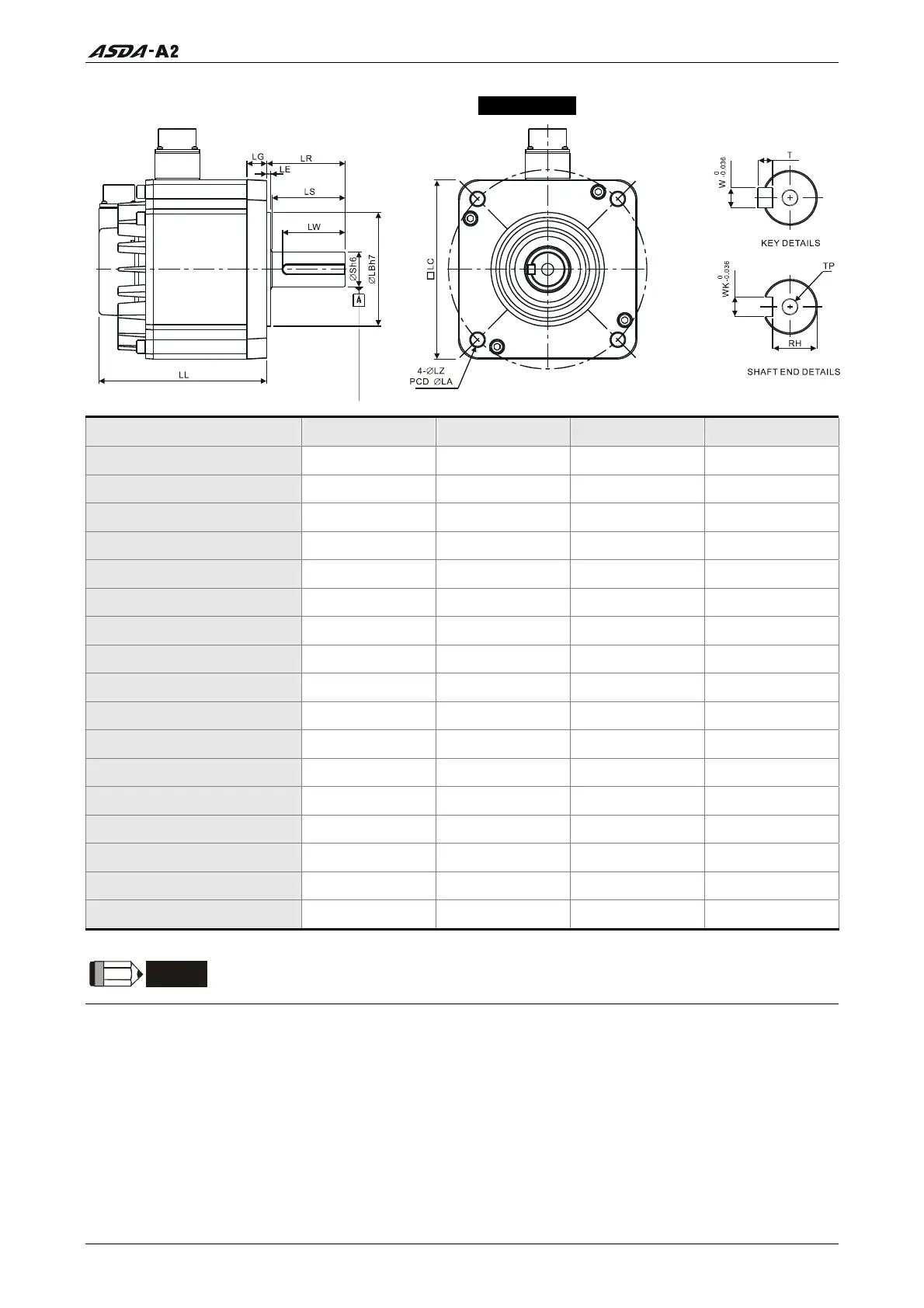

Motor Frame Size: 180mm and above Models - 400V series
Model
L11830S L11845S L118553 L118753
LC 180 180 180 180
LZ 13.5 13.5 13.5 13.5
LA 200 200 200 200
S
)
(
.
35
0
0160


)
(
.
35
0
0160


)
(
.
42
0
0160


)
(
.
42
0
0160


LB
)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


LL (Without Brake) 202.1 235.3 279.7 342.0
LL (With Brake) 235.3 279.3 311.7 376.1
LS 73 73 108.5 108.5
LR 79 79 113 113
LE 4 4 4 4
LG 20 20 20 20
LW 63 63 90 90
RH 30 30 37 37
WK 10 10 12 12
W 10 10 12 12
T 8 8 8 8
TP M12, Depth 25 M12, Depth 25 M16, Depth 32 M16, Depth 32
NOTE
1) Dimensions are in millimeters.
2) Dimensions of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for
model explanation.)
4) Actual measured values are in metric units.
