Chapter 3 Connections and Wiring
3-42 Revision January 2011

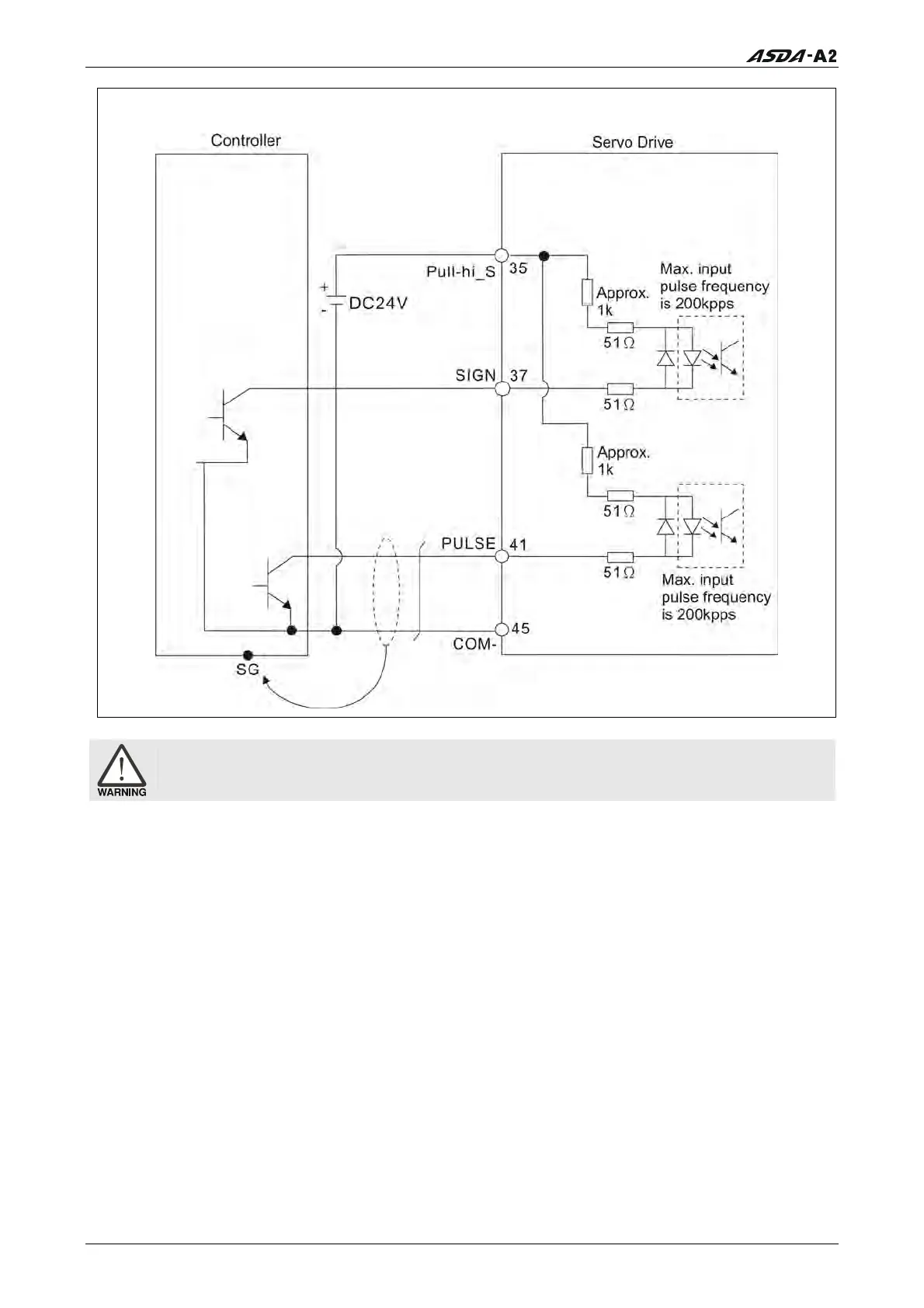

C3-2: Pulse input, for the use of external power supply (Open-collector input)
Caution: Do not use dual power supply. Failure to observe this caution may result in
damage to the servo drive and servo motor.
