Chapter 3 Connections and Wiring
Revision January 2011 3-41
There are two kinds of pulse inputs, Line driver input and Open-collector input. Max.
input pulse frequency of Line-driver input is 500kpps and max. input pulse frequency of
Open-collector input is 200kpps.

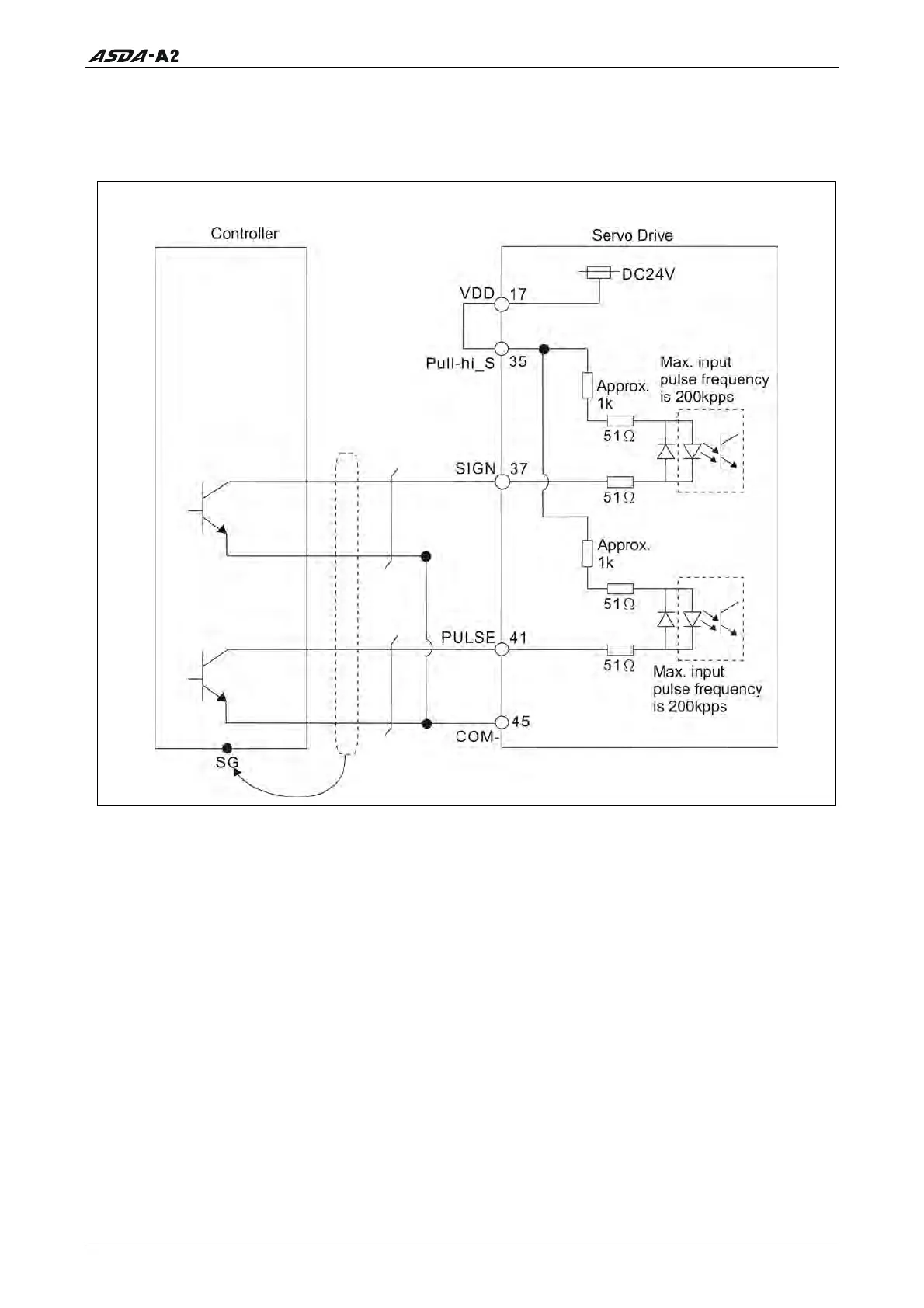

C3-1: Pulse input, for the use of internal power supply (Open-collector input)
