Chapter 3 Connections and Wiring
3-40 Revision January 2011

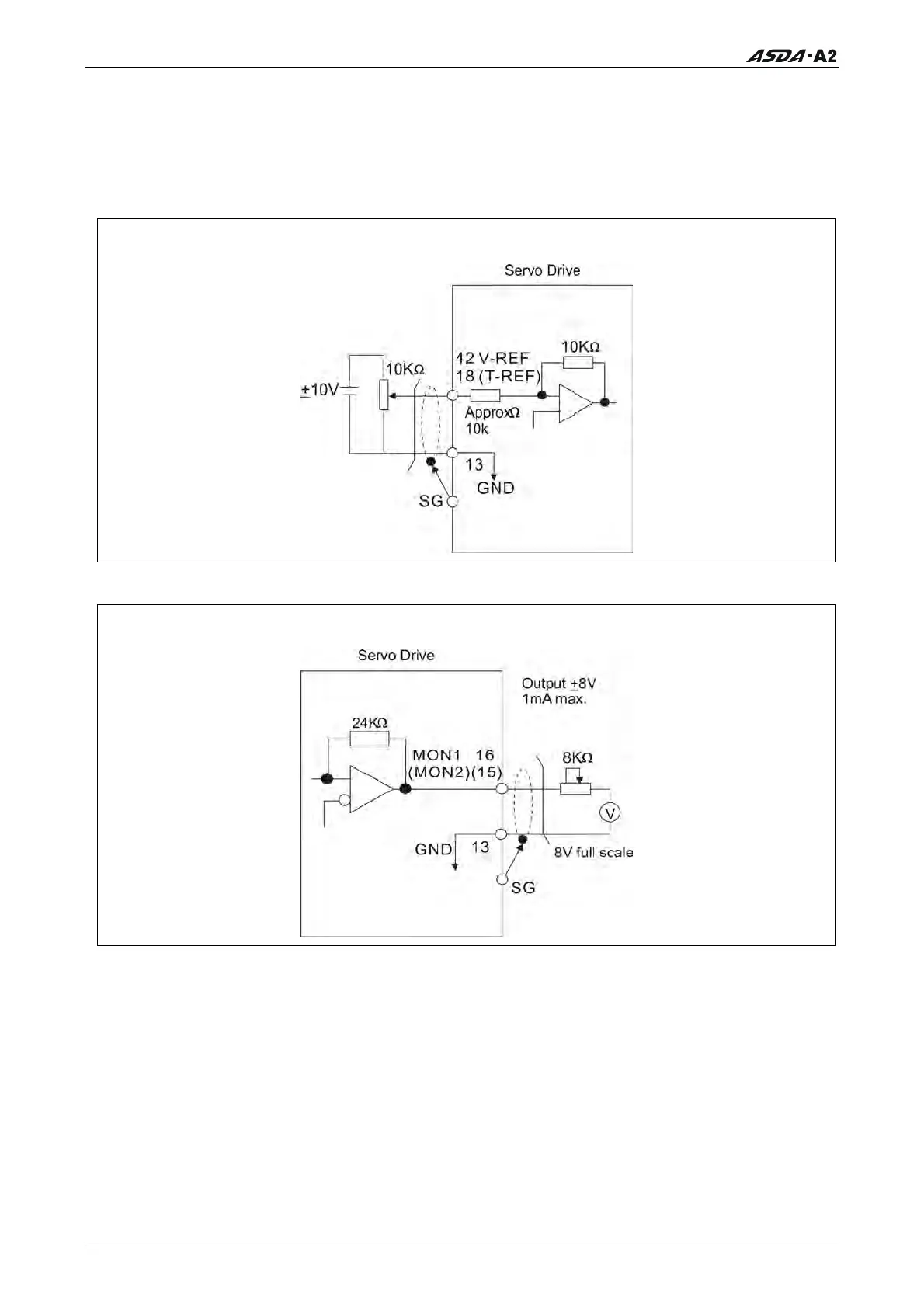

3.3.4 Wiring Diagrams of I/O Signals (CN1)
The valid voltage range of analog input command in speed and torque mode is -10V
~+10V. The command value can be set via relevant parameters. The value of input
impedance is 10k.
C1: Speed / Torque analog signal input
C2: Analog monitor output (MON1, MON2)
