Chapter 3 Connections and Wiring
Revision January 2011 3-49
3.6 Serial Communication Connector CN3
3.6.1 CN3 Terminal Layout and Identification
The servo drive can be connected to a PC or controller via this serial communication
connector CN3. Users can operate the servo drive through PC software supplied by Delta.
The communication connector/port of Delta servo drive can provide two common serial
communication interfaces: RS-232 and RS-485 connection. RS-232 is mostly be used but
is somewhat limited. The maximum cable length for an RS-232 connection is 15 meters
(50 feet). Using RS-485 interface can allow longer distance for transmission and support
multiple drives to be connected simultaneously.

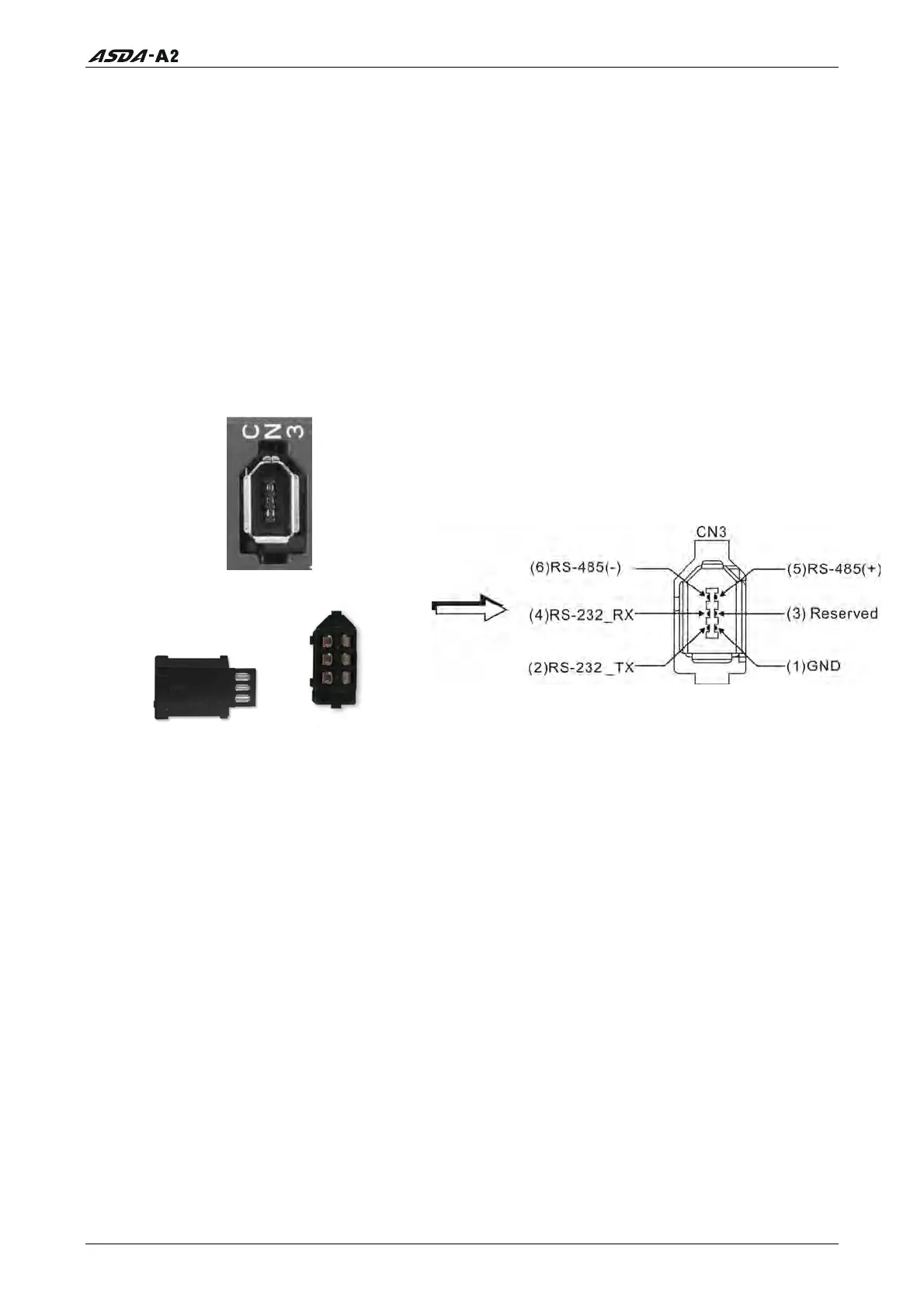

Figure 3.14 The layout of CN3 Drive Connector
CN3 Drive Connector
Side View Rear View
