If not re moved the current sharing will not be pro portional.
Both prog. switches of the slaves should be in the po sition
PRO GRAM.
• The pur pose of the link be tween pin 9 and 11 is to set the volt -
age limit of the slaves at max imum.
• an ex tra link on the slaves (be tween pin 6 and 8) is needed for
the AUTORANGING fea ture.
• Keep the load close to the master. Keep wir ing be tween mas -
ter and slaves short. The voltage drop be tween a unit and the
buss bar should be kept < 10 mV.
• Accidental in terruption of a neg ative load lead of a unit dur ing
op er a tion will cause fuse F600 to blow, see sec tion ‘trouble
shoot ing’.
• The S- and S+ could be connected to the load if de sired, but
this is not rec ommended be cause of the com plexity.
11)
MASTER / SLAVE MIXED SERIES / PAR ALLEL
OP ER A TION
• For complex com binations as mixed se ries - parallel al ways
use the MASTER / SLAVE SERIES ADAPTER
(δ-prod uct).
• See fig. 4 - 14 for an ex ample of how to connect 2 units in se -
ries in par allel with 2 units in se ries, controlled by 1 mas ter.
• On the parallel slave1, fully open the CV-potmeter.
• Note: A Mas ter / Slave combination can al ways be pro -
grammed, also with the IEEE488 / RS232 con trol ler
(PSC-488 mod ule / PSC-232 mod ule
(both δ-prod ucts)).

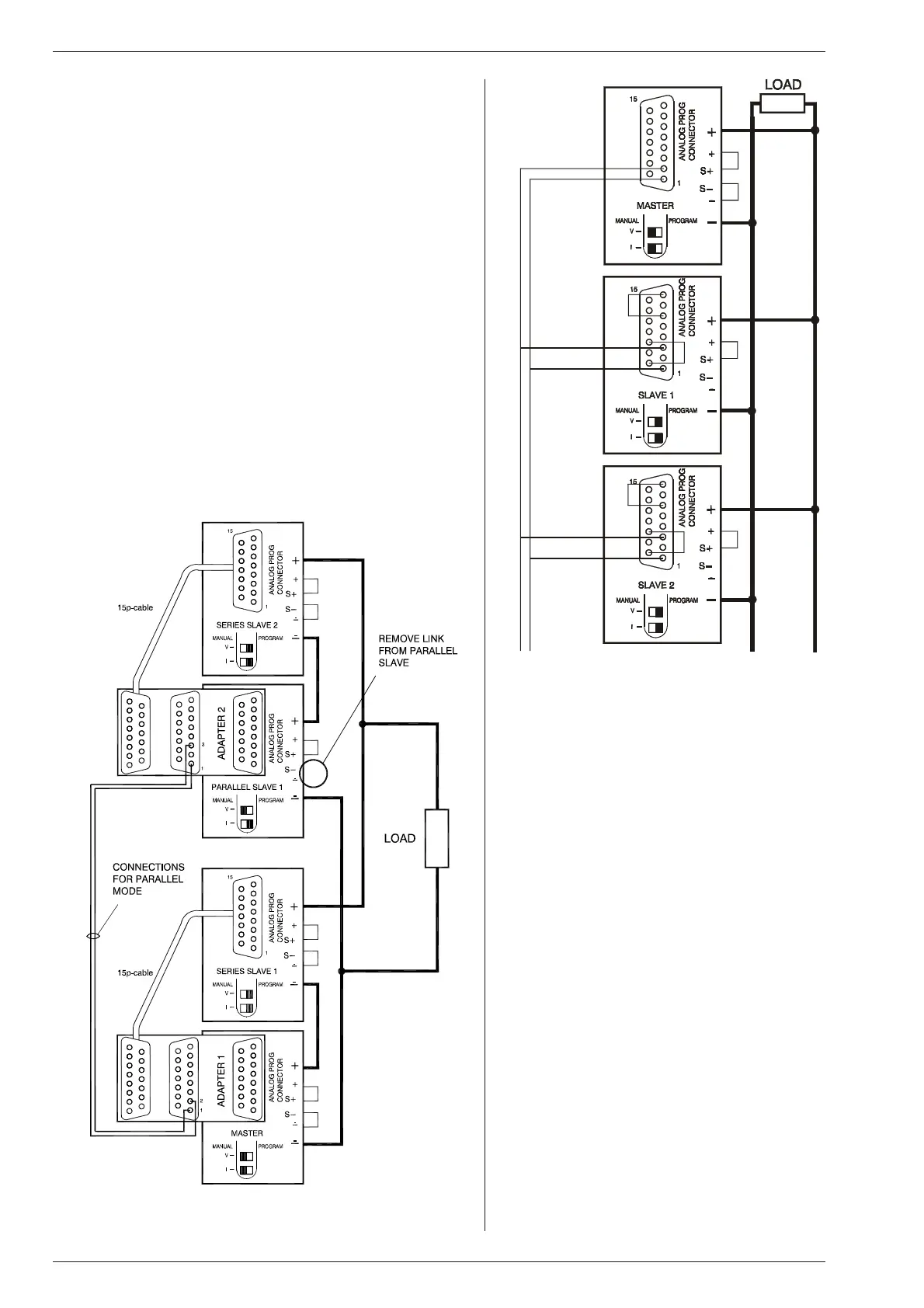

fig. 4 - 13
Master / Slave parallel connections
fig. 4 - 14
Master / Slave mixed series - parallel connections with
two M / S SERIES ADAPTERS
