8. Lift jig assembly (P) Fig. 8, from base (H). Loosen
and remove two button head screws, and lockwashers
(R) from base.
9. Slide base (H) Fig. 9, to the left, until two holes (S)
are aligned with holes in guide bar (G). Fasten base to
guide bar with two button head screws and flat washers
(R) as shown in Fig. 10.
10. Reassemble items that were removed in STEPS 6,
7, and 8 in reverse order. Fig. 11, illustrates the tenoning
jig reassembled for operation on a left tilting arbor saw.

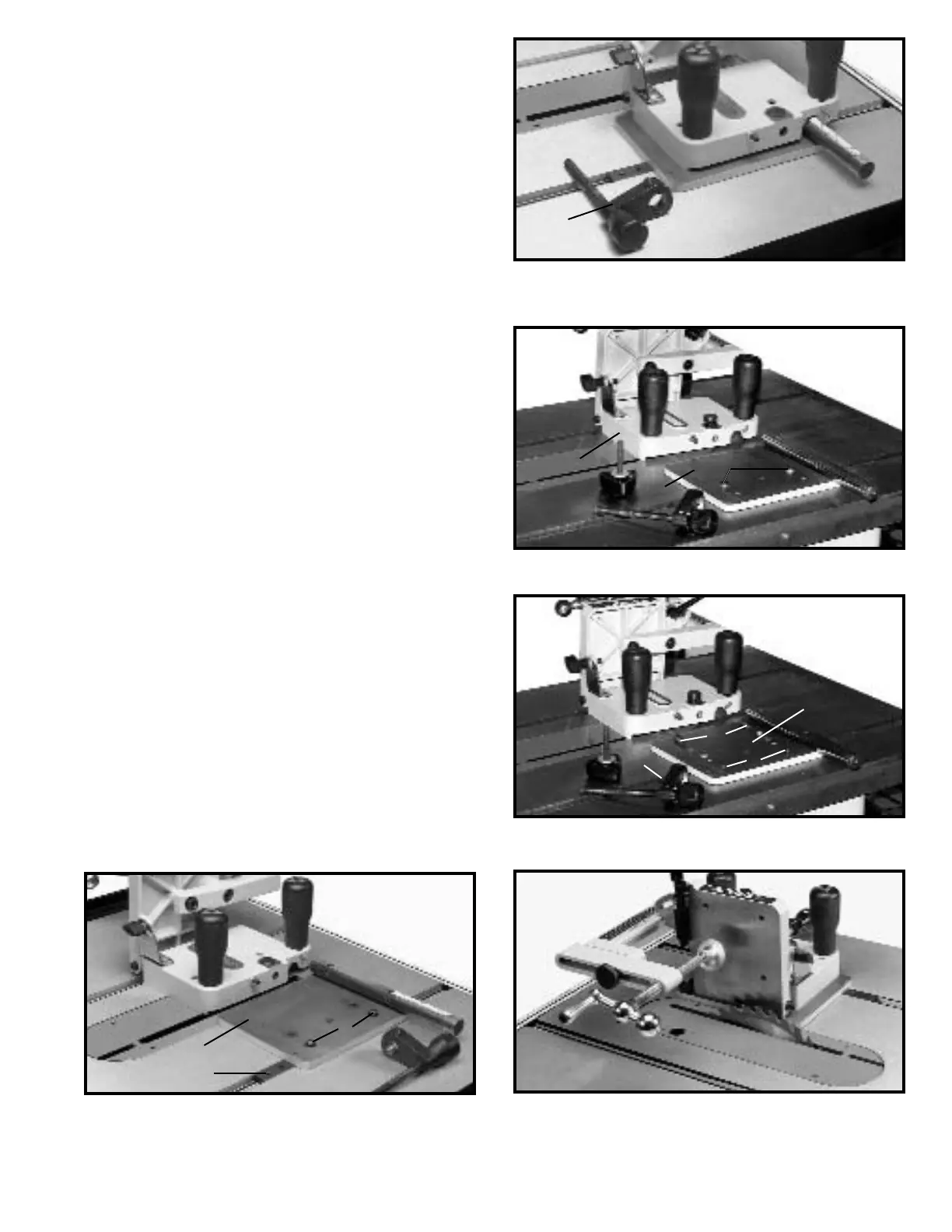

Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 7
N
H
G
R
P
R
H
S
R
G
H
