ASSEMBLY
1. With the edge of the Rear Guide Rail (2) near the
edge of the Left Extension Wing, align the Two Holes
in the table with the Two Holes in the Rear Guide
Rail, as indicated at location “A” in Figure 4.
2. Secure the Rear Guide Rail to the table with
two 5/16” Hex Socket Screws (e), 5/16”
External Tooth Lock Washers (a), and 5/16”
Hex Flange Nuts (b). Finger tighten only.
3. Ensure the Rear Guide Rail is parallel to the
cast iron Table Top by using the rail Alignment
Gauge (g) to check the distance from the top
surface of the Rear Guide Rail to the top of
the table at both sides of the Saw Table.
4. Attach the remaining Hex Socket Screws (e) through
the holes in the Rear Guide Rail and Extension Wings
using External Tooth Lock Washers (a) and Hex
Flange Nuts (b) as needed. Ensure the Extension
Wings are level with the cast iron Table Top.
5. Tighten all hardware securing the Rear
Guide Rail to the Table Top.
1. Fasten the new Extension Wing to the existing wing
using three 5/16” Hex Socket Screws (e), 5/16” External
Tooth Lock Washers (a), and 5/16” Hex Flange Nuts (b).
2. Secure the Front Guide Rail to the new Extension
Wing with 5/16” Countersunk Screws (c).
3. Attach the Rear Guide Rail to the new Extension Wing
using Hex Socket Screws (e), External Tooth Lock
Washers (a), and Hex Flange Nuts (b) as needed.
If your table saw has an extra extension wing that was
removed when you disassembled the old fence rails, re-install
it now.
Length Desired
Plastic Laminate
Table Saw Width
12” Centers
(Approx.)
2-1/4” x 3/4”
Semi-hardwood
5/8” x 3/4”
Particle Board
12” Centers
(Approx.)
(For use with the DELTA
®
36-T50
T3
Fence Kit only)
Due to the extended length of the DELTA
®
36-T50
T3
rails, it is
necessary to build a Wooden Table support to position and
support oversized workpieces.
To build a Wooden Table support, refer to Figure 5.
Accessory Extension Table 36-T53
T3
is available for use with the
36-T50
T3
only.
If you purchased an additional Extension Wing, install it now
using the hardware included with the fence.
ATTACH REAR GUIDE RAIL
RE-ATTACHING AN EXISTING
EXTENSION WING
ATTACHING AN ADDITIONAL
EXTENSION WING
CONSTRUCTING AND
ATTACHING A WOODEN TABLE
SUPPORT
2
g
A

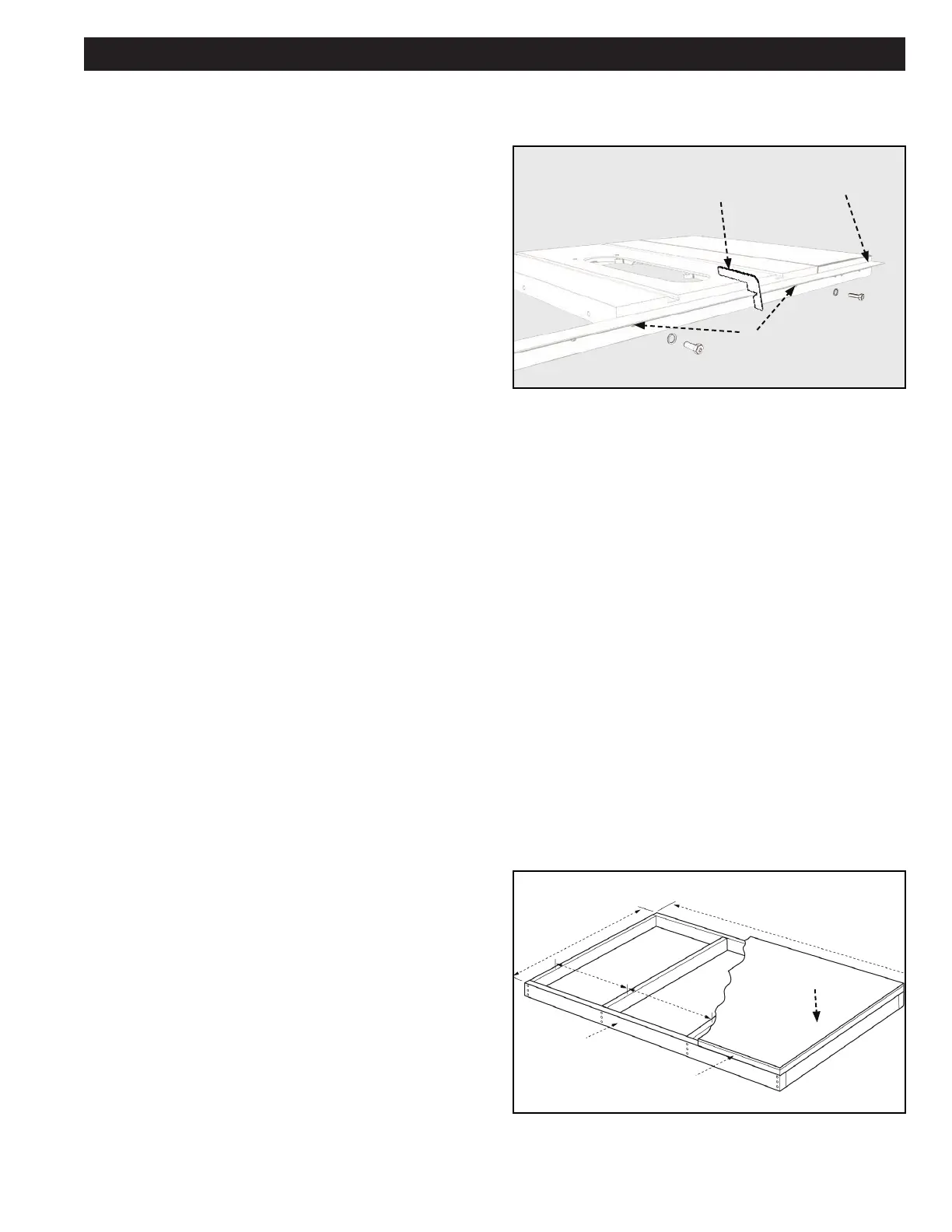

FIGURE 4
FIGURE 5
