2.10 Electrical Wiring
Note: The entire indoor unit shall have the uniform power supply.
Ɣ
About the electrical wiring, please see the circuit diagram attached to the unit.
Ɣ
All electrical wiring shall be done by professional personnel.
Ɣ
Please do take the earthing treatment.
Ɣ

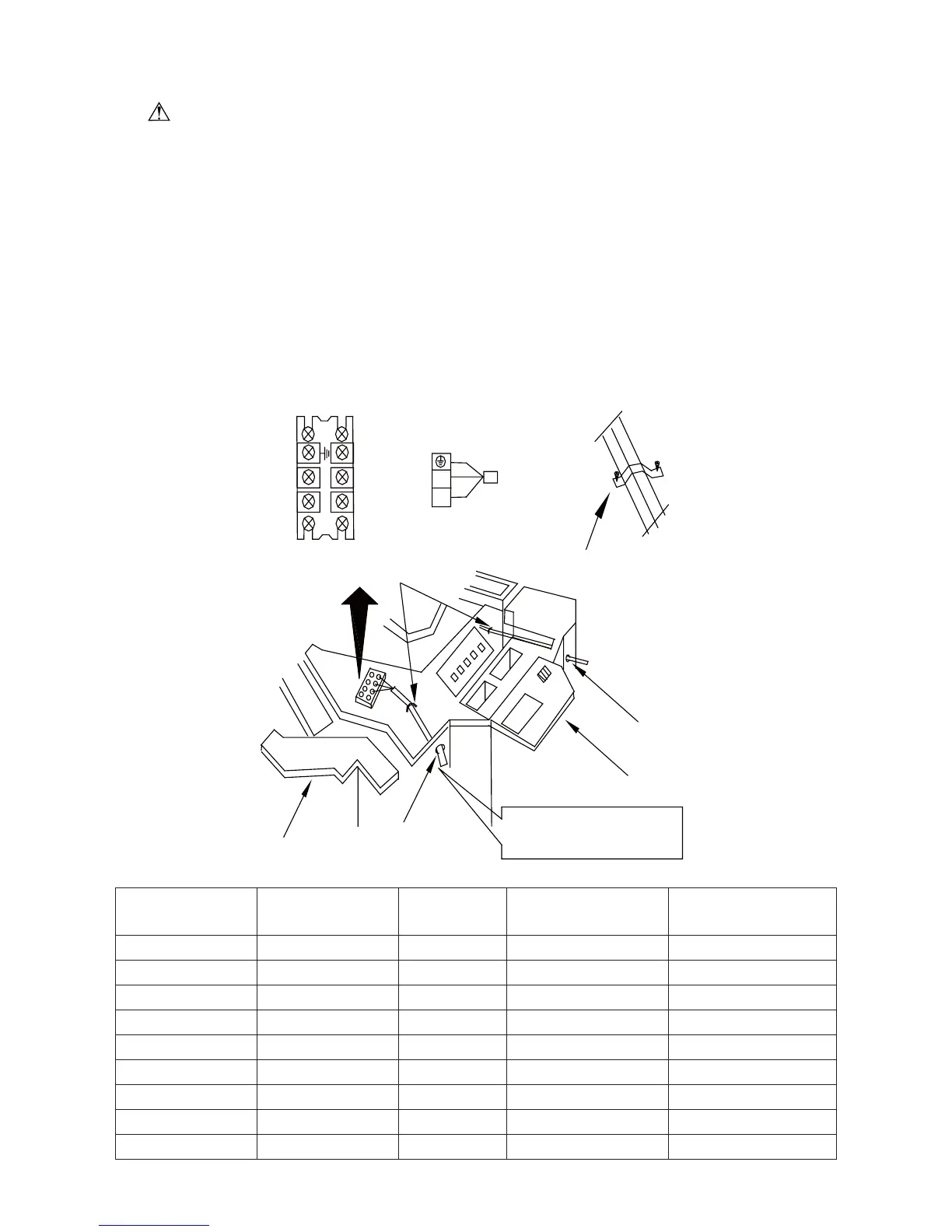

Wiring method of the unit and the controller
Ɣ
Connection wiring (communication):
ķ
Open the electric box cover(1), drag the wiring (communication)from the rubber plug A, and
secure them well individually by fasteners.
ĸ
Wiring according to the indoor side circuit diagram.
Ɣ
Fix the fasteners after connection.
Ɣ
Wrap the small-sized sponge on the electric wire ( do entwine it to prevent condensation).
Ɣ
6HFXUHWKHHOHFWULFZLUHE\IDVWHQHUVDIWHUFRQQHFWLRQDQGWKHQ¿WWKHPRQWKHHOHFWULFER[
and (2).
Ɣ
Connect the 3-wire rubber-covered cable to the corresponding terminal on the terminal board.
Cable-cross loop
Electric box cover
˄1˅
Do seal here to prevent
water inleakage from here
Electric box cover˄2˅
3 core rubber wire
N
L
Cable-cross loop
N
power supply
3 core rubber wire
3 way terminal board
Impact fastener
L
(1). Power Cord Size and Air Switch Capacity
Model Power Supply
Air Switch
Capacity (A)
Minimum Sectional Area
of Ground Wire (mm
2
)
Minimum Sectional Area
of Power Cord (mm
2
)
80CS010J24 208-230V ~60Hz 6 1.0 1.0
80CS013J24 208-230V ~60Hz 6 1.0 1.0
80CS016J24 208-230V ~60Hz 6 1.0 1.0
80CS020J24 208-230V ~60Hz 6 1.0 1.0
80CS025J24 208-230V ~60Hz 6 1.0 1.0
80CS032J24 208-230V ~60Hz 6 1.0 1.0
80CS040J24 208-230V ~60Hz 6 1.0 1.0
80CS044J24 208-230V ~60Hz 6 1.0 1.0
80CS048J24 208-230V ~60Hz 6 1.0 1.0
