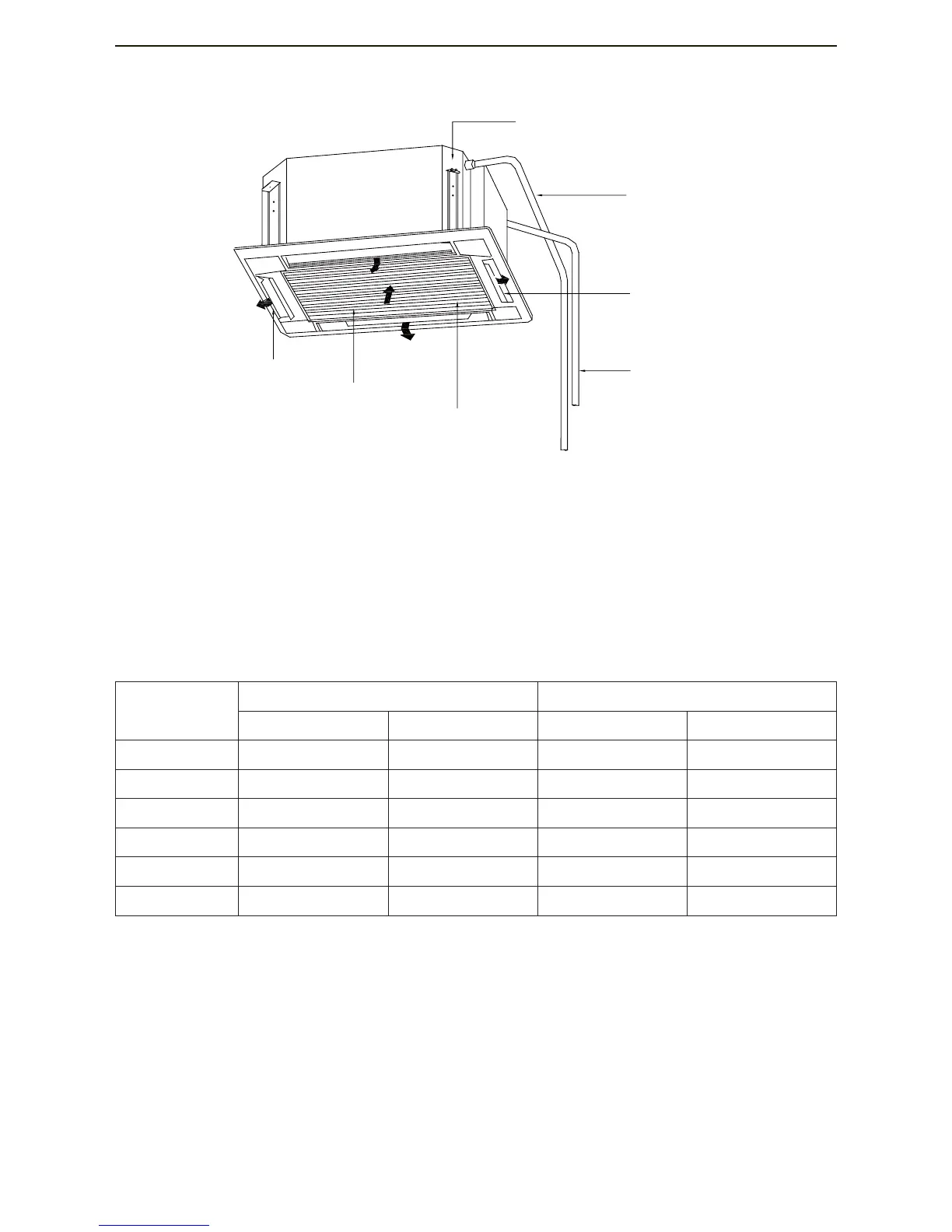

3 Structure and Part Name of the Cassette Type Indoor Unit
Air inlet grille
Air filter, purifier (in
air inlet grille )
Air outlet vent
Guide louver
(placed in air
outlet vent)
Connecting pipe
Drainage
hose
Drainage equipment (inside type)
Discharge condensate water from
indoor unit when cooling
4 Working Temperature Range
Working Temperature Range
Indoor side state Outdoor side state
Dry bulb temp.°C Wet bulb temp. °C Dry bulb temp. °C Wet bulb temp.°C
Rated cooling 27 19 35 24
Max. cooling 32 23 43 26
Min. cooling 21 15 18 —
Rated heating 20 15 7 6
Max. heating 27 — 24 18
Min. heating 20 15 -15 -16
80CS010J24
80CS013J24
80CS016J24
80CS020J24
80CS025J24
80CS032J24
80CS040J24
80CS044J24
80CS048J24
