Chapter 9 Serial Communication Module AS00SCM
9- 63

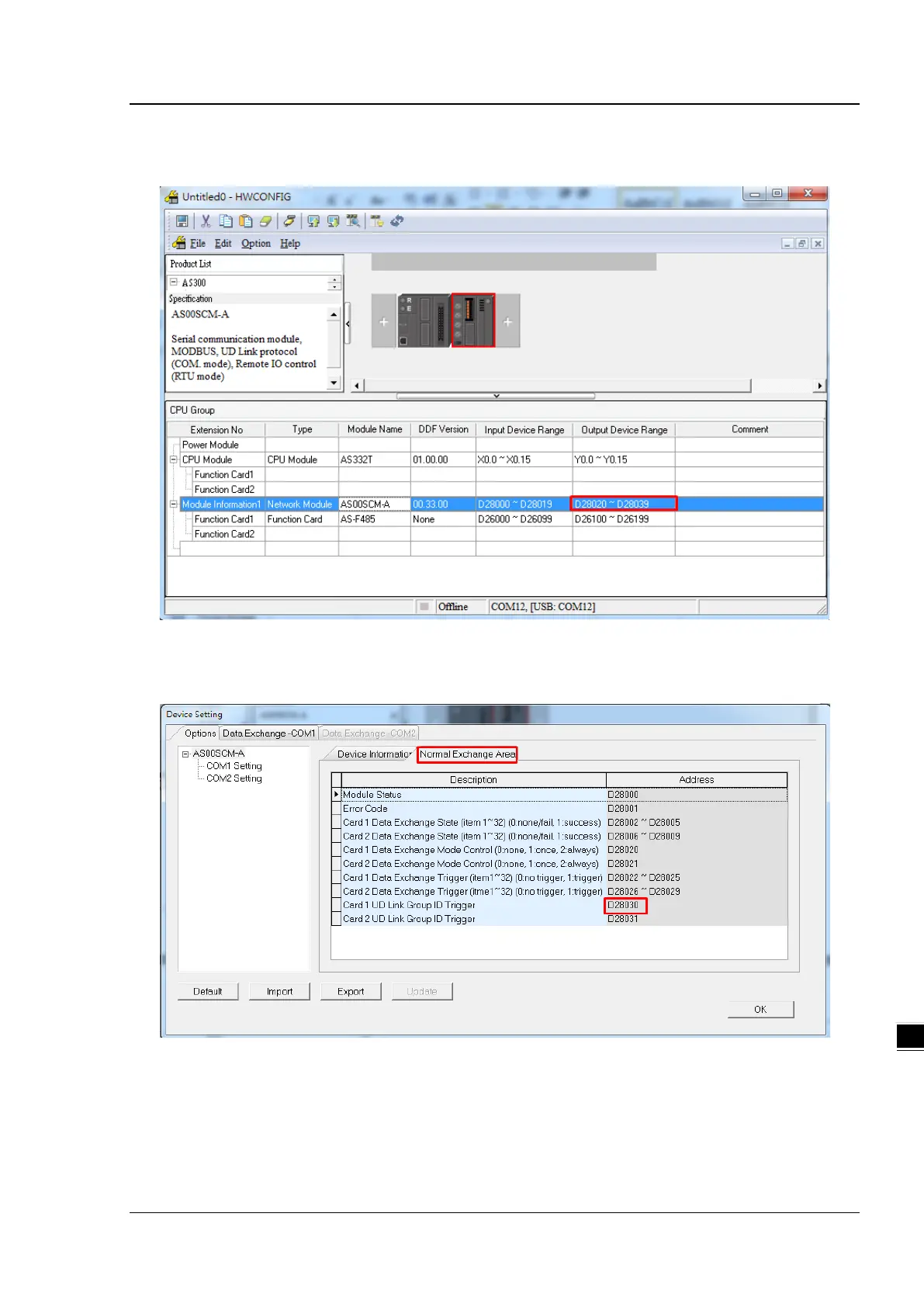

26) Set up the devices for the UD Link Group ID Trigger in HWCONFIG. Once you create the AS00SCM-A module,
the system automatically assigns the corresponding addresses.
27) Double-click AS00SCM-A to open the Device Setting page. Verify that the Card 1 UD Link Group ID Trigger is set
to D28030. Use ISPSoft to enter 1 into register D28030 to start the data exchange.
