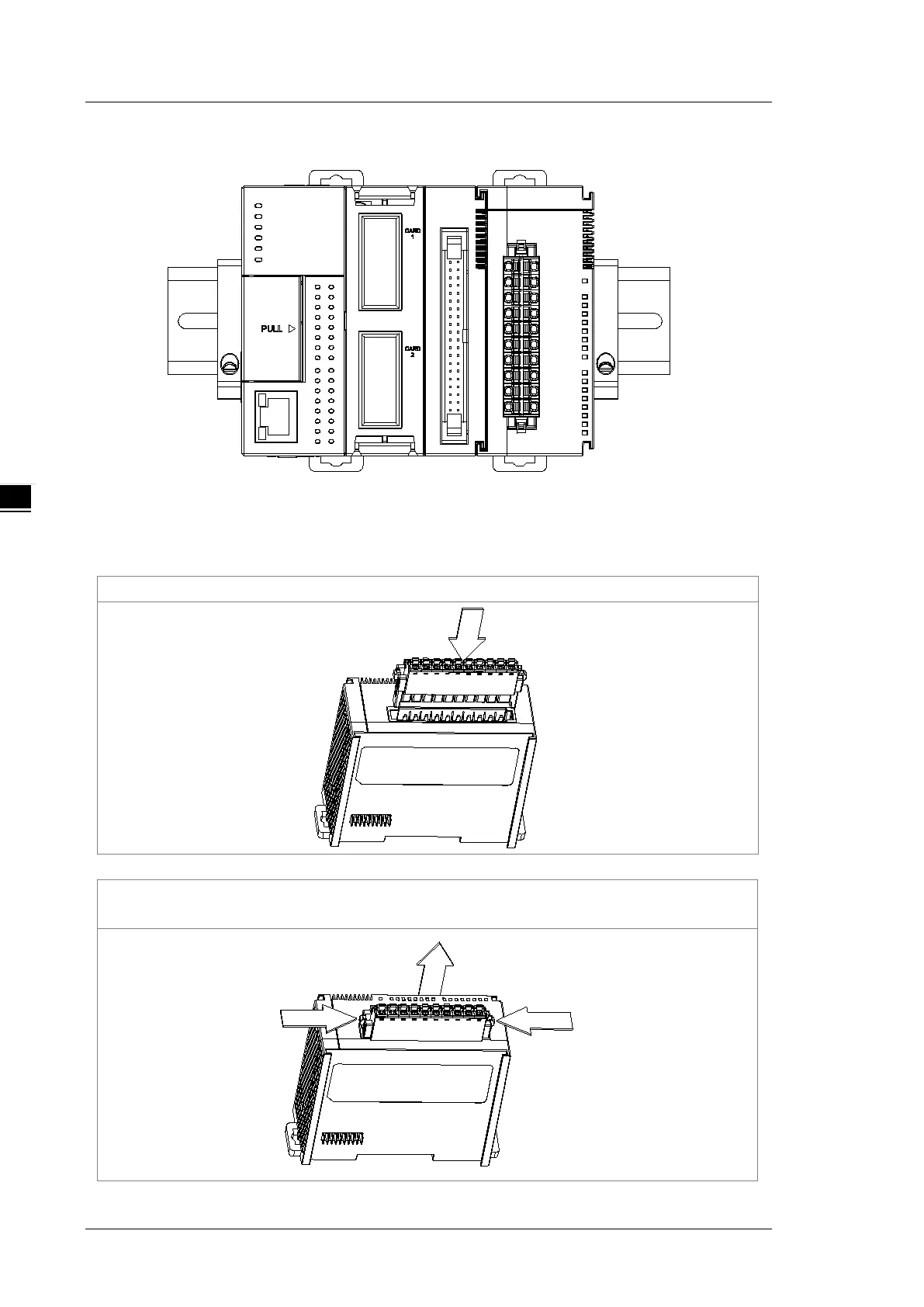

 The completed baffle installation is shown below.
4.1.2 Installing a Removable Terminal Block
Install the removable terminal block on the module as shown below.

Installation
1. Align the terminal block at the printed circuit board, and press it into the module.

Removal
1. Pull the clips down in the direction shown by the arrow, and then pull the terminal block up
as shown below.
