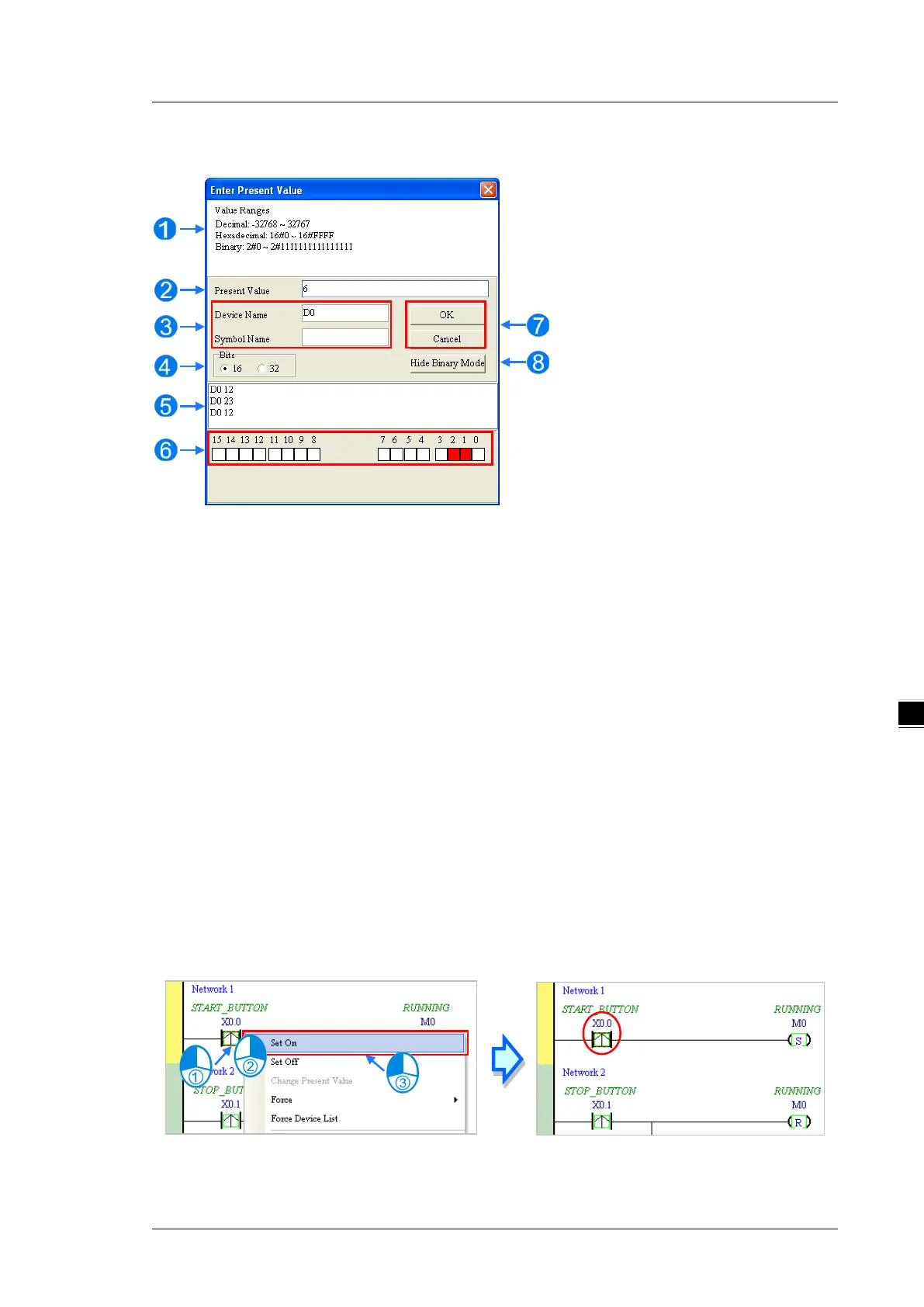

The list below describes the Enter Present Value dialog box.
Message
Type a value in the Present Value box.
Type the name of a device or a symbol whose present value you want to change
Type a 16-bit or 32-bit value.
Value change history (Format: Device name Value)
In binary mode, use the mouse to set the bit states.
Click OK to apply the setting values. Click Cancel to close the window without applying the values.
Display or hide binary mode.
In this example, X0.0–X0.15 and Y0.0–Y0.15 are input and output devices assigned to the digital I/O module
AS332T-A. After you download the hardware parameters to the CPU module, the states of X0.0–X0.15 are the
same as the states of the inputs on the actual module. Even if you set X0.0–X0.15 to ON or OFF in the program
editing window, the actual input signals update the states of X0.0–X0.15.
