Delta AS16AN01T-A

AS Series Operation Manual
2-25
_2

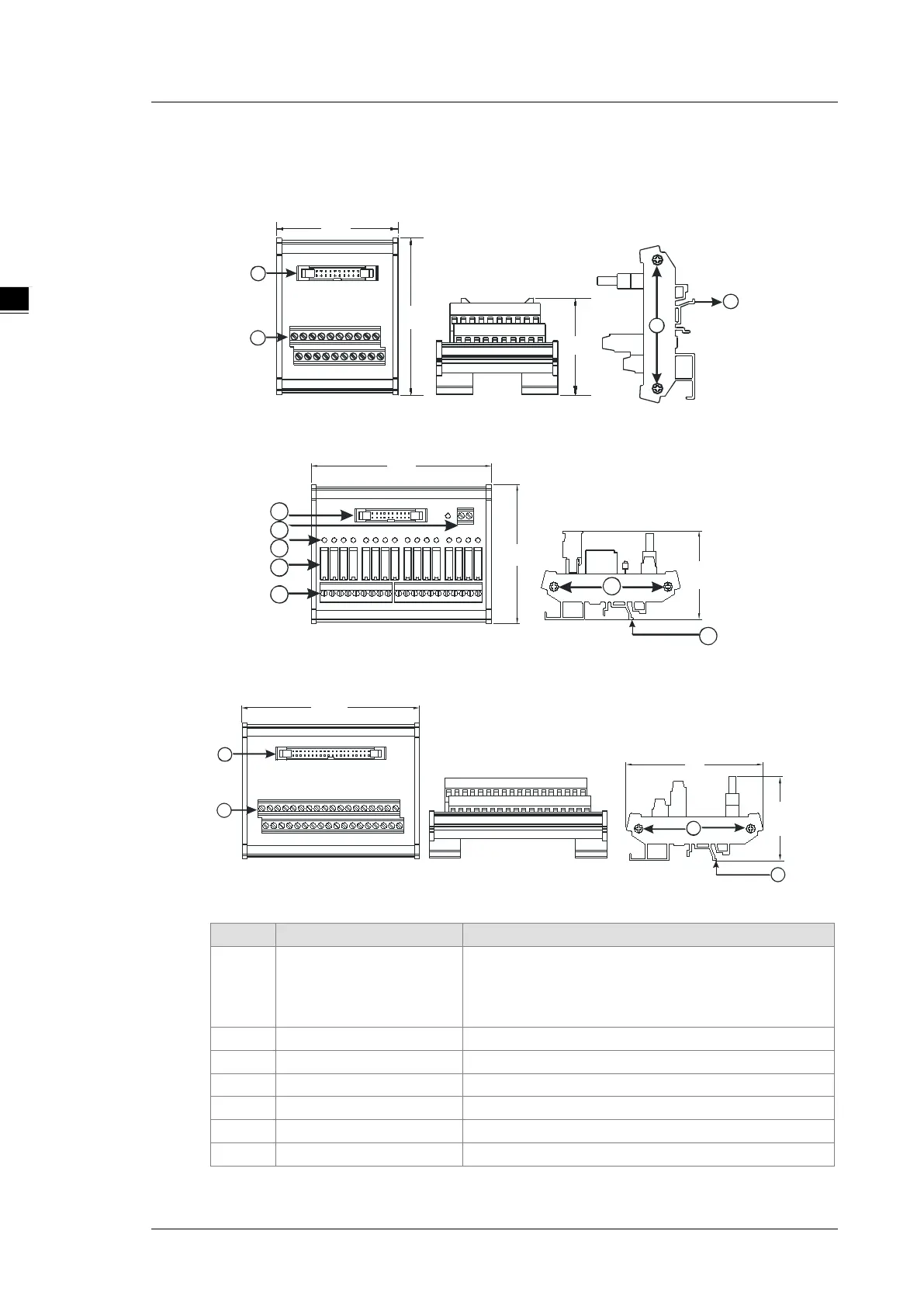

4. AS332T-A/AS64AN02T-A and the external terminal modules UB-10-ID16A, UB-10-OR16A, and UB-
10-OT32A.
 UB-10-ID16A
67.0
87.0
53.6
2
1
7
6
Unit: mm
 UB-10-OR16A
7
6
113
87
55.3
1
3
4
5
2
Unit: mm
 UB-10-OT32A
113
87
53.6
6
2
1
7
Unit: mm
Number
Name
Description
1
UB-10- ID16A /OR16A: 20-
pin ML connector
UB-10-OT32A: 40-pin ML
connector
Connects the external terminal module and a wiring
module
2
Terminals
Input/Output terminals for wiring
3
2-pin power input terminal
Power input terminal for wiring
4
Output LED indicator
LED indicator is ON during output.
5 Relay output Relay output
6 Clip Hangs the external terminal module on a DIN rail
7
Set screw
Fixes the base
