A
S Se
ries
Operation Manual
6
-
36
_6
6.7

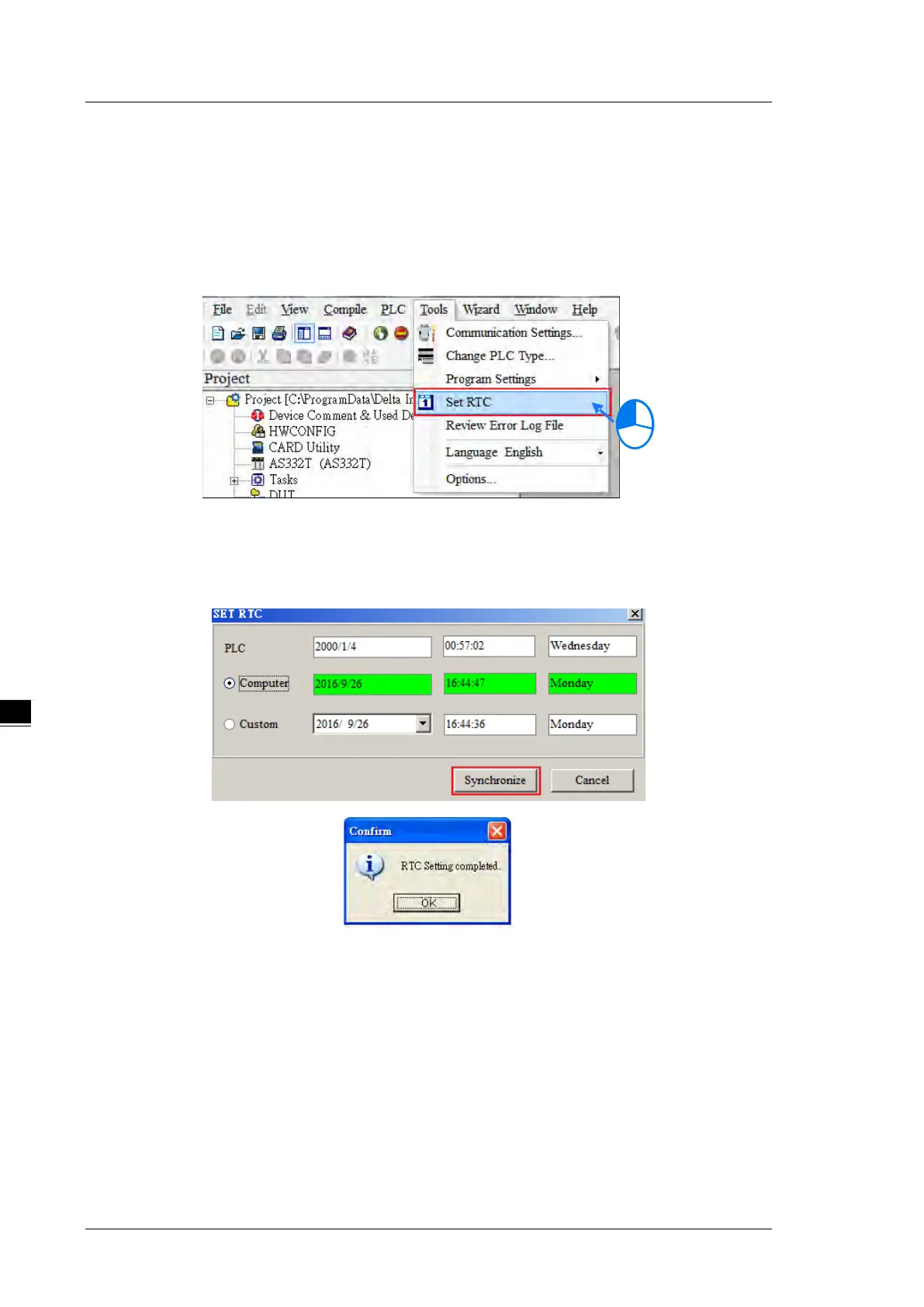

Settin
g a Real
-
time
C
lock
After you
connect an
AS Ser
ies CPU modul
e to a co
mputer
, you can set
the real
-
ti
me clock in t
he CPU mod
ule
through ISP
Soft.
(1)
On the
T
ools
menu, clic
k
Se
t RTC
.
(2)
Select
Computer
, an
d then click
Sy
nchronize
to complete s
etting the real
time clock.
189
191
