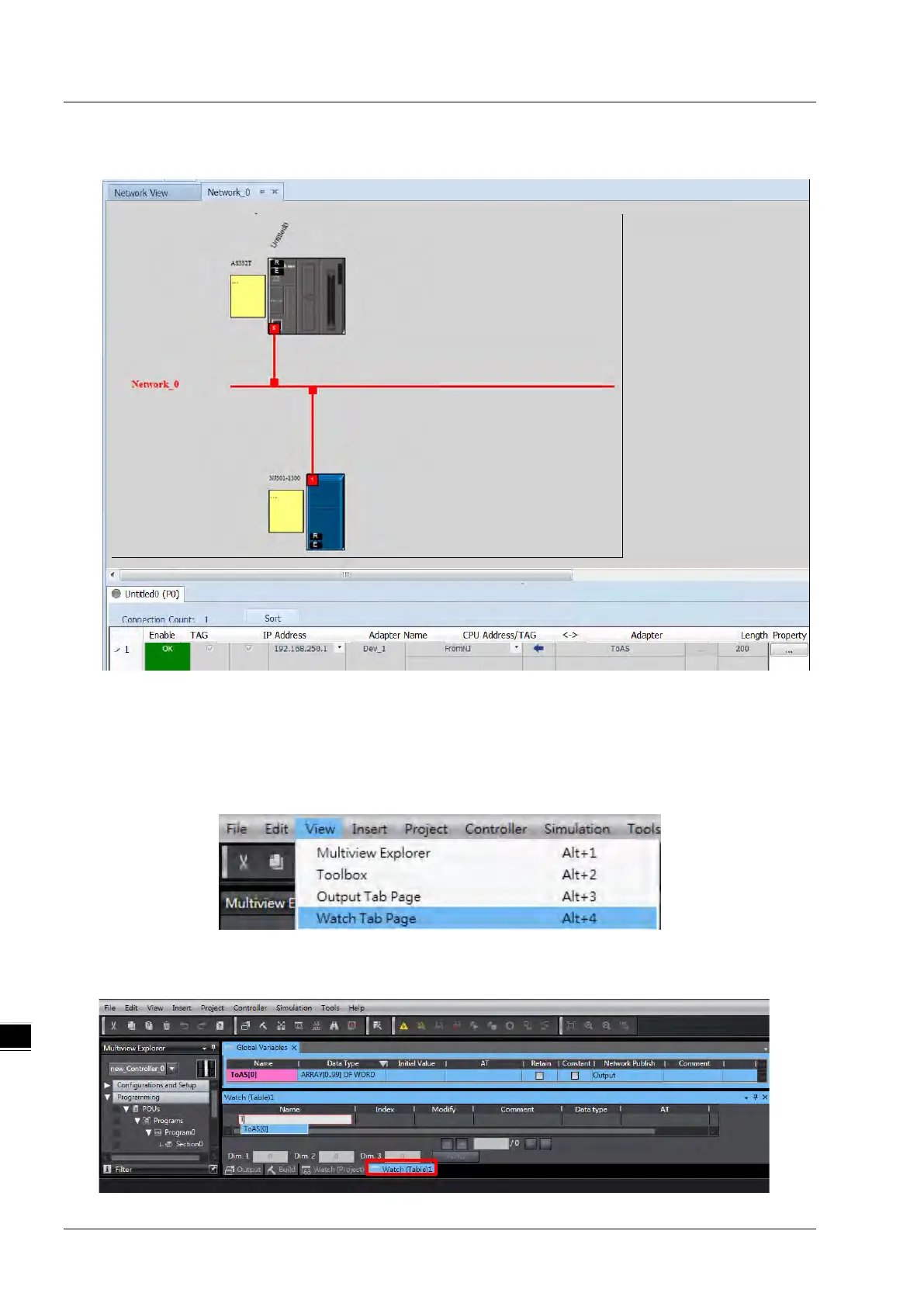

2. The solid network lines indicate the data mapping is being monitored successfully.
 Data Mapping
1. Start Sysmac Studio and make sure the project is in Online Mode. Go to View -> Watch Tab Page on the menu
bar. Click Watch Tab Page to monitor.
2. Select Watch (Table) 1 and input a name for the tag.
