Chapter 9
E
ther
n
et
Specif
ication and Operation
9
-
19
9_

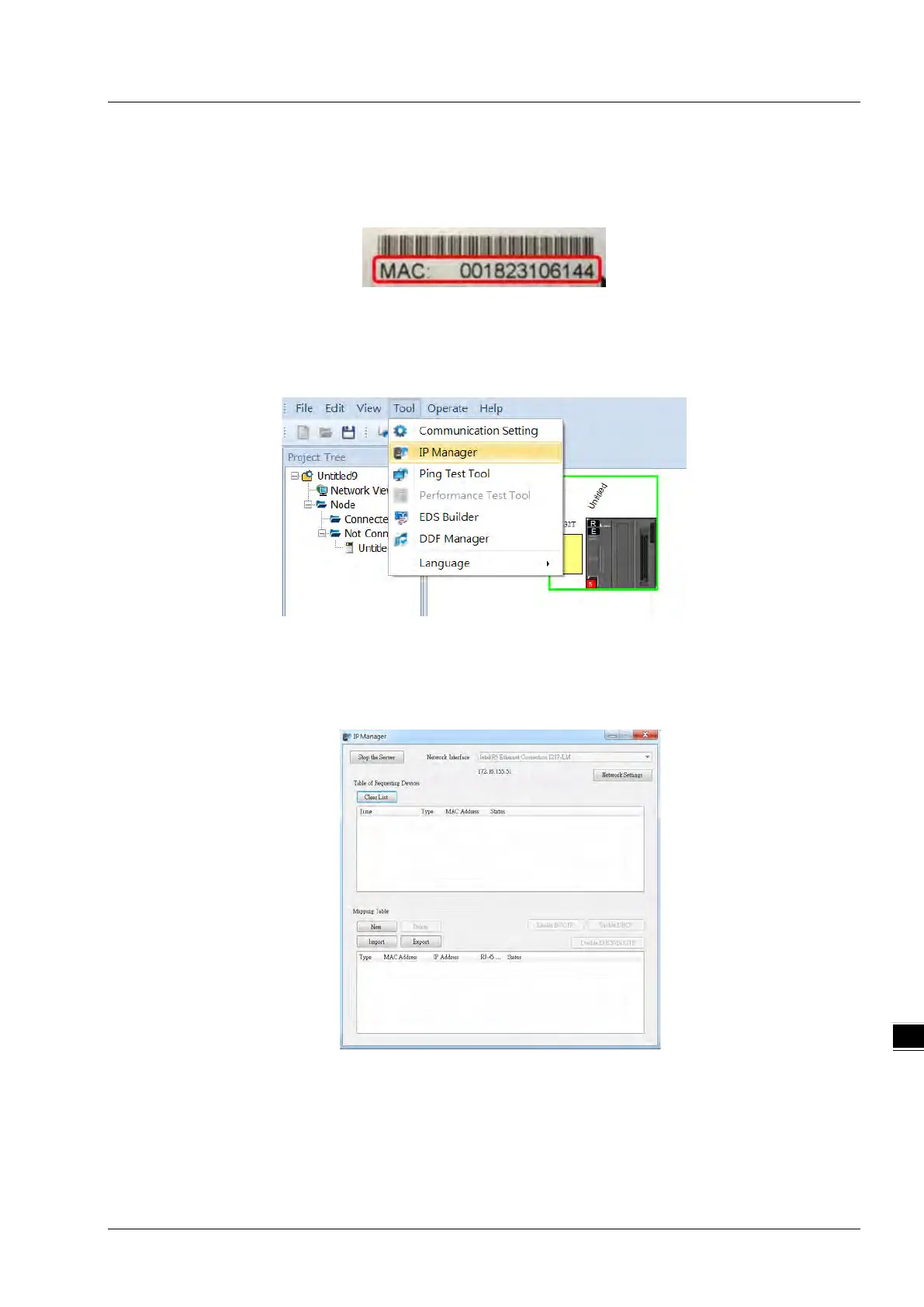

Steps to set the IP
address
:
1.
MAC addr
ess: find the M
AC address on t
he EIP device.
The MAC addres
s uniquely i
dentifi
es the device.
2.
Open the I
P Manager
In EIP Builder
on the
Tool
menu, click
IP
Manager
.
The IP Manager c
an be the BOOT
P/DHCP Server, r
eceiving I
P address requ
ests from devic
es. The IP
Manager wind
ow is shown be
low.
