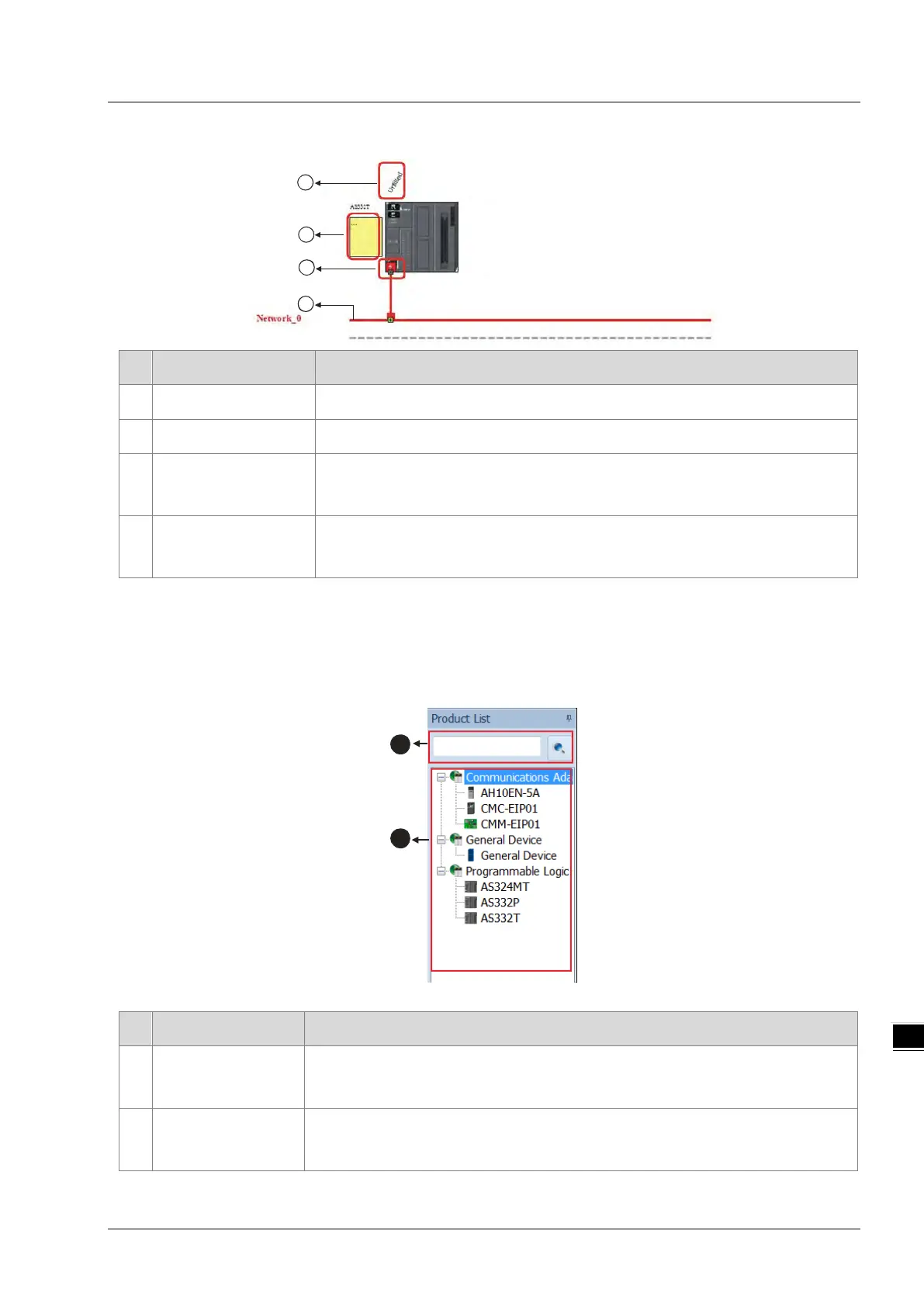

Network View
Name Definition
Station Name Name of the station
Device Name Name of the device
Ethernet COM Port
Displays the number of devices with Ethernet communication ports.
The last digit of the IP address is shown on the COM port.
Network_0
Displays the connection status; devices on the same line indicate they are in the same
network.
Configuration Area
Refer to Section 9.4.3.3 for more information.
Product List
Name Definition
Search Bar
Type the module name you want to find; if no match is found, that means there is no
EDS file in the system matching the module name.
Product List
Categorizes the devices according to the EtherNet/IP definition; devices from third
parties are in the Others folder.
