Chapter 9 Ethernet Specification and Operation
9-119
Create a Consumed TAG

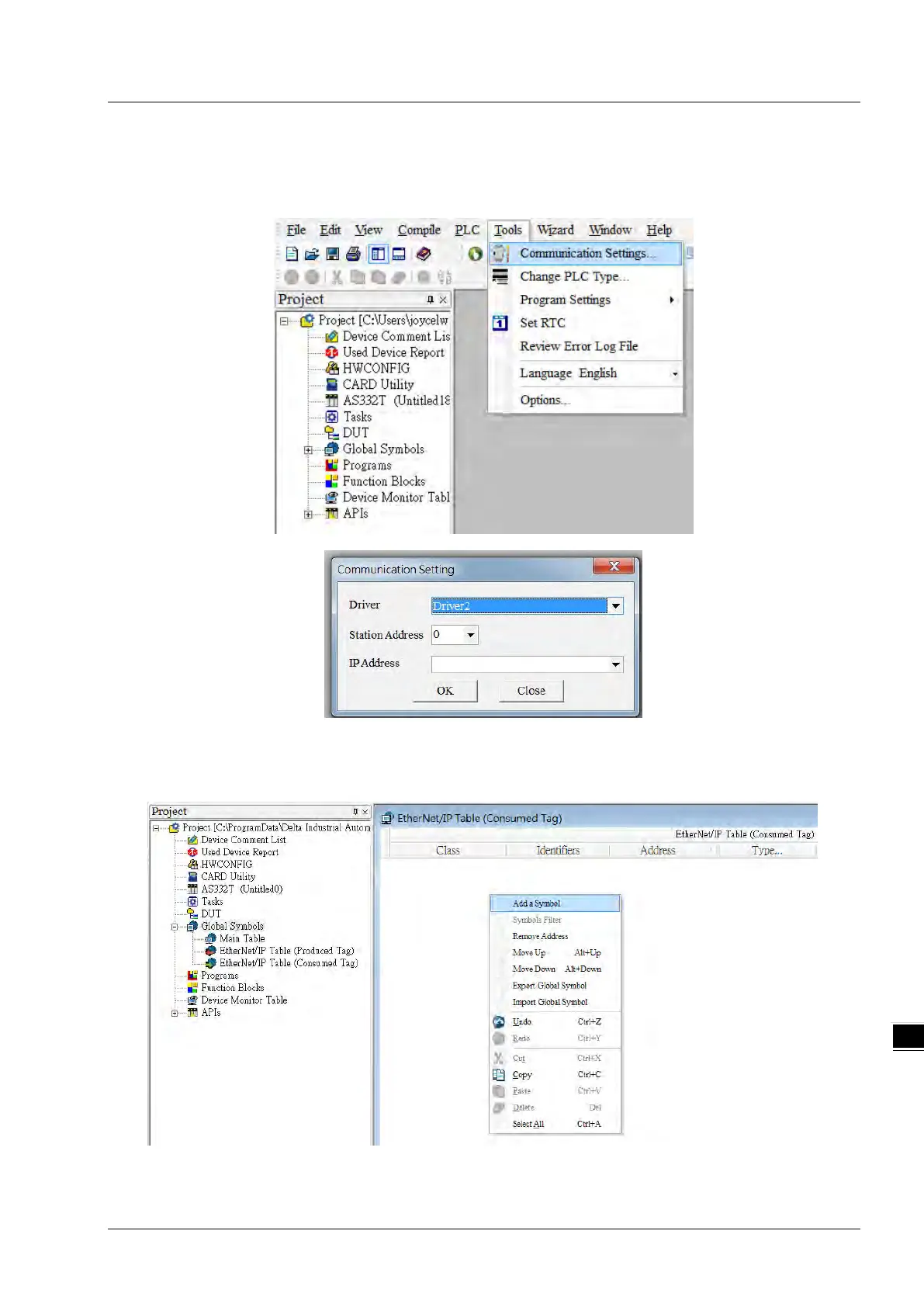

1. Start ISPSoft and click Tools -> Communication Settings and select a driver with Ethernet communication.
※ Before setting the communication, make sure COMMGR is working normally and save the driver settings.
2. Click Global Symbols to expand the tree node and see the options. Double-click EtherNet/IP Table (Consumed
Tag) from the Project section on the left. Right-click the blank area and select Add a Symbol.
To Next Page
