Delta AS300N-A

Chapter 9 Ethernet Specification and Operation
9-129
9_

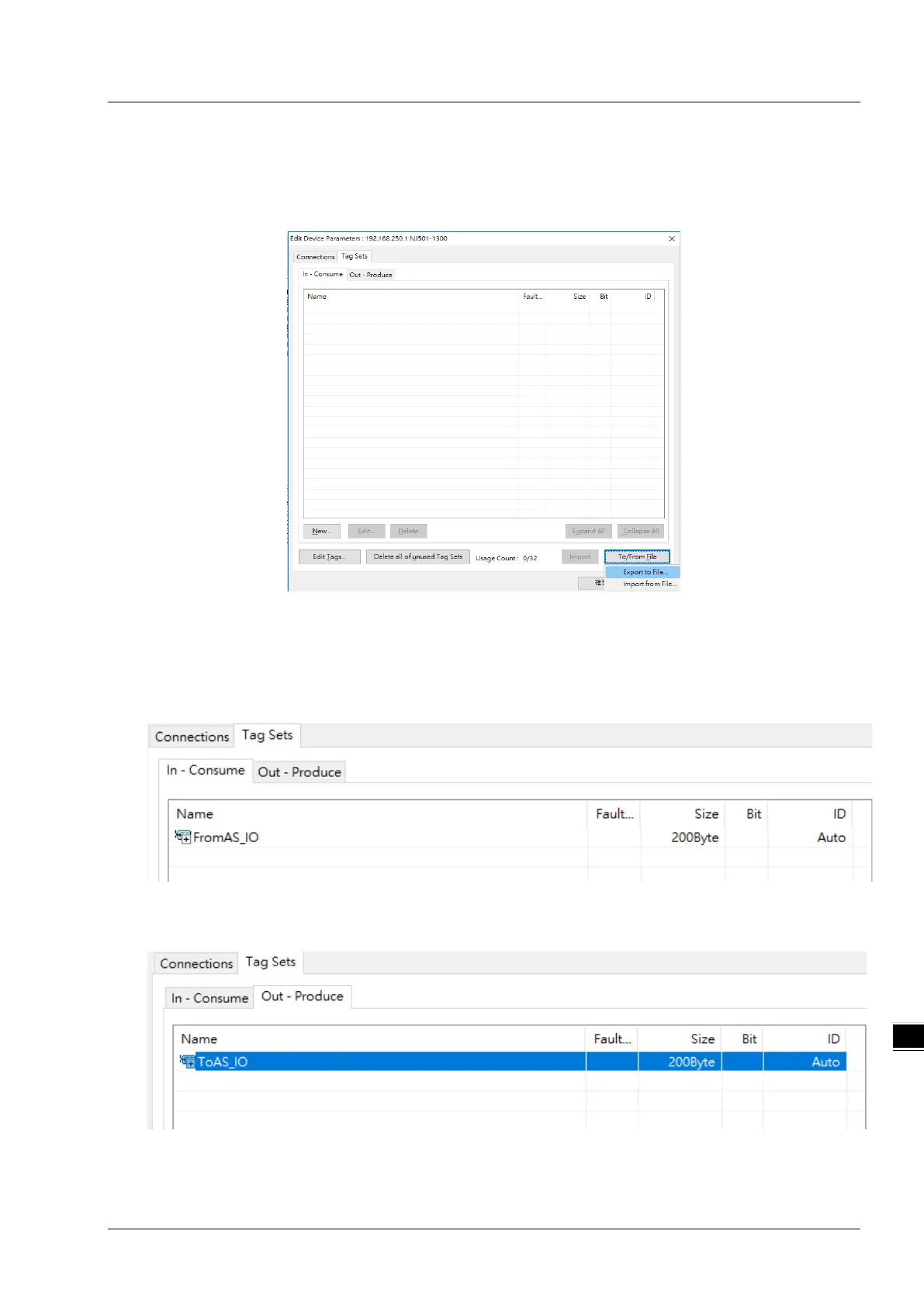

3. Start Network Configurator and then add and edit NJ501-1300 from the Ethernet Hardware List on the left.
Select Parameter -> Edit and click To/From File -> Export to File on lower right corner of the Tag Sets page.
4. After the file is imported, make sure the input and output variables are imported in In-Consume and Out-Produce
sections.
