Delta AS332T-A - Wiring AS02 HC-A

4.11.3 Wiring AS02HC-A

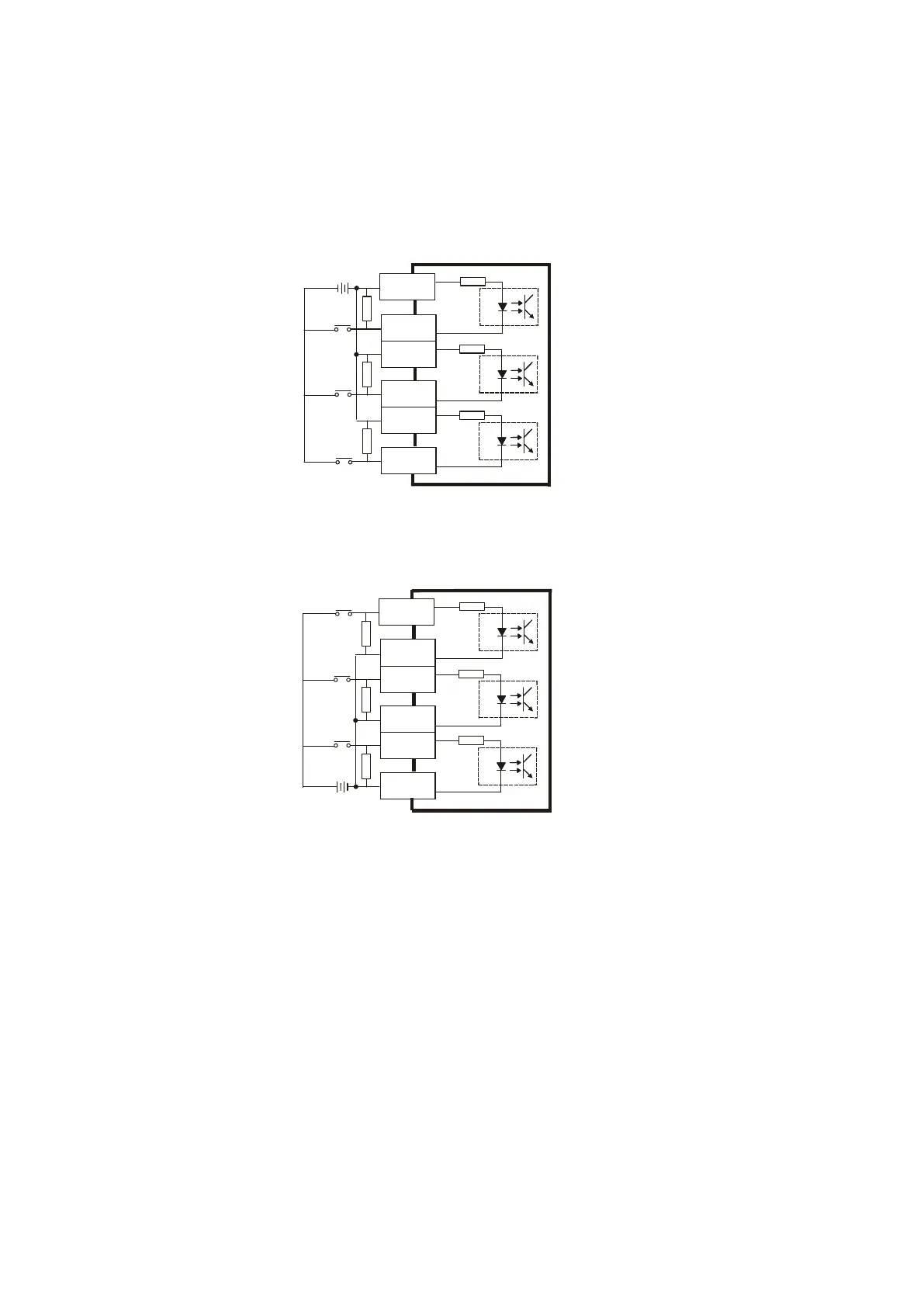

4.11.3.1 Pulse Input
 Sinking
Z-
A+
A-
B-
B+
Z+
R
R
R
5~24V
AS02HC-A
 Sourcing
Z-
A+
A-
B-
B+
Z+
R
R
R
5~24V
AS02HC-A
Note: Open collector sinking/sourcing to connect to phase A/B/Z and if the input frequency is higher than
100 kHz, add a 3W/470 ohm resistor between + the positive end and – the negative end.
