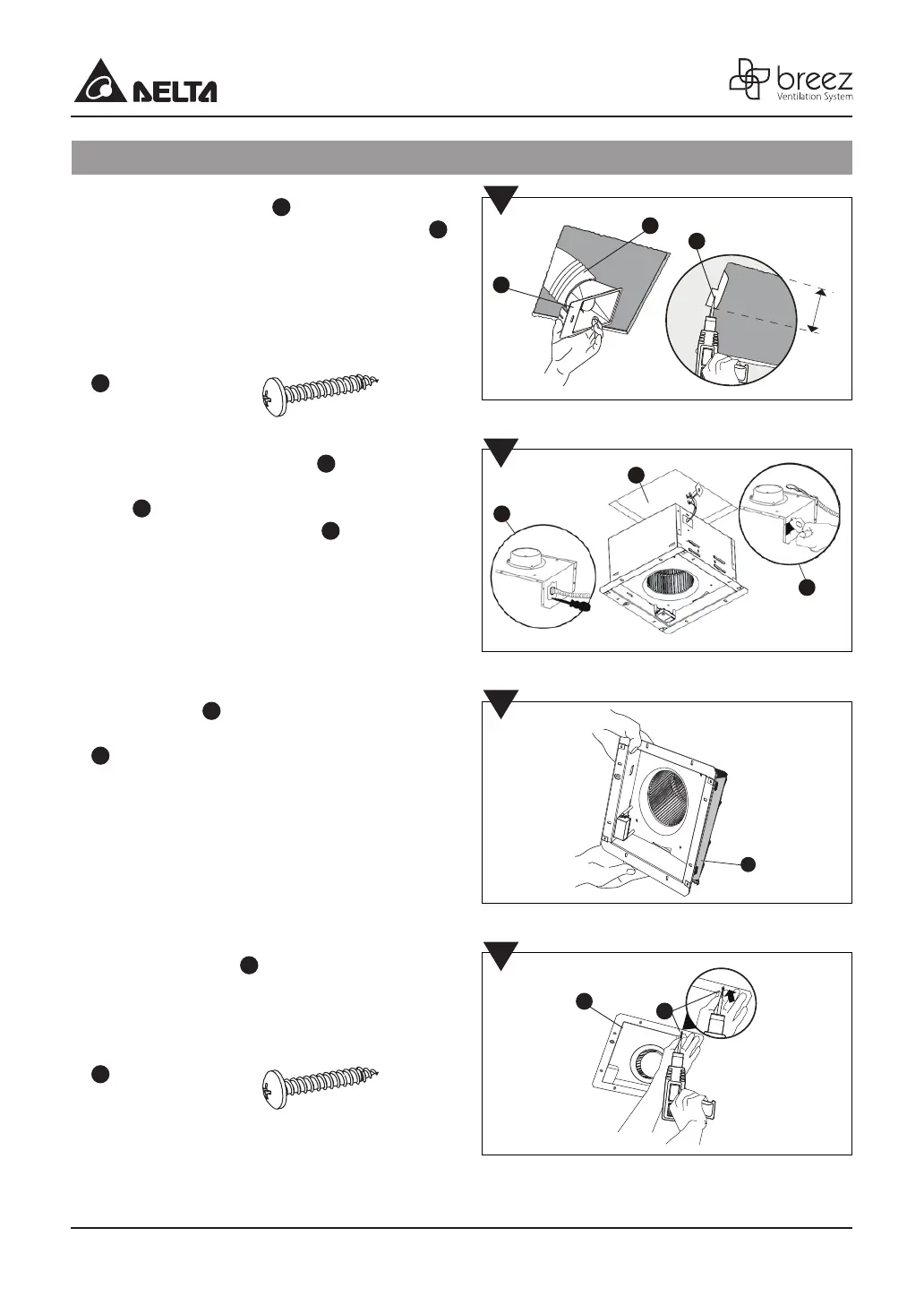

ASSEMBLY INSTRUCTIONS
5. Place the duct connector
6
through the ceiling cut
out. Connect a 4 in. circular duct (not supplied)
a
and vent to the outside. Secure it with duct tape
(not supplied) or clamp (not supplied) to make
connection secure and air tight. Attach the duct
connector to the ceiling with one long wood screw.
Hardware
A
Long wood screw
6. Remove fan junction box cover
a
. Using wire
nuts (not supplied), connect house wires to fan
wires
b
as shown in the wiring diagram on page 4.
Reattach fan junction box cover
c
.
7. Insert fan body
1
into the ceiling cut out making
sure to align the duct connector with the fan body
1
.
8. Secure the fan body
1
from below using long
wood screws (provided). Insert at least 4 screws
through the ange and drywall into the joists.
Hardware
A
Long wood screw
9. Turn on the power source. Check fan for any
abnormal sound or vibration.
1
7
1
A
8
a
b
c
6
a
A
6
5
