Input Wiring
Inputs on the DAC-1600 controller follow the same general wiring requirements as other Delta Controls
products. Recommended cable types should be used as listed below. Refer to the Delta Controls Wiring
Guidelines for more details.
Recommended Cable Type
Where to Use
2 Conductor, 18 AWG, Unshielded
4-20mA, 10KΩ, and 10V input types
2 Conductor, 22 AWG, Shielded
Inputs configured for 5V
Input Configuration

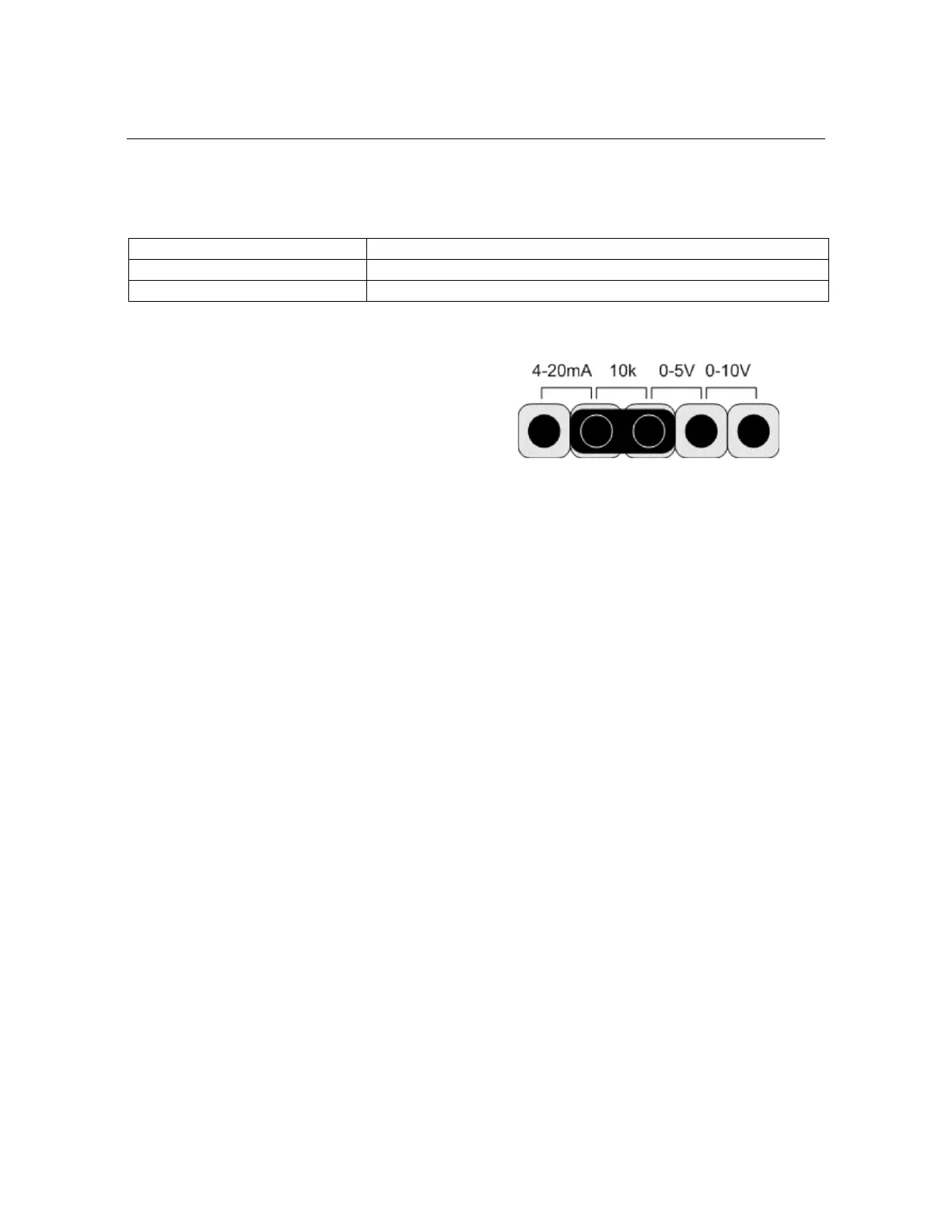

The input must be configured to accept the signal used by
the input device. Place the jumper for each input in the
correct location on the Input Type Selector Block. The
diagram to the right shows the factory default selection of
10 KΩ.
4-20mA  For sensors that use a 4 to 20 mA signal.
10K  For 10 KΩ Thermistor temperature
sensors, as well as Dry Contact binary
inputs.
5V  For sensors that use a 0 - 5 VDC signal.
10V  For sensors that use a 0 -10 VDC signal.
