Delta DOP-B - Page 11

English-10

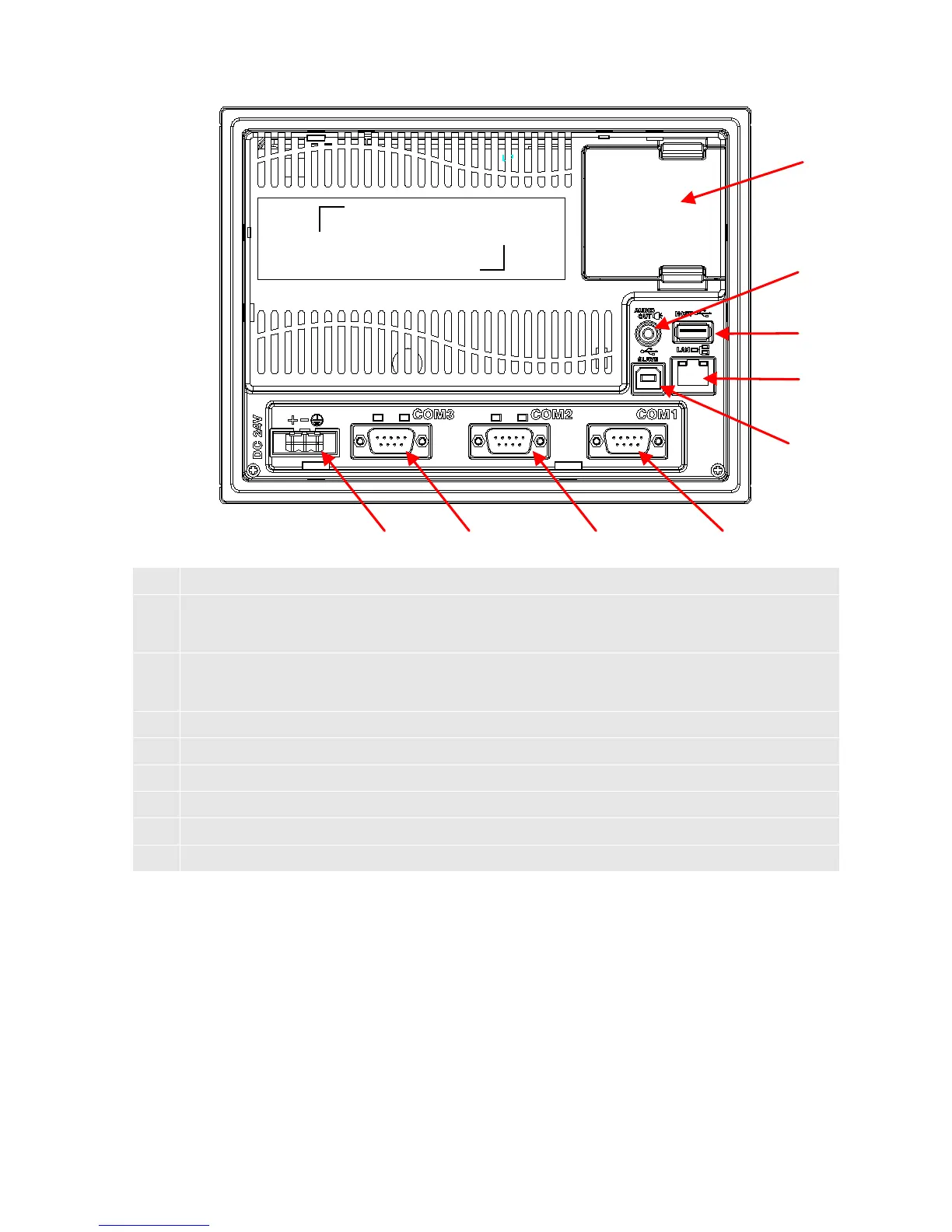

DOP-B07S(E)415／ DOP-B07PS415 (Rear View)
A
Power Input Terminal
B
COM3
(It is provided with two LED indicators to indicate that HMI is in Read or Write status
during the communication process.)
C
COM2
(It is provided with two LED indicators to indicate that HMI is in Read or Write status
during the communication process.)
D
COM1
E
USB Client
F
Ethernet Interface (LAN)
G
USB Host
H
Audio Output Interface
I
Memory Card Slot / Battery Cover
