Delta DOP-B - Page 15

English-14

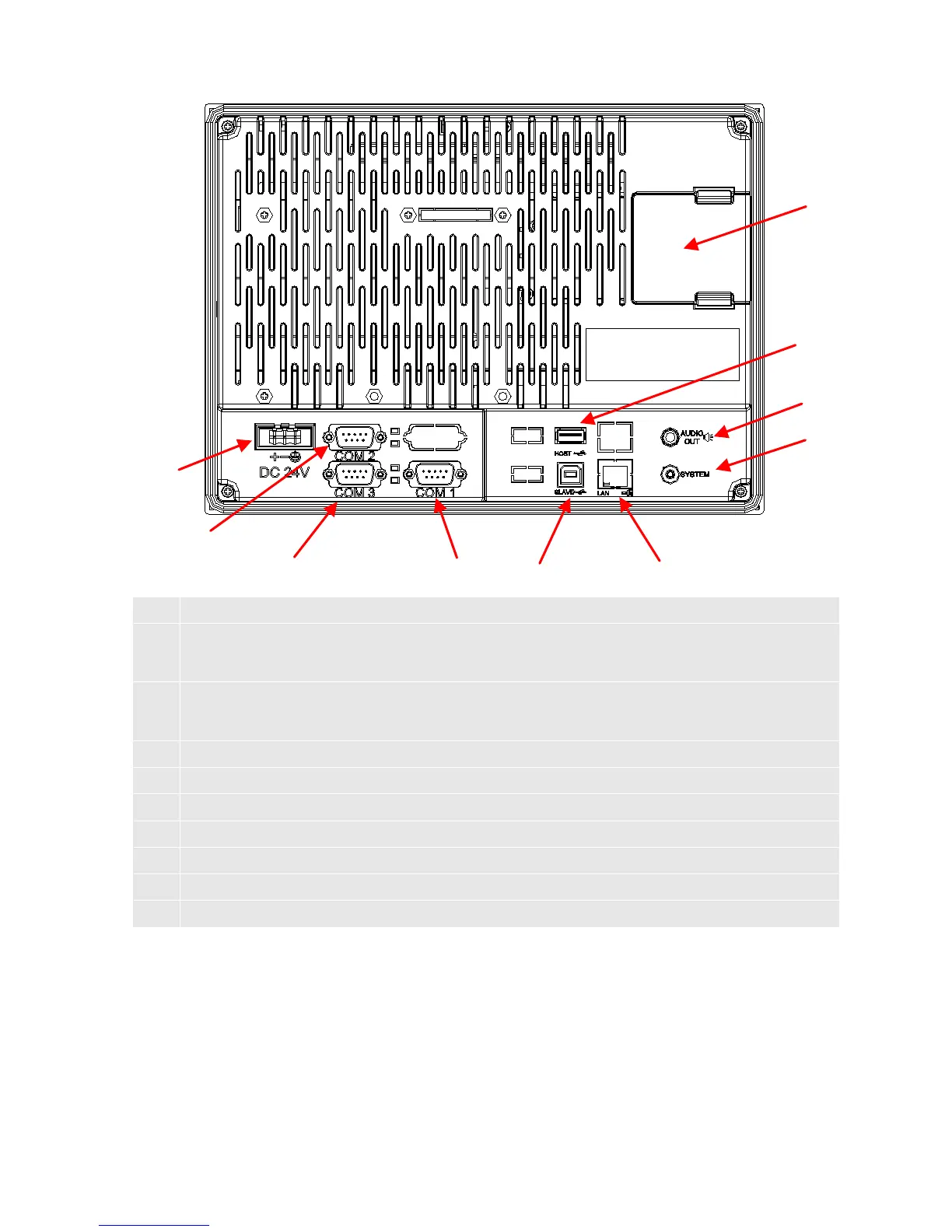

DOP-B10S(E)615 (Rear View)
A
Power Input Terminal
B
COM2
(It is provided with two LED indicators to indicate that HMI is in Read or Write status
during the communication process.)
C
COM3
(It is provided with two LED indicators to indicate that HMI is in Read or Write status
during the communication process.)
D
COM1
E
USB Client
F
Ethernet Interface (LAN)
G
Memory Card Slot / Battery Cover
H
USB Host
I
Audio Output Interface
J
System Key
H
E
F
I
A
B
C
D
J
G
