Delta DOP-B - DOP-B07 S;PS Series Parts

English-8

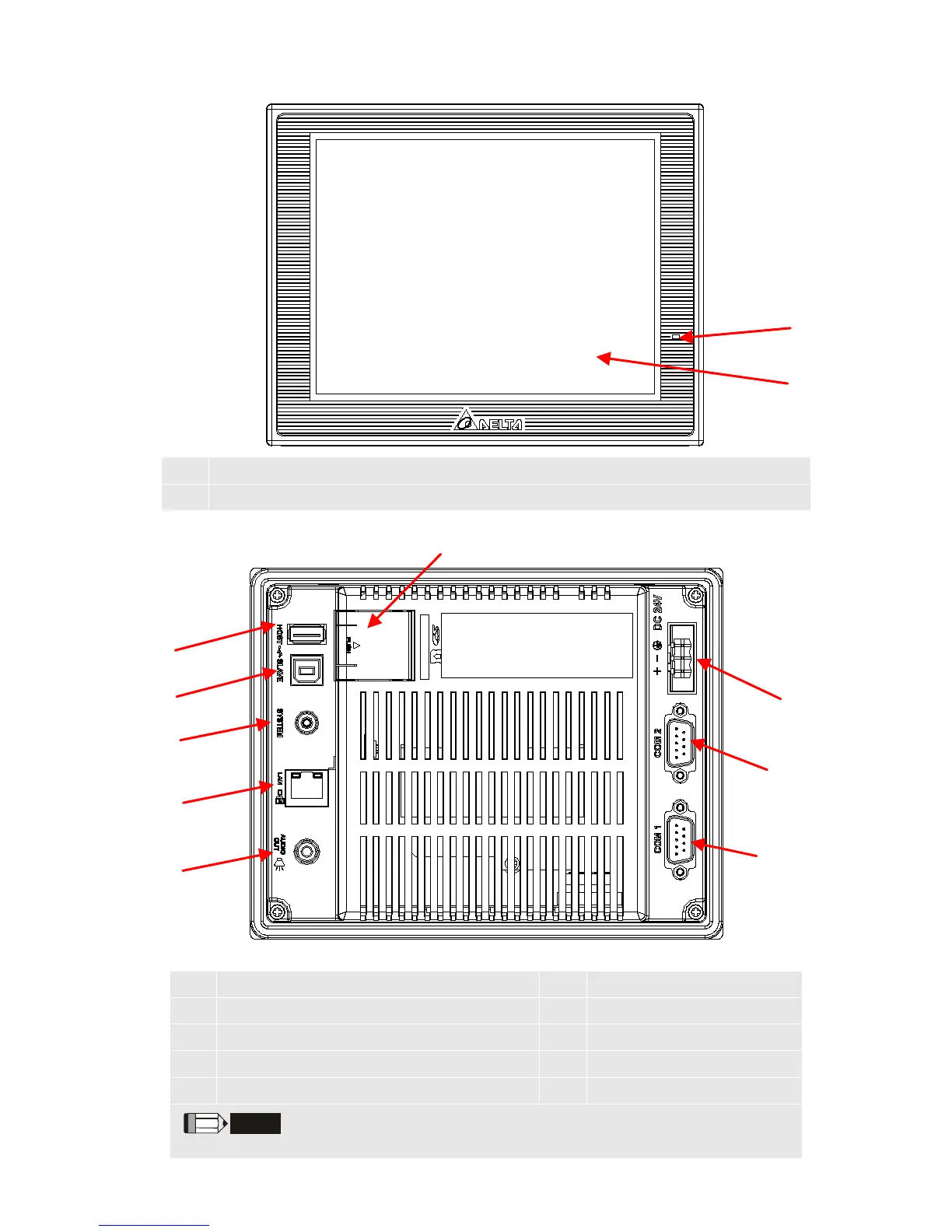

DOP-B07S(E)515 ／ DOP-B07PS515 (Front View)
A
Power LED Indicator (Lights in green when HMI works normally.)
B
Touch Screen / Display
DOP-B07S(E)515 ／ DOP-B07PS515 (Rear View)
A
Power Input Terminal
F
USB Client
B
COM2 (can be extended to COM3
(Note1)
)
G
System Key
C
COM1
H
Ethernet Interface (LAN)
D
Memory Card Slot / Battery Cover
I
Audio Output Interface
E
USB Host
-
-
NOTE
1. For the setting method, please refer to the pin definition of serial communication.
B
A
C
B
A
F
G
E
H
I
D
