Delta DVP06XA-E2 User Manual

- 1 -
…………………………………………………………………  ENGLISH  …………………………………………………………………
Thank you for choosing Delta’s DVP series PLC. DVP06XA-E2 mixed analog
input/output module receives external 4 points of analog input signals (voltage or current)
and converts them into 16-bit digital signals. For the analog signal output, DVP06XA-E2
receives 2 groups of 16-bit digital data coming from the PLC MPU and converts the
digital data into 2 points of analog output signals (voltage or current). In addition, you
can access the data in the module by applying FROM/TO instructions or read the
average value or write the output value of channels directly by using MOV instruction
(Please refer to allocation of special registers D9900 ~ D9999).
EN  DVP06XA-E2 is an OPEN-TYPE device. It should be installed in a control cabinet
free of airborne dust, humidity, electric shock and vibration. To prevent
non-maintenance staff from operating DVP06XA-E2, or to prevent an accident
from damaging DVP06XA-E2, the control cabinet in which DVP06XA-E2 is
installed should be equipped with a safeguard. For example, the control cabinet
in which DVP06XA-E2 is installed can be unlocked with a special tool or key.
EN  DO NOT connect AC power to any of I/O terminals, otherwise serious damage
may occur. Please check all wiring again before DVP06XA-E2 is powered up.
After DVP06XA-E2 is disconnected, Do NOT touch any terminals in a minute.
Make sure that the ground terminal on DVP06XA-E2 is correctly grounded in
order to prevent electromagnetic interference.
FR  DVP06XA-E2 est un module OUVERT. Il doit être installé que dans une enceinte
protectrice (boitier, armoire, etc.) saine, dépourvue de poussière, d’humidité, de
vibrations et hors d’atteinte des chocs électriques. La protection doit éviter que
les personnes non habilitées à la maintenance puissent accéder à l’appareil (par
exemple, une clé ou un outil doivent être nécessaire pour ouvrir a protection).
FR  Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil
DVP06XA-E2 pourra être endommagé. Merci de vérifier encore une fois le
câblage avant la mise sous tension du DVP06XA-E2. Lors de la déconnection de
l’appareil, ne pas toucher les connecteurs dans la minute suivante. Vérifier que la
terre est bien reliée au connecteur de terre afin d’éviter toute interférence
électromagnétique.

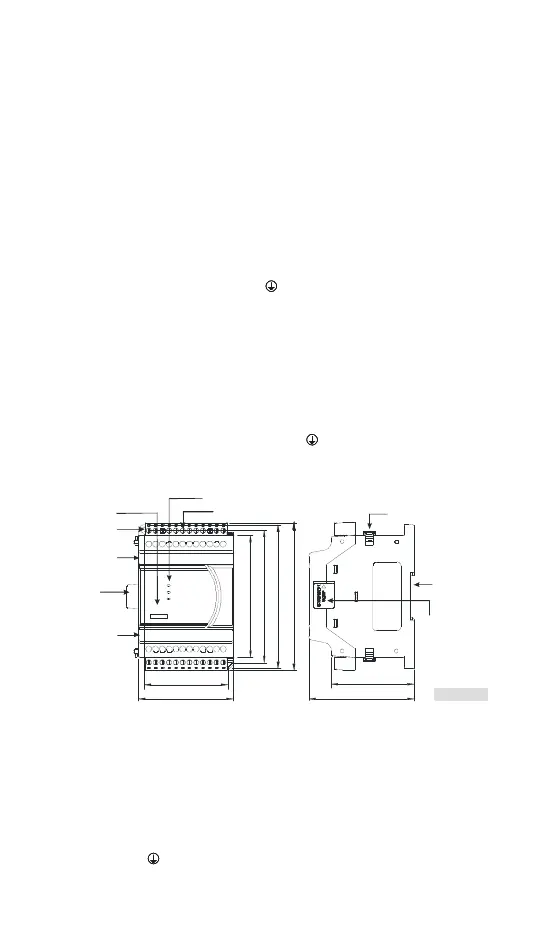

 Product Profile & Dimension
[ Figure 1 ]
70
62
106
98
78
90
61.5
110
06XA-E2
4A I/2A O
Direct mounting
hole
Model Name
Terminal No.
I/O module
connection port
Ter m in al No .
Power / A<->D / Error indicators
Removable I/O terminal
I/O module
connection port
I/O module clip
Mounting slot
(35mm)
(Unit: mm)
 External Wiring
*1: When performing analog input, please isolate other power wirings.
*2: When the XA module is connected to current signals, make sure you short-circuit "V+” and “I+”
terminals.
*3: If the ripples at the loaded input terminal are too significant that causes noise interference on the
wiring, connect the wiring to 0.1 ~ 0.47μF 25V capacitor.
*4: When performing analog output, please isolate other power wirings.
*5: If the ripples at the loaded output terminal are too significant that causes noise interference on the
wiring, connect the wiring to 0.1 ~ 0.47μF 25V capacitor.
*6: Please connect the
terminal on both the power module and XA module to the system earth point
and ground the system contact or connect it to the cover of power distribution cabinet.
 Input: Active-type
