- 2 -

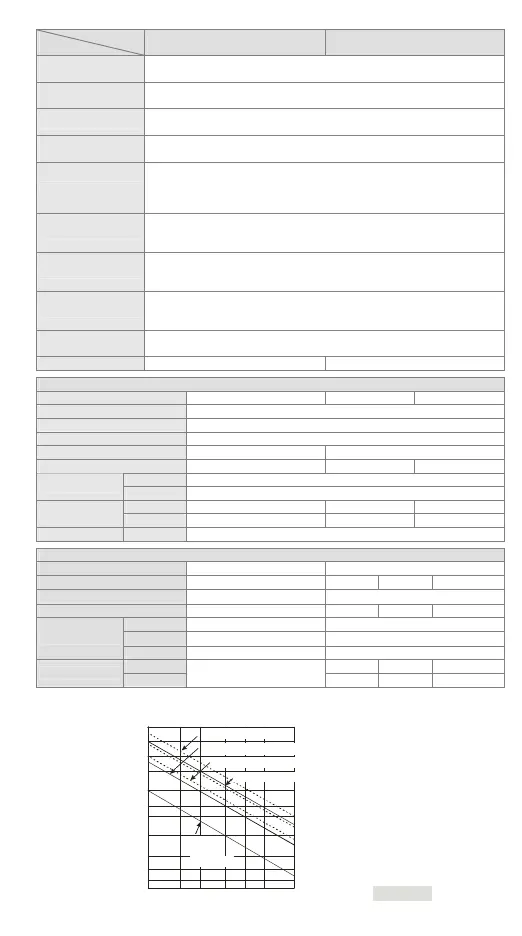

Model
Item
DVP30EX200R DVP30EX200T
DC24V current
output
500mA
Power supply
protection
DC24V output short circuit protection
Voltage withstand
1,500VAC (Primary-secondary)
, 1,500VAC (Primary-PE),
500VAC (Secondary-PE)
Insulation
resistance
> 5MΩ at 500VDC (between all I/O points and ground)
Noise immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,
Analog & Communication I/O: 1kV
RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Grounding
The diameter of grounding wire shall not be less than that of L, N
terminal of the power supply. (When many PLCs are in use at the same
time, please make sure every PLC is properly grounded.)
Environment
Operation: 0°C~55°C (temperature), 50~95% (humidity), pollution
degree 2
Storage: -25°C~70°C (temperature), 5~95% (humidity)
Agency approvals
UL508
European community EMC Directive 89/336/EEC and Low Voltage
Directive 73/23/EEC
Vibration/shock
immunity
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/
IEC61131-2 & IEC 68-2-27 (TEST Ea)
Weight(g) 505 530
Input Point
Input No. X0 ~ X3 X4 ~ X7 X10 ~ X17
type Digital input
Input type DC (SINK or SOURCE)
Input current 24VDC, 5mA
Input impedance 3.9KΩ 4.7KΩ
Max. frequency 100kHz 10kHz 60Hz
Off → On >15VDC
Action level
On → Off < 5VDC
Off → On < 2.5μs < 20us < 10ms
Response time
On → Off < 5μs < 50us < 15ms
Filter time X0 ~ X7 Adjustable within 0 ~ 20ms in D1020 (Default: 10ms)
Output Point
Output point type Relay-R Transistor-T
Output point number All Y0, Y2 Y1, Y3 Y4~Y11
Voltage specification < 250VAC, 30VDC
5 ~ 30VDC
#1
Max. frequency 1Hz 100kHz 10kHz 1kHz
Resistive 2A/1 point (5A/COM) 0.5A/1 point (4A/ZP)
Inductive
#2
15W (30VDC)
Maximum load
Lamp 20WDC/100WAC 2.5W(30VDC)
Off → On < 2μs < 20μs < 100μs
Response time
On → Off
Approx .10ms
< 3μs < 30μs < 100μs
#1: UP, ZP must work with external auxiliary power supply 24VDC (-15% ~ +20%), rated
consumption approx. 1mA/point.
#2: Life curves
Contact
Current(A)
20
0.5
0.1
0.2
30
50
0.3 0.7
12
200
300
500
100
1,000
2,000
3,000
O
p
e
r
a
t
i
o
n
(
X
1
0
)
3
120VAC Resistive
30VDC Inductive(t=7ms)
240VAC Inductive(cos 0.4)ψ=
120VAC Inductive(cos =0.4)ψ
30VDC
Inductive
( t=40ms)
[ Figure 3 ]
