- 1 -
………………………………………………………………… ENGLISH …………………………………………………………………
Thank you for choosing Delta’s DVP-EX2 series PLC. DVP-EX2 series provides 30
points MPU (16 points digital Input, 10 points digital Output, 3 channel Analog input and
1 channel Analog output). The maximum I/O points including those on the MPU are 256
points. DVP-EX2 series PLCs satisfy various applications in that they can be used with
analog input/output modules. Users do not have to install any batteries in DVP-EX2
series PLCs. The PLC programs and the latched data are stored in the high-speed flash
memories.
a This instruction sheet provides only information on the electrical specification,
general functions, installation and wiring. For detailed program design and applicable
instructions for DVP-EX2, please refer to “DVP-EX2 Operation Manual:
Programming”. For details on the optional peripheral, please refer to the instruction
sheet enclosed in the package.
a DVP-EX2 series PLC is an OPEN TYPE device and therefore should be installed in
an enclosure free of airborne dust, humidity, electric shock and vibration. The
enclosure should prevent non-maintenance staff from operating the device (e.g. key
or specific tools are required for operating the enclosure) in case danger and damage
on the device may occur.
a DO NOT connect the input AC power supply to any of the I/O terminals; otherwise
serious damage may occur. Check all the wiring again before switching on the power.
Make sure the ground terminal
is correctly grounded in order to prevent
electromagnetic interference.

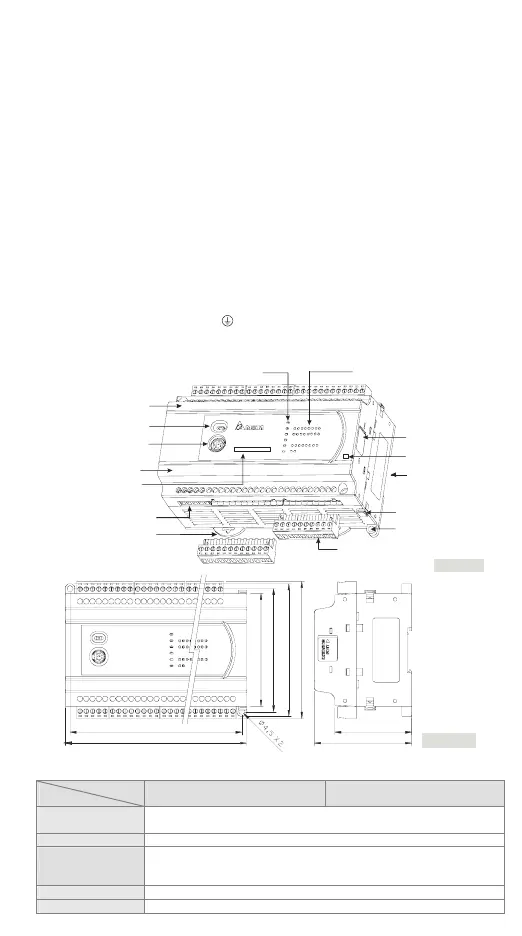

Product Profile & Dimension
COM1 Communication
(RS-232C)port
DIN rail clip
POWER, RUN ERROR indicators, & COM
Run/Stop switch
I/O terminal No.
COM2/COM3 (RS-485)
I/O terminal No.
Model Name
Removable I/O terminal block
Direct mounting hole
Mounting slot
(35mm)
I/O point indicators
I/O module
portconnection
Output type
R
I/O module clip
[ Fi gure 1 ]
DVP30E X2
16 DI/10 DO/ 3AI/ 1AO
157
165
[ Figure 2 ]
106
98
78
90
61.5
110
Unit: mm
Electrical Specifications
Model
Item
DVP30EX200R DVP30EX200T
Power supply
voltage
100 ~ 240VAC (-15% ~ 10%)
, 50/60Hz ±5%
Connector European standard removable terminal block (Pin pitch: 5mm)
Operation
DVP-EX2 starts to run when the power rises to 95 ~ 100VAC and stops
when the power drops to 70VAC. If the power is suddenly cut off, the
MPU will continue running for 10ms.
Power supply fuse 2A/250VAC
Power consumption 30VA
