Delta DVP80ES300R

DVP-ES3 Series Operation Manual
5-22
_5

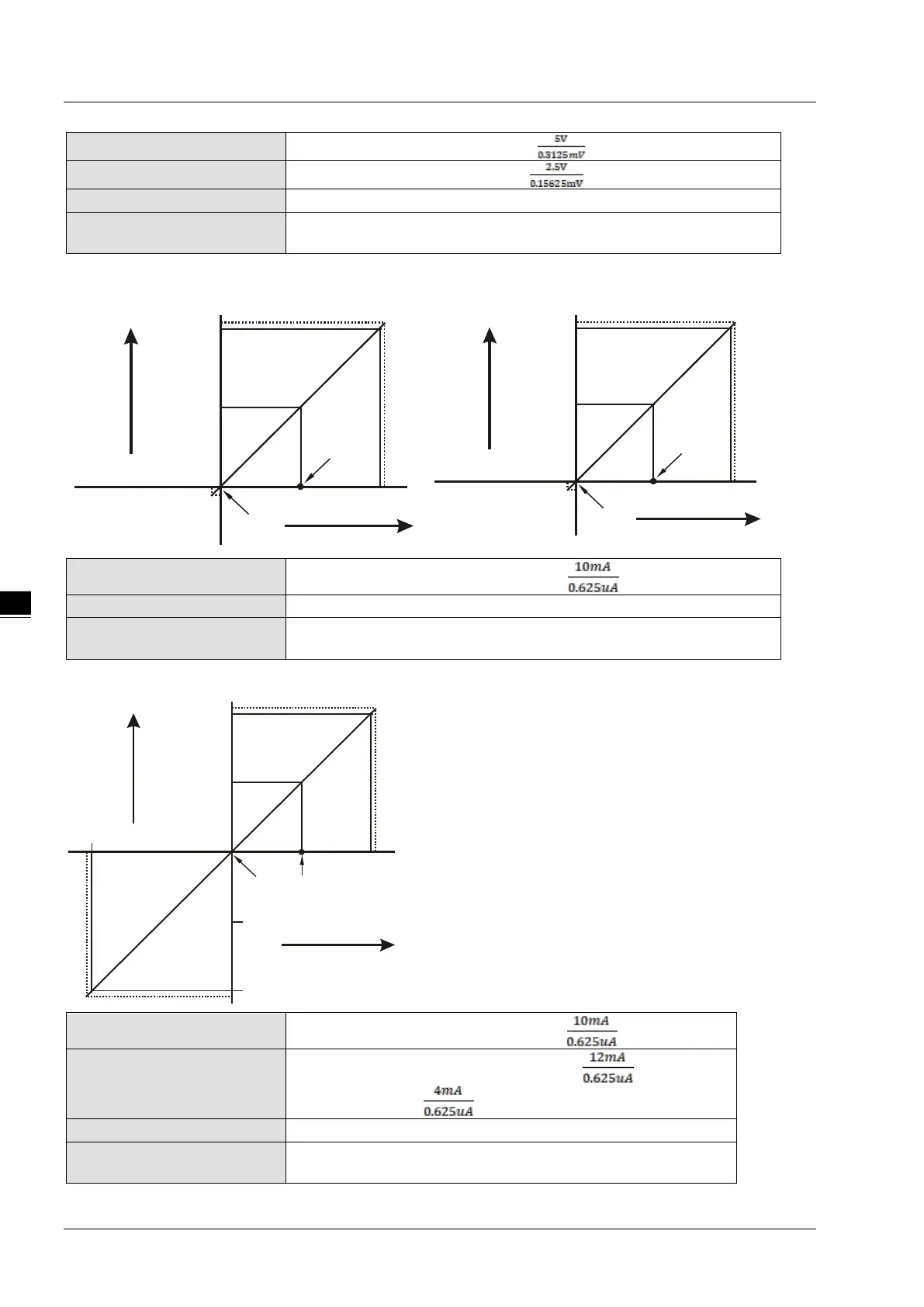

Mode 2 of CR#2 ~ CR#5
0V ~ +10V, Default: Gain = 16,000（= ）， Offset = 0
Mode 3 of CR#2 ~ CR#5
0V ~ +5V, Default: Gain = 16,000（= ）， Offset = 0
Range of digital conversion
0 ~ +32,000
Max./Min. range of digital
conversion
-384 ~ +32,384

Mode 2:

Mode 3:
Voltage input
+32000
+16000
10V
5V
0
Gain
Offset
Digital
output
+32384
-384
Voltage input
+32000
+16000
5V
2.5V
0
Gain
Offset
Digital
output
+32384
-384
Mode 4 of CR#2 ~ CR#5
-20mA ~ +20mA, Default: Gain = 16,000（= ）, Offset = 0
Range of digital conversion
-32,000 ~ +32,000
Max./Min. range of digital
conversion
-32,384 ~ +32,384

Mode 4:
Current input
+32000
+16000
-16000
20mA
-32000
-20mA
10mA
0
Gain
Offset
Digital
output
+32384
-32384
Mode 5 of CR#2 ~ CR#5
0mA ~ +20mA, Default: Gain = 16,000（= ）, Offset = 0
Mode 6 of CR#2 ~ CR#5
+4mA ~ +20mA, Default: Gain = 19,200 （= ）,
Offset = 6,400（
= ）
Range of digital conversion
0 ~ +32,000
Max./Min. range of digital
conversion
-384 ~ +32,384
