Delta E8-TL-US

36
Figure 28:Changing fuse

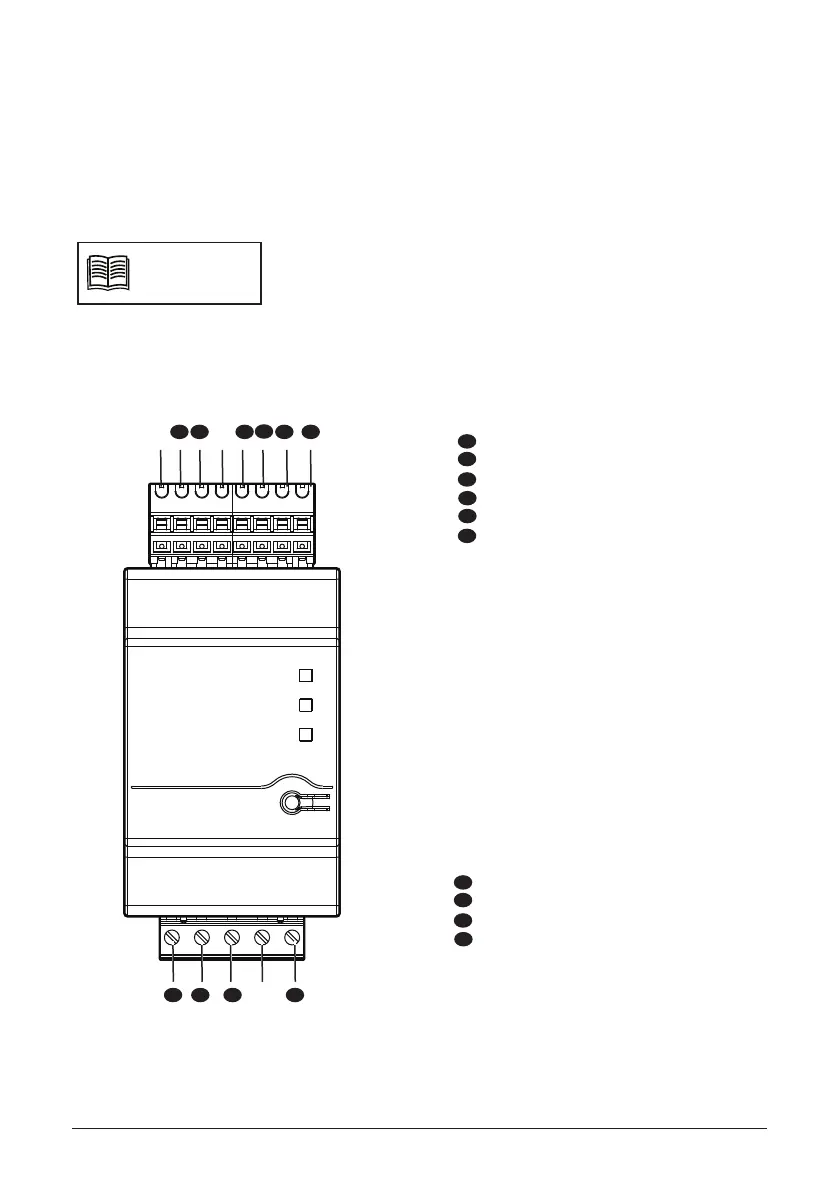

4.8.7 Energy meter connections
The energy meter connection is required to get information about energy ow. Before connecting
the energy meter to this product, install the energy meter. Refer to the installation manual of the
energy meter for more information about energy meter installation.
INFORMATION!
INFORMATIONS!
AC wire cables are recommended to be 22 – 18 AWG (0.34 – 0.75
mm2).
Energy meter communication cables are recommended to be 24 –
18 AWG (0.25 – 0.75 mm2).
Les ls CA doivent être d’un calibre de 22 – 18 AWG (0.34 – 0.75
mm2). Les ls de communication du compteur d’énergie doivent
être d’un calibre de 24 – 18 AWG (0.25 – 0.75 mm2).
4
X
8
2 6
7
31
9 10
5
X
X
1
B- (RS485)
A+ (RS485)
L2 CT -
L2 CT +
L1 CT -
L1 CT +
2
3
4
5
6
7
L1 Terminal
L2 Terminal
N Terminal
Ground
8
9
10
Note:
Clamp the CT connected to L1 CT around the wire connected to ØL1.
Clamp the CT connected to L2 CT around the wire connected to ØL230A.
