Delta EV Ultra - Required Distances and Dimensions; Wall Distance

8
EV Ultra Fast Charger Site preparation
4.5 Required distances and dimensions
4.5.1 Wall distance
Device is equipped with door on every side. Therefore it cannot be installed close to obstacles that could
limit access to EV Ultra Fast Charger. Safe distance between closed unit and wall that allows to open rear
door is approx. 820 mm.

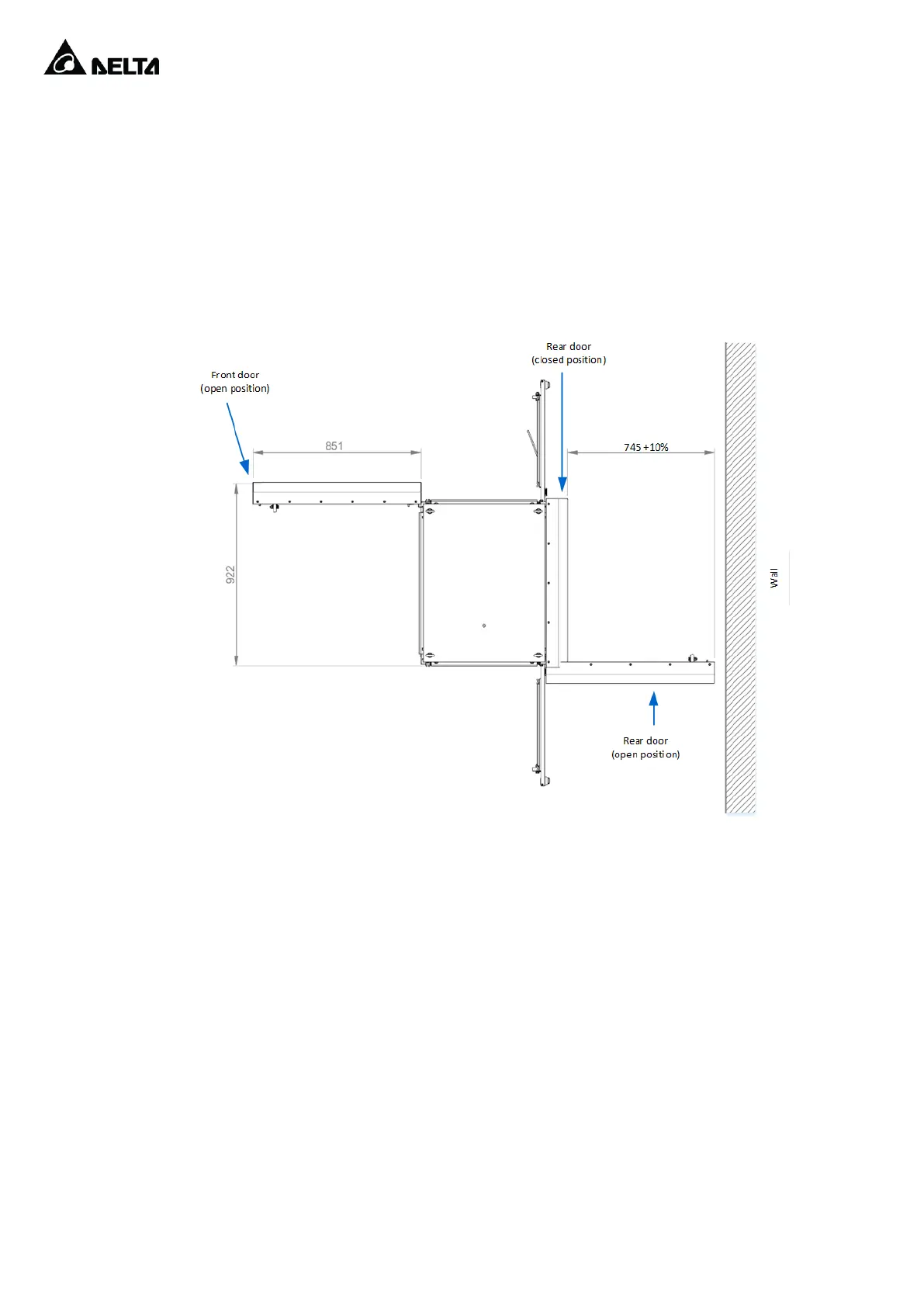

Figure 1 Wall distance
