Connect the LAN cable if applicable. (Please refer to chapter 9.1.1 for detailed description.)
For wireless connection, install SIM card in the modem. (Please refer to chapter 9.1.2 for
detailed description.)
Note! If Ultra Fast Charger is equipped with Proxy system with DEEMS, then the SIM card – back
office connection, is in the RUT955 device (please, refer to Figure 17).

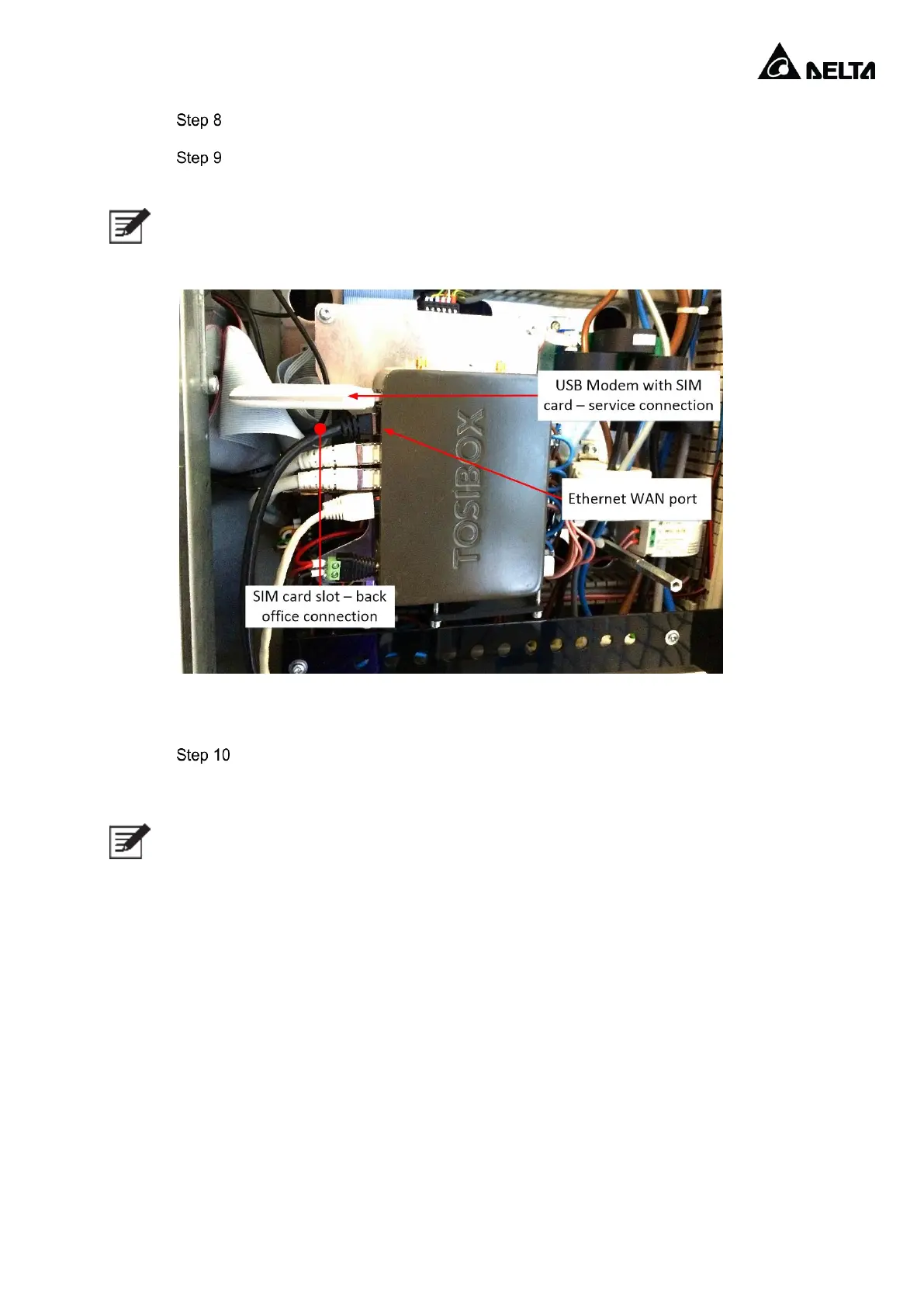

Figure 10 SIM card and LAN cable
Connect the AC cables with a 30 Nm torque: first P connection, second Neutral, third three
lines. The cable size must be 300 mm² diameters at maximum. The maximum current and
cable cross section are defined upon system configuration and local regulations.
Note! 300 Arms required for maximum system configuration.
