20
Fig. 58

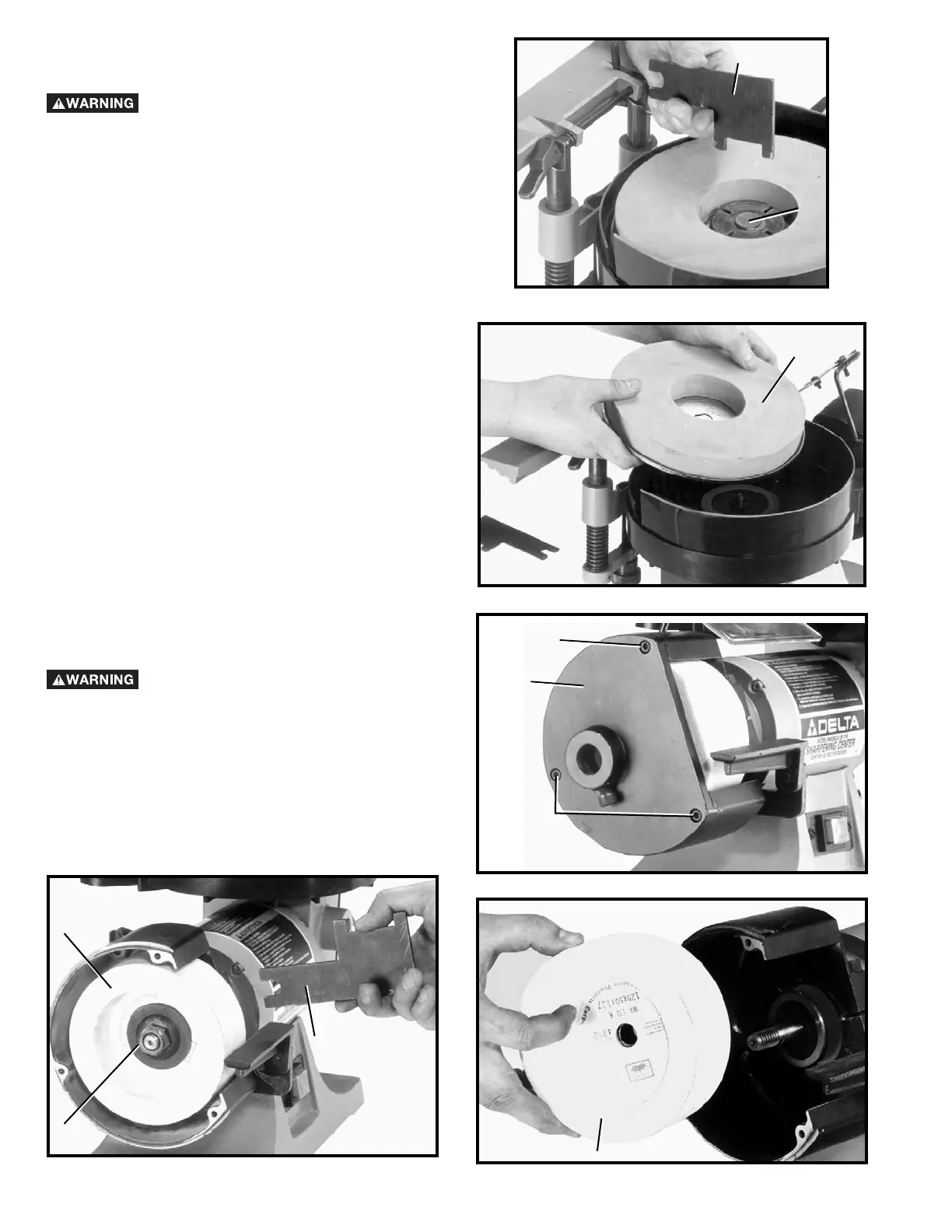

REPLACING WET GRINDING WHEEL
DISCONNECT THE MACHINE FROM
THE POWER SOURCE.
1. Using the wrench (A) Fig. 58, supplied, remove the
wheel locking nut (B).
2. Remove and replace the wet wheel (C) as shown in
Fig. 59.
Fig. 59
Fig. 60
Fig. 62
REPLACING DRY GRINDING WHEEL
DISCONNECT MACHINE FROM THE
POWER SOURCE.
1. Remove three screws (A) Fig. 60, and side cover (B).
2. Using wrench (C) Fig. 61, supplied, hold motor shaft
on inside of grinding wheel (D) to keep shaft from
turning and remove wheel nut (E). Use a 13/16
wrench (not provided).
3. Remove grinding wheel (D), as shown in Fig. 62.
Fig. 61
A
C
A
E
B
A
D
C
D
B
