Delta IPC-E200 Series - Diagram of I;O Interface

Delta Emb edded System Operation Manual - E20 0 Series
2-2
_2

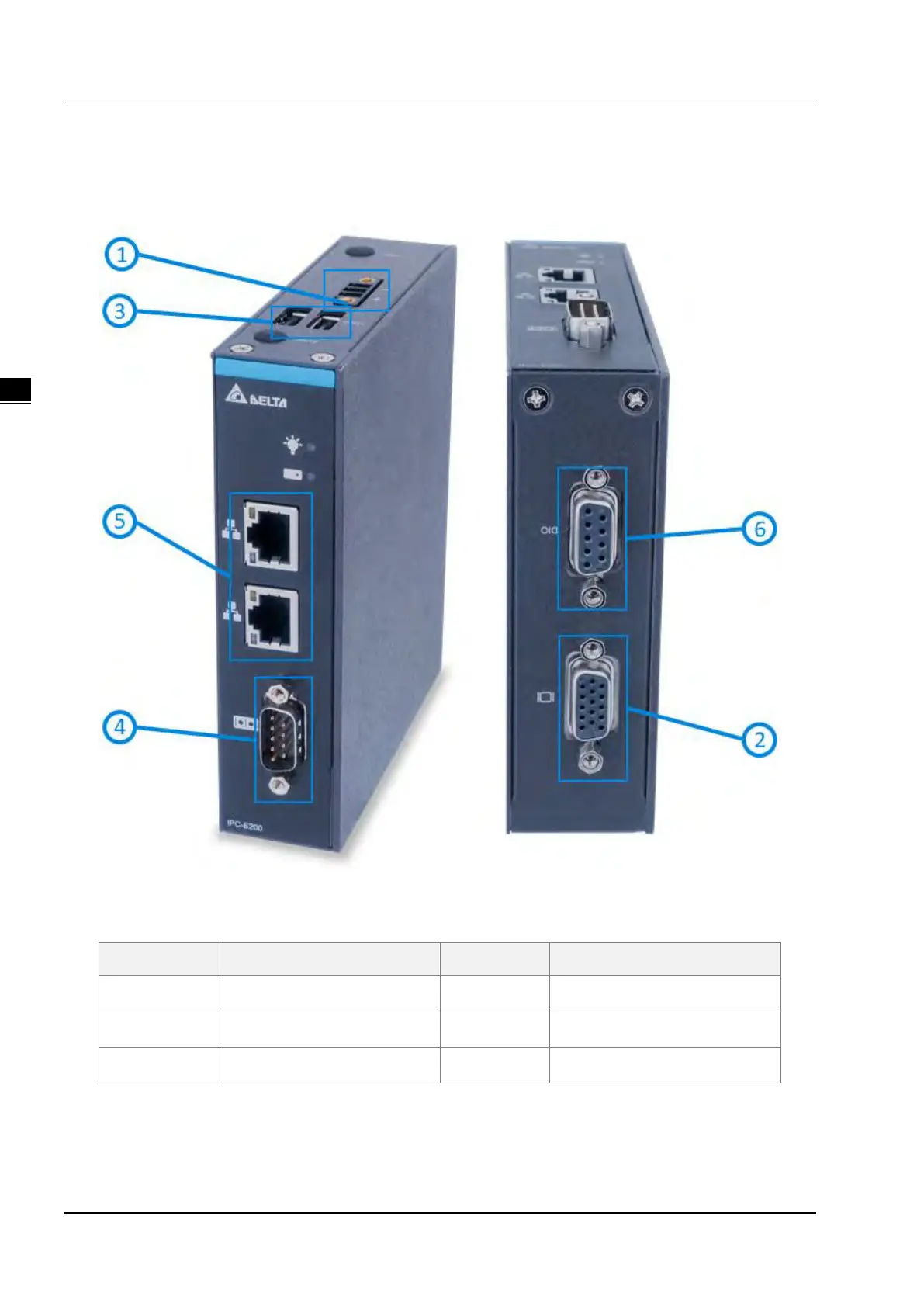

2.1 Diagram of I/O interface
No.
Description
No.
Description
1
DC24V power supply
4
RS-232/ RS-422/ RS-485
2
VGA
5
RJ-45 connector
3
USB 2.0
6
DI/DO
