Delta Embedded S ystem Opera tion Man ual - E200 Series
2-4
_2

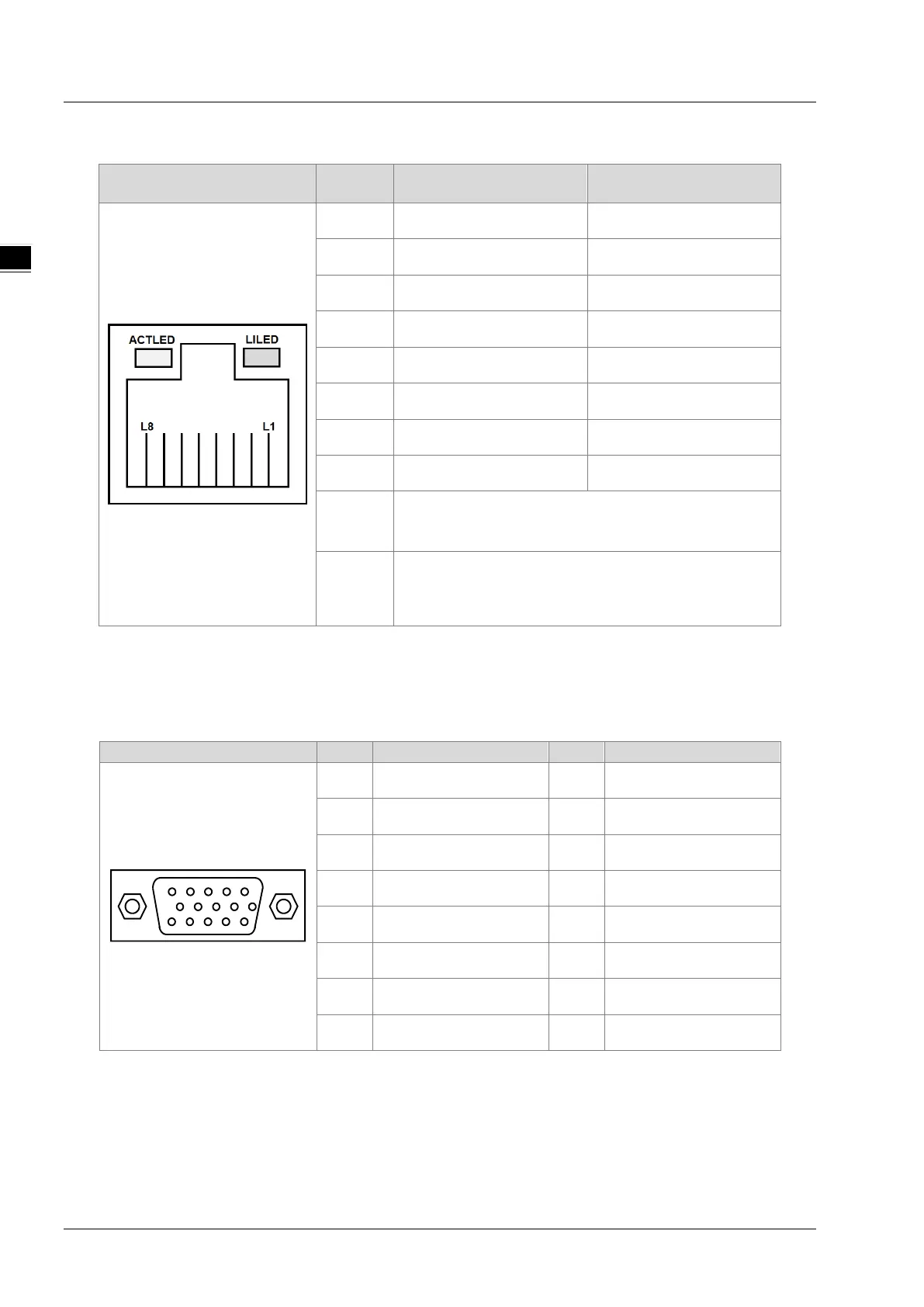

2.2.3 RJ-45 connector
RJ-45
Pin
1000 Base-T
100 Base-T
L1
BI_DA+
TX+
L2
BI_DA-
TX-
L3
BI_DB+
RX+
L4
BI_DC+
N.C.
L5
BI_DC-
N.C.
L6
BI_DB-
RX-
L7
BI_DD+
N.C.
L8
BI_DD-
N.C.
ACTLED
Network acitivity LED indicator
Flashing: Data transmission
Off: No data acitivity
LILED
Speed indicator LEDs
Orange: 1000Mbps
Green: 100Mbps
Off: 10Mbps
2.2.4 VGA
VGA
Pin
Signal
Pin
Signal
5
1
10
11
15
6
1
Red
2
Green
3
Blue
4
N.C.
5
GND
6
DETECT
7
GND
8
GND
9
+5V
10
GND
11
N.C.
12
DDC DATA
13
Horizontal Sync
14
Vertical Sync
15
DDC CLK
