Chapter 3 AMI BIOS Function
3-3

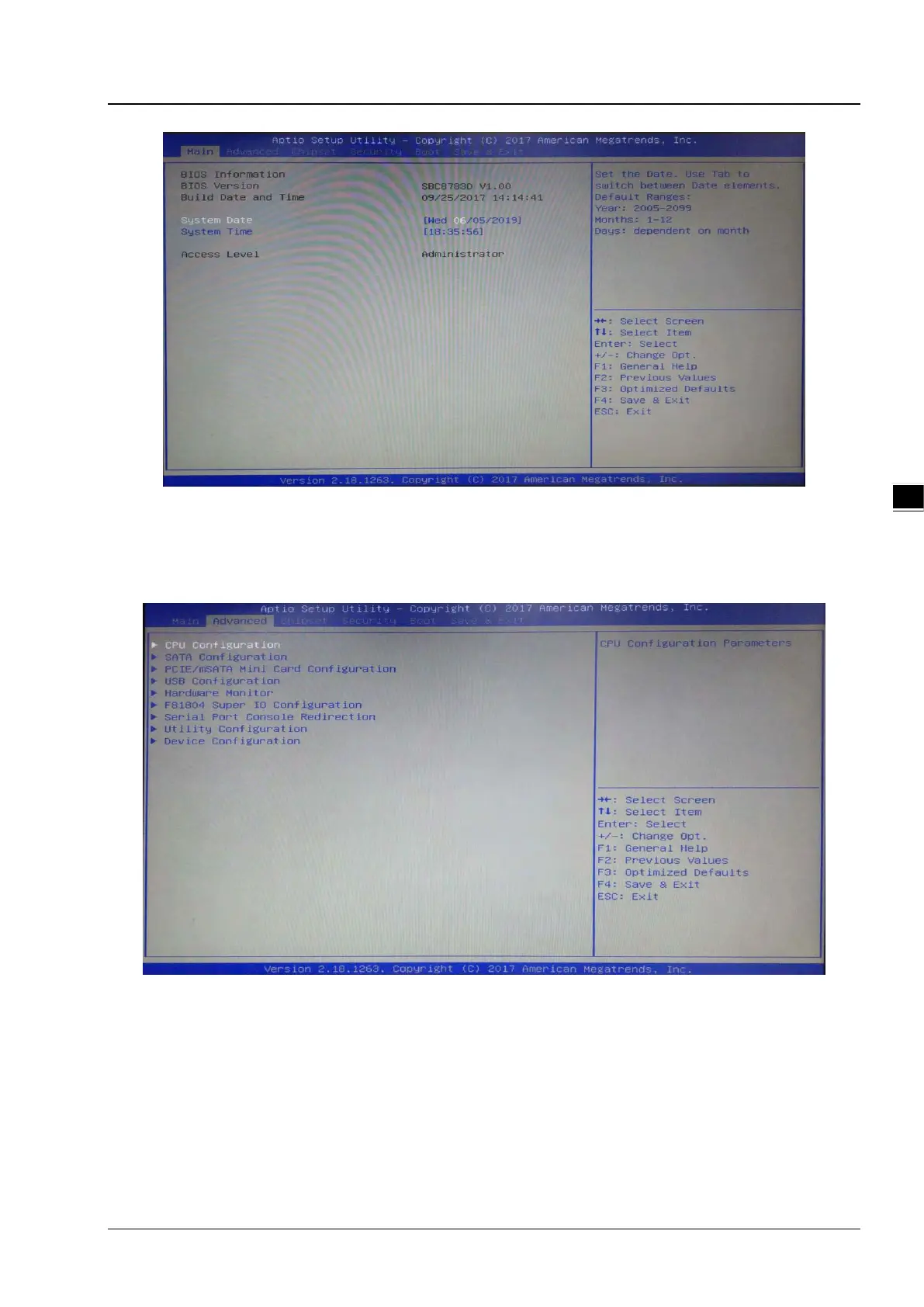

3.4 Advanced menu
The menu contains monitoring of CPU temperature, output voltage of the board; displays hardware
parameters which includes CPU, memory, USB and COM.
CPU Configuration
SATA Configuration
PCIe/mSata Mini Card Configuration: mini PCIe card slot available
USB Configuration
Hardware Monitor
F81804 Super IO Configuration: include COM port type setting
Utility Configuration
Device Configuration: include DIO pin type setting
