Chapter 6 Control TerminalsCP2000
6-5

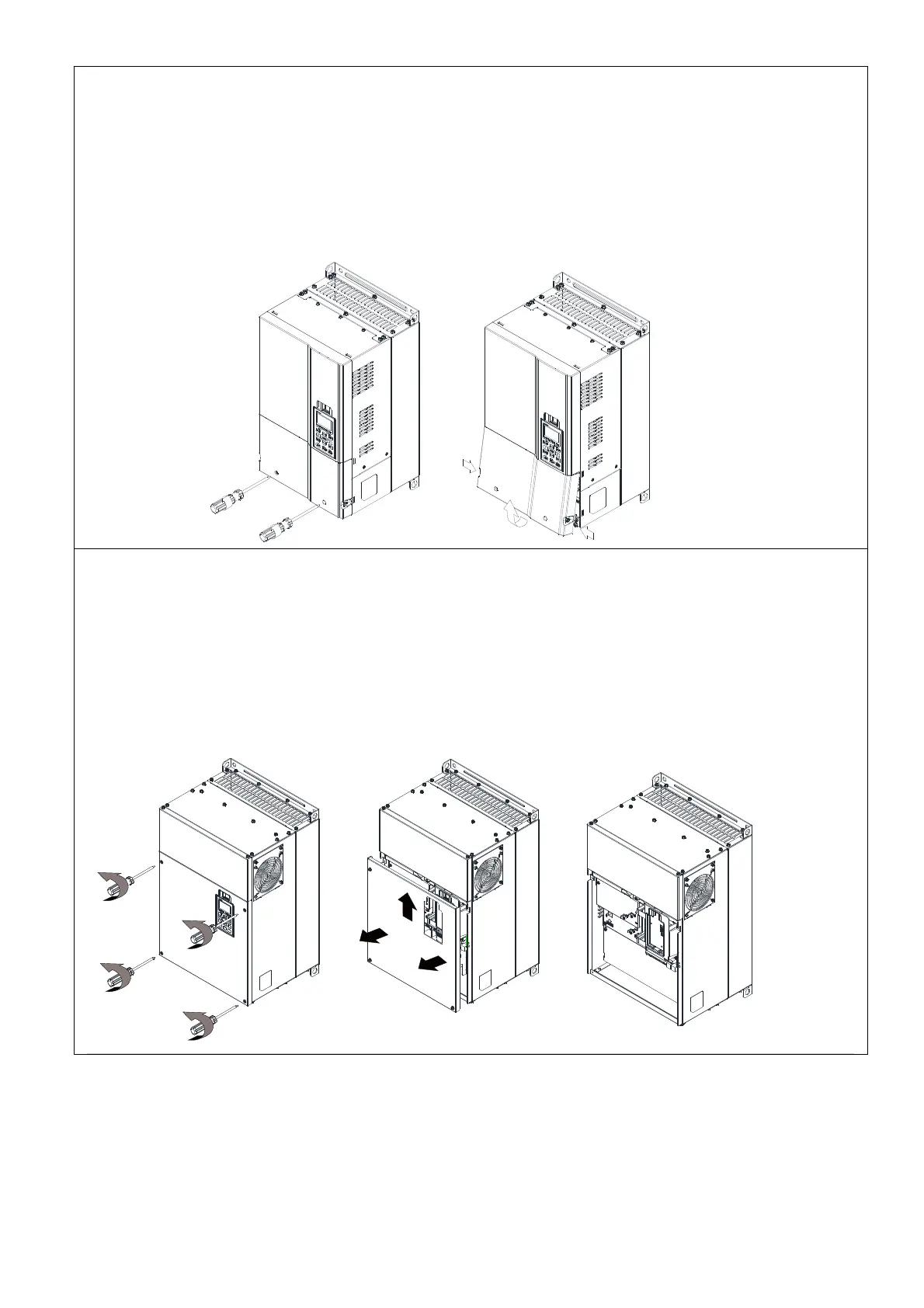

Frame D0 & D
Applicable models:
VFD450CP43S-00; VFD550CP43S-00; VFD450CP43S-21; VFD550CP43S-21; VFD370CP23A-00/-21;
VFD450CP23A-00/-21; VFD750CP43B-00/-21; VFD900CP43A-00/-21; VFD450CP63A-00/-21;
VFD550CP63A-00/-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Loosen the screws and press the tabs on both sides to remove the cover.
Figure 6-8
Frame E
Applicable models:
VFD550CP23A-00/-21; VFD750CP23A-00/-21; VFD900CP23A-00/-21; VFD1100CP43A-00/-21;
VFD1320CP43B-00/-21; VFD750CP63A-00/-21; VFD900CP63A-00/-21; VFD1100CP63A-00/-21;
VFD1320CP63B-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-9
