Chapter 6 Control TerminalsCP2000
6-7
Frame H
Applicable models:
VFD3150CP43A-00; VFD3550CP43A-00; VFD4000CP43A-00; VFD5000CP43A-00; VFD5600CP43A-00;
VFD6300CP43A-00; VFD3150CP43C-00/-21; VFD3550CP43C-00/-21; VFD4000CP43C-00/-21;
VFD5000CP43C-00/-21; VFD5600CP43C-21; VFD6300CP43C-21
Screw torque: 14–16 kg-cm / [12.15–13.89 lb-in.] / [1.4–1.6 Nm]

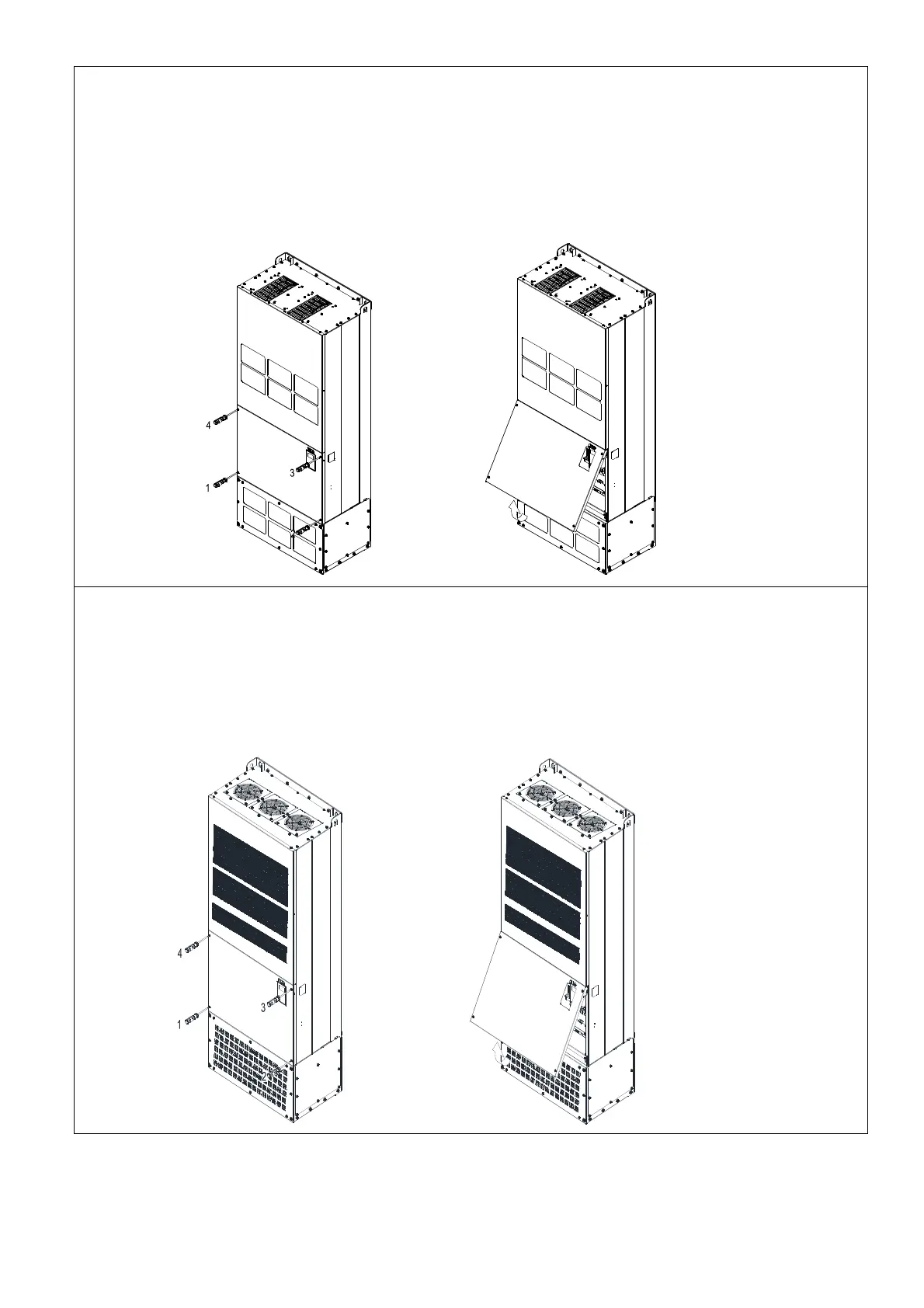

To remove the cover, lift it slightly and pull outward
Figure 6-12
690V Frame H
Applicable models:
VFD4000CP63A-00/-21; VFD4500CP63A-00/-21; VFD5600CP63A-00/-21; VFD6300CP63A-00/-21
Screw torque: 14–16 kg-cm / [12.15–13.89 lb-in.] / [1.4–1.6 Nm]
To remove the cover, lift it slightly and pull outward
Figure 6-13
