Chapter 1 IntroductionCP2000
1-9
Frame B
VFD075CP23A-21; VFD110CP23A-21; VFD150CP23A-21; VFD110CP43B-21; VFD150CP43B-21;
VFD185CP43B-21; VFD110CP4EB-21; VFD150CP4EB-21; VFD185CP4EB-21; VFD055CP53A-21;
VFD075CP53A-21; VFD110CP53A-21; VFD150CP53A-21
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail A
See Detail B

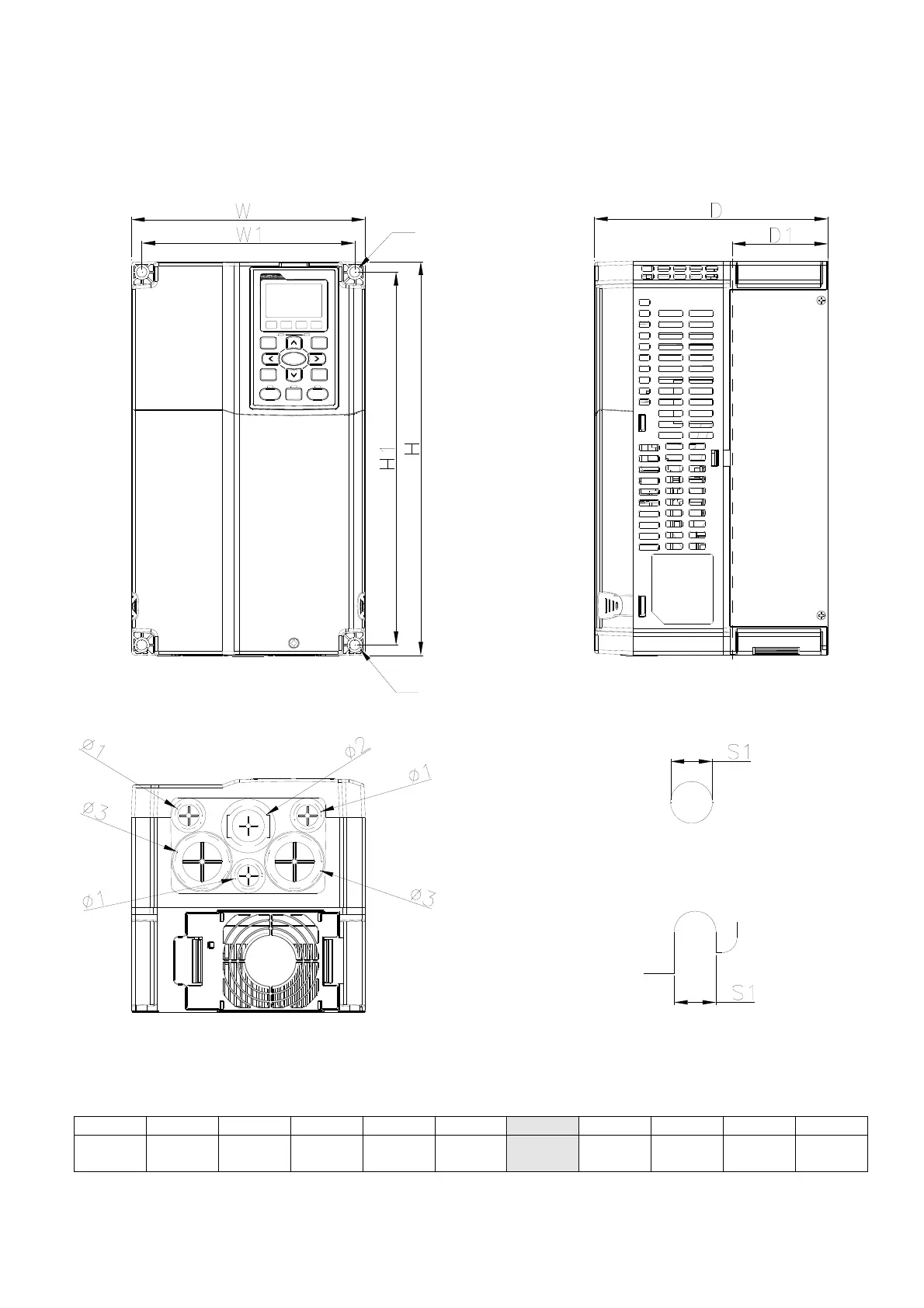

Figure 1-15
Unit: mm [inch]
Frame W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
B
190.0
[7.48]
320.0
[12.60]
190.0
[7.48]
173.0
[6.81]
303.0
[11.93]
77.9
[3.07]
8.5
[0.33]
22.2
[0.87]
34.0
[1.34]
43.8
[1.72]
D1*: Flange mounting
See Detail
A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)
