Delta KPC-CC01 - Page 191

Chapter 7 Optional AccessoriesCP2000
7-82

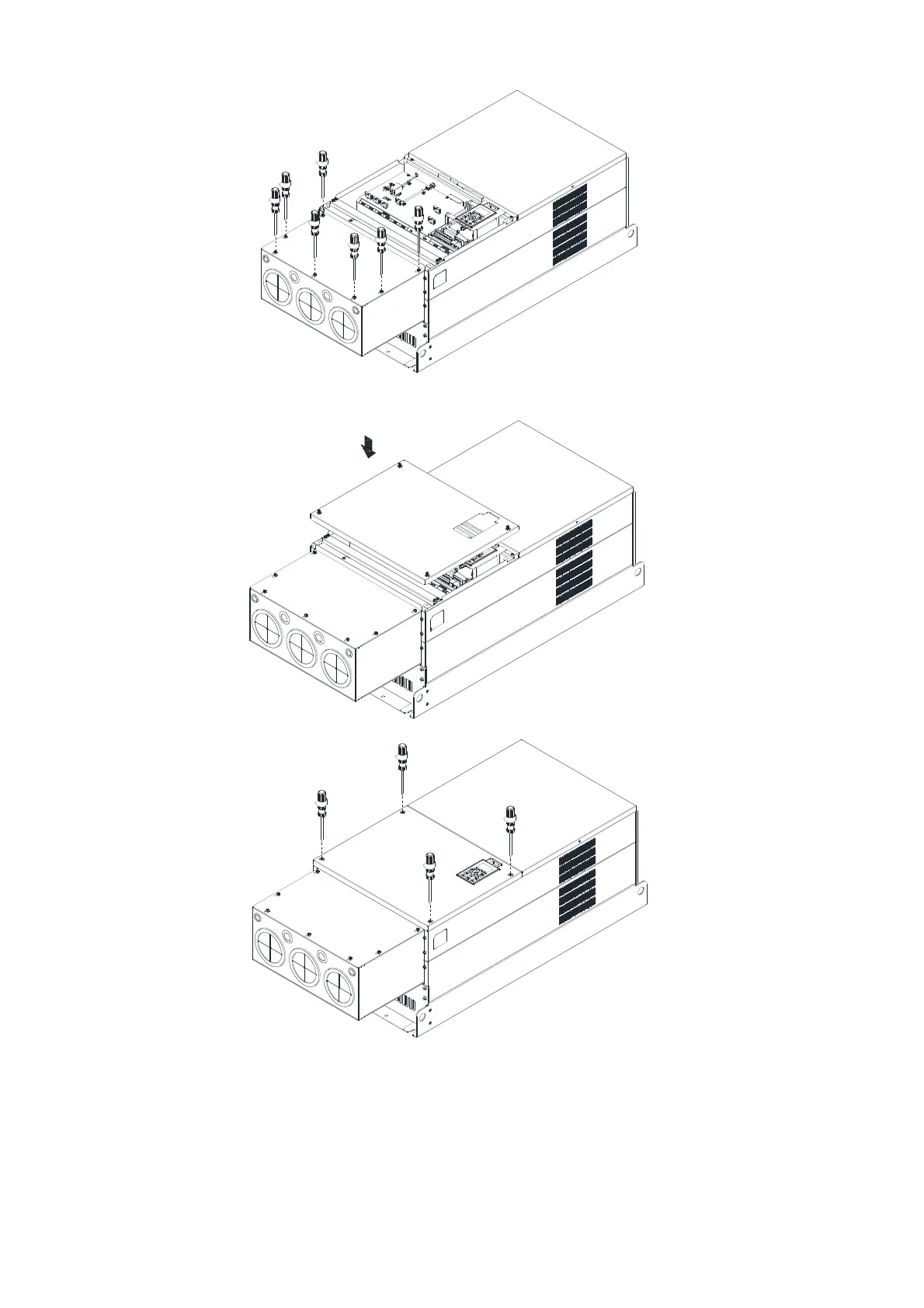

5. Fasten all the screws. Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] / [2.4–2.5 Nm]
6. Place the cover back to the top and fasten the screws (as shown in the figure).
Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] / [1.2–1.5 Nm]
