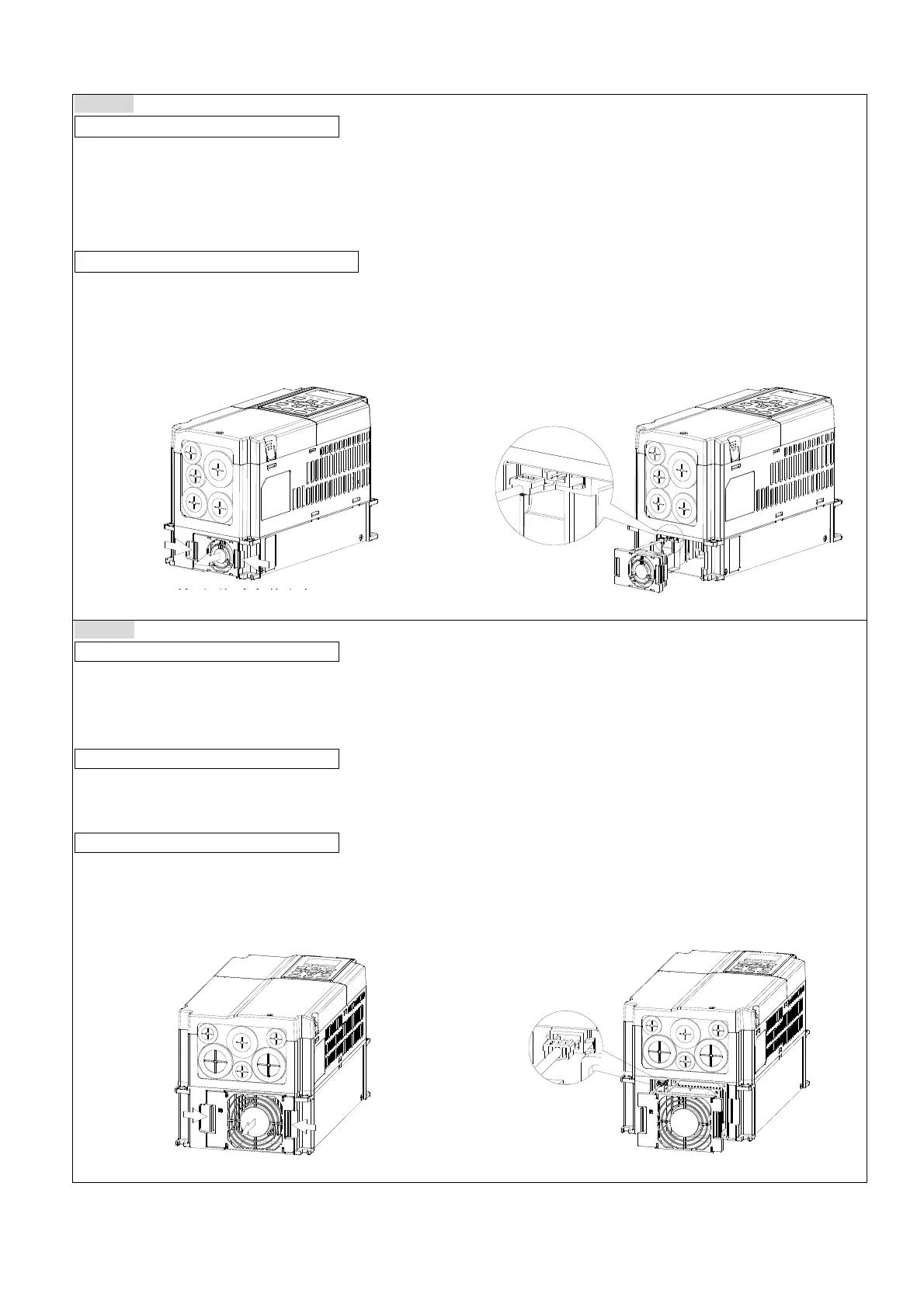

 Fan Removal
Frame A
Model『MKC-AFKM』: Heat Sink Fan
Applicable model
VFD022CP23A-21; VFD037CP23A-21; VFD055CP23A-21; VFD022CP43B-21; VFD022CP4EB-21;
VFD037CP43B-21; VFD037CP4EB-21; VFD040CP43A-21; VFD040CP4EA-21; VFD055CP43B-21;
VFD055CP4EB-21; VFD015CP53A-21; VFD022CP53A-21; VFD037CP53A-21
Model『MKCB-AFKM2』: Heat Sink Fan
Applicable model
VFD075CP43B-21; VFD075CP4EB-21
1. Refer to Figure 1, press the tabs on both side of the
fan to successfully remove the fan.
Figure 1
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 2
Frame B
Model『MKC-BFKM1』Heat Sink Fan
Applicable model
VFD075CP23A-21; VFD110CP43B-21; VFD110CP4EB-21; VFD055CP53A-21; VFD075CP53A-21;
VFD110CP53A-21; VFD150CP53A-21
Model『MKC-BFKM2』Heat Sink Fan
Applicable model
VFD110CP23A-21; VFD150CP43B-21; VFD150CP4EB-21; VFD185CP43B-21; VFD185CP4EB-21
Model『MKC-BFKM3』Heat Sink Fan
Applicable model
VFD150CP23A-21
1. Refer to Figure 1, press the tabs on both side of the
fan to successfully remove the fan.
Figure 1
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 2
